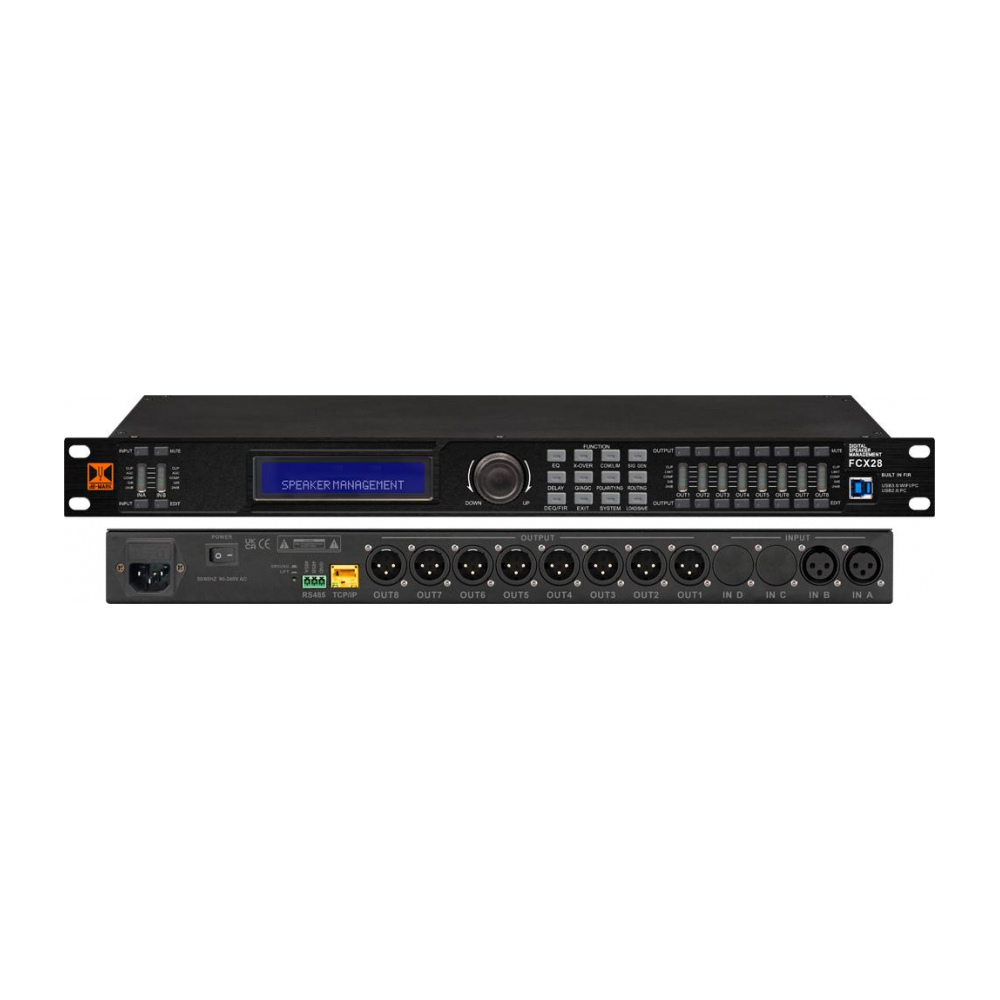

dB-Mark FCX28 - 2-in 8-out Digital Active Crossover
- FCX Series - next-generation digital active crossovers with FIR filter capability
- High-performance 64-bit DSP running at 1.3 GHz with dedicated core board
- Supports both IIR and FIR filter processing for precision phase alignment and linear response
- FIR filters ideal for time alignment, driver phase correction, and achieving studio-level accuracy in live sound
- FIR and IIR filters can be combined for maximum flexibility in system tuning
- Parametric EQ, high/low shelf, and all-pass filters available on all channels
- Adjustable crossovers (12-48 dB per octave) with Linkwitz-Riley, Butterworth, or Bessel curves
- Dynamic EQs, noise gate, compressor, and AGC on input channels
- Compressor, peak limiter, and delay (ms / m / ft) on output channels
- Full matrix routing - any input can be sent to any output
- Channel linking for convenient multi-channel editing
- ADC: ES9842PRO x2 - 128 dB dynamic range, -120 dB THD N
- DAC: ES9018K2M x4 - 127 dB dynamic range, low-jitter design
- Op Amps: NJM5534 and TI OPA1678/OPA1679 for ultra-low distortion and clean signal path
- 32-bit audio path with 24-bit 96 kHz A/D and D/A converters
- USB 2.0/3.0, RS485, and Ethernet connectivity for PC or network control
- Operate via front panel, dedicated Windows software, or built-in web interface
- 30 user presets can be stored, recalled, or backed up via USB
- Password protection for partial or full system lockout
- Input/output LEDs for level, mute, compressor, limiter, and clip indication
- 2x24 character blue back-lit LCD display
- Power: 110 / 220 V AC 50/60 Hz < 25 W
- Weight: 5.25 kg - Dimensions: 562 x 325 x 98 mm
This product appears to be unavailable. Please contact us if you require this product, and we will make further enquiries or look for an equivalent model..
Detailed specifications unavailable, please EMAIL the sales office for additional information.
