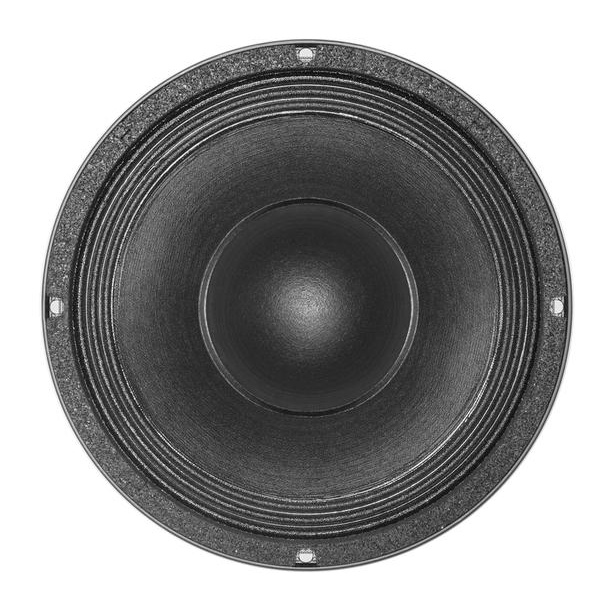

B & C 10NDL88 - 500W 8 Ohm Loudspeaker
SPL: 96.0dB Xmax: 8.1mm

Product Code: BAC10NDL88A | Brand: B & C
B & C 10NDL88 - 500W 8 Ohm Loudspeaker

B & C 10NDL88 - 500W 8 Ohm Loudspeaker B & C 10NDL88 - 500W 8 Ohm Loudspeaker B & C 10NDL88 - 500W 8 Ohm Loudspeaker B & C 10NDL88 - 500W 8 Ohm Loudspeaker
£217.96
£181.63 ex VAT
2-3 £211.42 ea.4-7 £207.06 ea.8+ £202.70 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 months
Usually available in
3-5 months
£8.32 DELIVERY to mainland UK.
B & C 10NDL88 - 500W 8 Ohm Loudspeaker



Click here to request product information for this item

Technical specifications


  • Nominal Diameter: 250 mm (10.0 )
  • Overall Diameter: 261 mm (10.28 )
  • Bolt Circle Diameter: 245 mm (9.65 )
  • Baffle Cutout Diameter: 230.0 mm (9.06 )
  • Overall Depth: 128 mm (5.04 )
  • Flange/Gasket Thickness: 15 mm (0.59 )
  • Impedance: 8 ohm
  • Minimum Impedance: 6.3 ohm
  • Program Power: 1000 W
  • Power: 500 W
  • Sensitivity: 96.0 dB
  • Frequency Range: 61 Hz
  • Voice Coil Diameter: 88 mm (3.5 )
  • Voice Coil Material: Aluminium
  • Voice Coil Former: Glass Fibre
  • Voice Coil Depth: 21.7 mm (0.85 )
  • Magnetic Gap Depth: 11.0 mm (0.43 )
  • Cone Shape: Curvilinear
  • Cone Treatment: WP Waterproof Front Side
  • Surround Type: Triple Roll
  • Spider: Double Silicone
  • Pole Design: T-Pole
  • Flux Density: 1.05 T
  • Driver Displacement Volume: 1.5 L
  • Recommended Enclosure: 20.0
  • Recommended Tuning: 70


Thiele and small parameters


  • Resonance (Fs) - 61 Hz
  • DC Resistance (Re) - 5.1 Ohm
  • Electrical Q (Qes) - 0.26
  • Mechanical Q (Qms) - 7.3
  • Total Q (Qts) - 0.25
  • Compliance Equivalent Volume (Vas) - 18.4 L
  • Diaphragm Area (Sd) - 320.0 cm2
  • Reference Efficiency (Eta Zero) - 1.59 %
  • Maximum Linear Excursion (Xmax) - 8.1 mm
  • Xvar (Xvar) - 7.5
  • Moving Mass - System (Mms) - 53.5 g
  • Force Factor (BL) - 20.0 Tm
  • Voice Coil Inductance (Le) - 1.18 mH
  • Efficiency Bandwidth Product (EBP) - 234

Shipping Information


  • Net Weight: 4.6 kg
  • Shipping Weight: 5.2 kg
  • Shipping Box: 295x314x175
  • Multipack Quantity: 1
