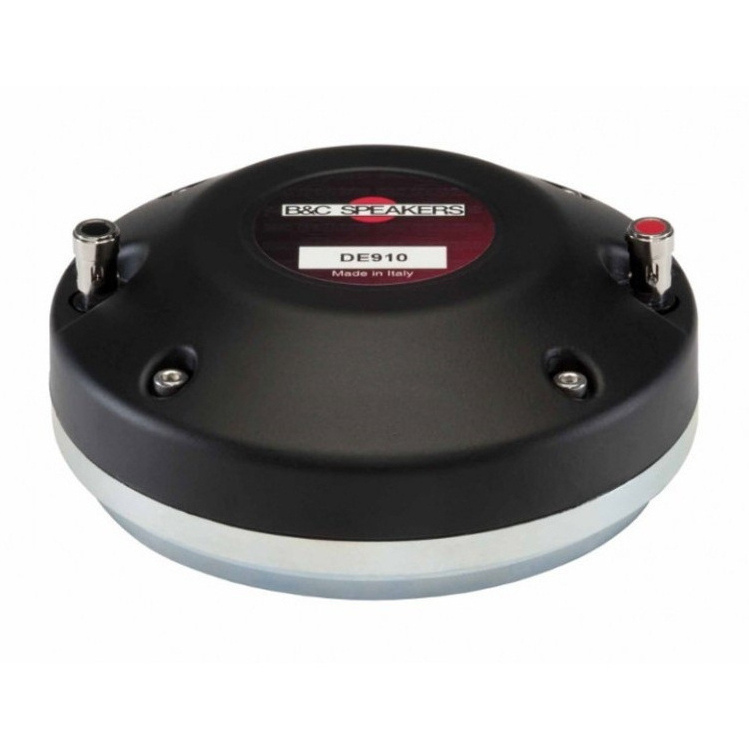

B&C DE910 80W 8 Ohm 1.3" Neodymium Bolt On Compression Driver
- 160 W continuous program power capacity
- 1.3" horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Composite Polyester/Titanium diaphragm
- 500-18000 Hz response
- 109.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
This is NOT a stock item, we can usually order this in and have stock within 90-94 working days. If you require this item urgently, please contact a member of staff to confirm availability.
Specifications:
Mounting And Shipping Info:
- Throat diameter 33 mm (1.3 in)
- Nominal impedance 8 ohms
- Minimum impedance 8.3 ohms
- Nominal power handling 80 W
- Continuous power handling 160 W
- Sensitivity (1W/1m) 109.5 dB
- Frequency range 1 - 18 kHz
- Recommended crossover 1.2 kHz
- Voice coil diameter 75 mm (3.0 in)
- Winding material Aluminium
- Inductance 0.14 mH
- Diaphragm material Titanium
- Flux density 2.05 T
- Magnet material Neodymium Ring
Mounting And Shipping Info:
- Four M6 holes 90 degrees apart on 102 mm (4 in) diameter
- Overall diameter 131 mm (5.15 in)
- Depth 52 mm (2.0 in)
- Net weight 2.6 kg (5.7 lb)
- Replacement Diaphragm MMD3B8M
