dB-Mark HDX26 - 2-in 6-out Digital Active Crossover from dBMark £445.00

dBMark :: dBMark System Controllers :: dBMark Digital Lms

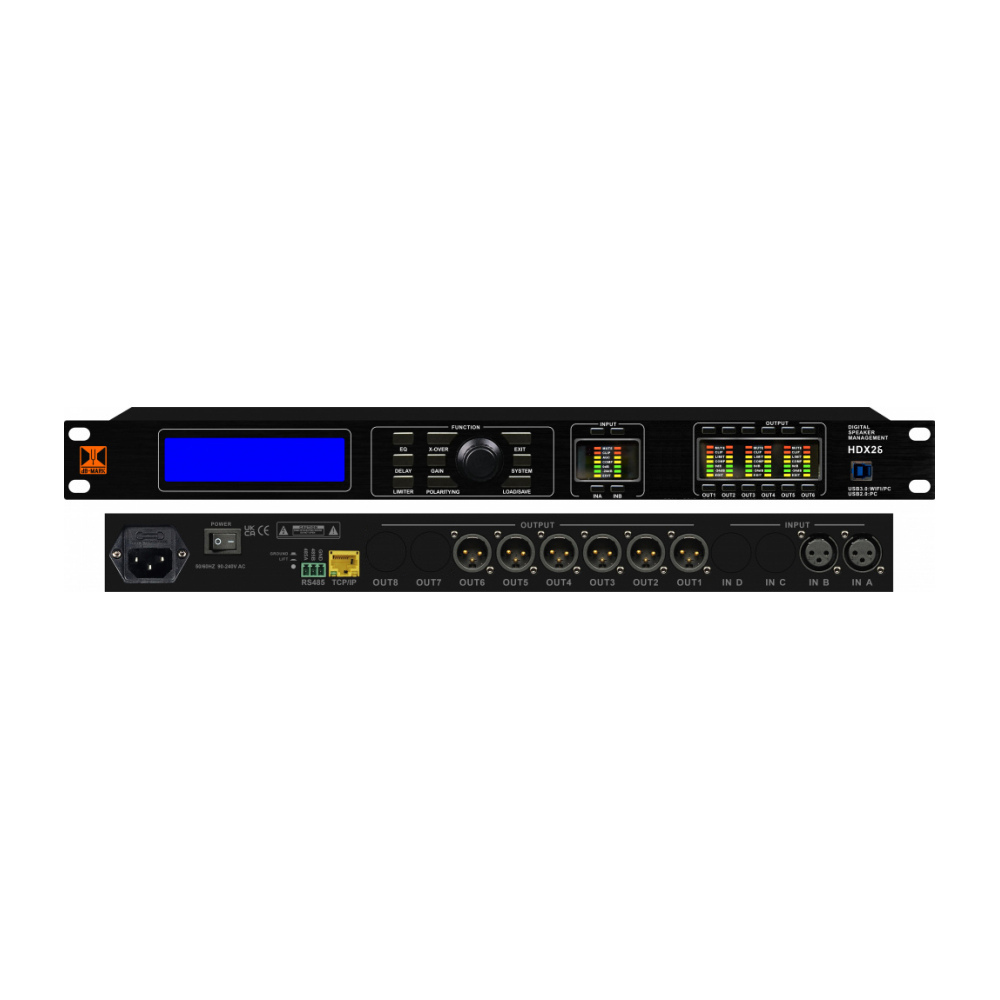

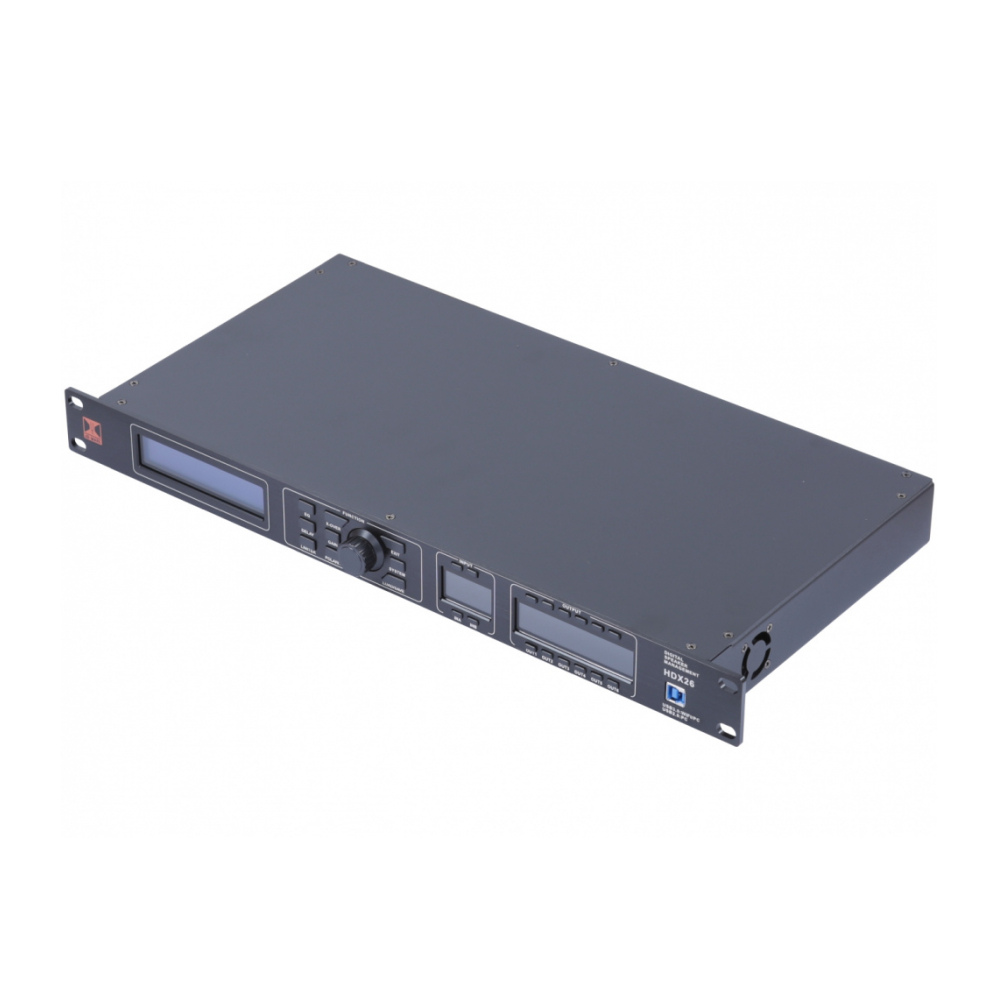

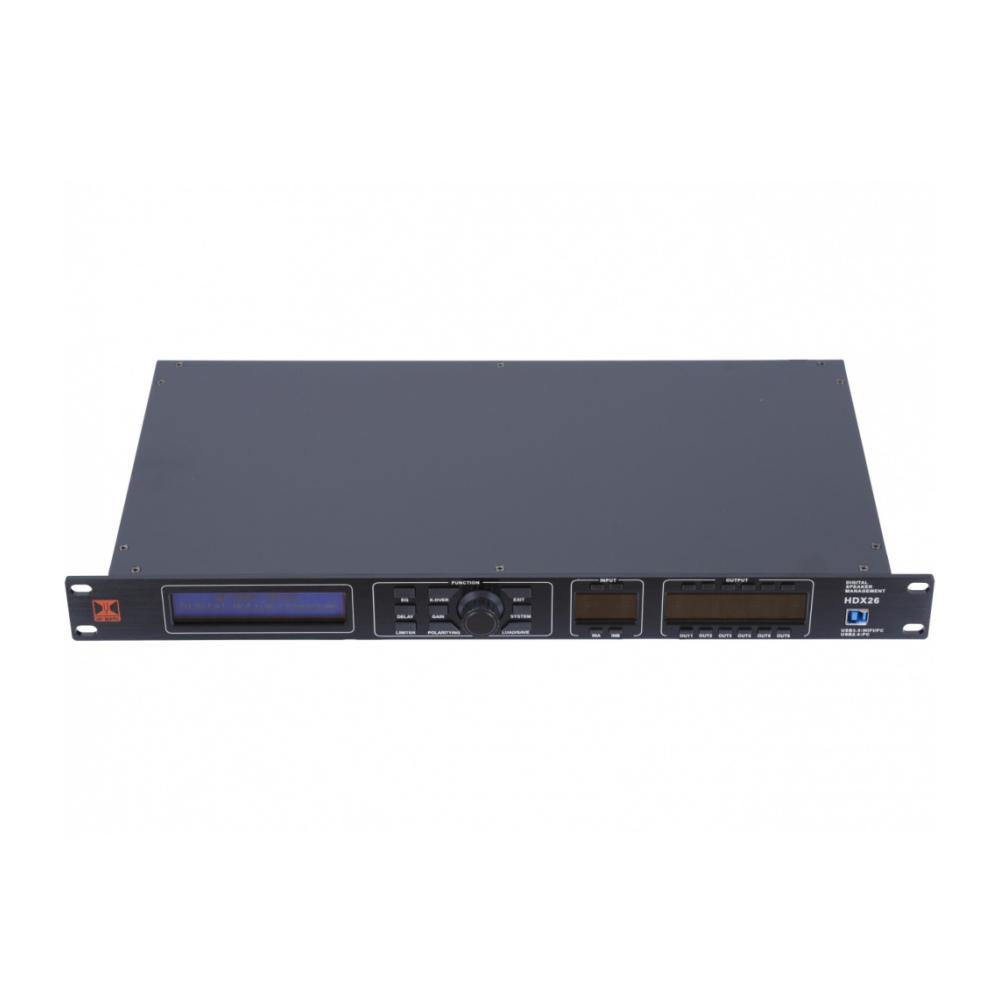

dB-Mark HDX26 - 2-in 6-out Digital Active Crossover
2 input 8 output Pro Speaker Management System Controller

Product Code: DBMHDX26 | Brand: dBMark

£445.00
£370.83 ex VAT

On Order
ETA Unknown

Request stock Info

£2.10

DELIVERY to mainland UK.

dB-Mark HDX26 - 2-in 6-out Digital Active Crossover

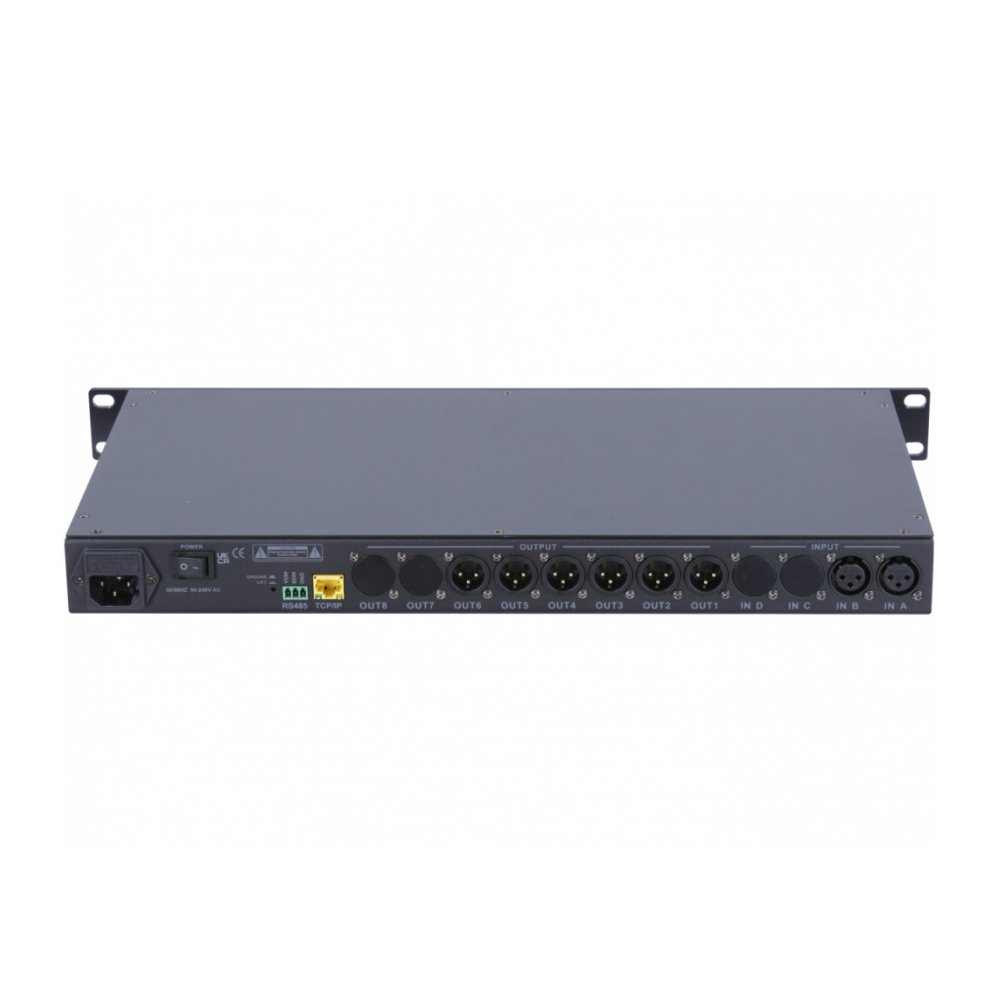

2 balanced inputs and 6 balanced outputs on XLRs.
HDX Series - with audiophile quality ADC and DAC with THD: <0.002% and SNR >117dB
All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters.
Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave.
Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass.
Each input has 2 dynamic EQs, noise gate, and adjustable compressor.
Automatic Gain Control available on input channels.
Configurable compressor and peak limiter on every output channel.
Delay on all channels, adjustable in milliseconds, metres or feet.
Full matrix mixing, route any input to any output.
All input and output channels can be individually muted.
Channels can be linked for convenience to allow editing of two or more channels at a time
32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters.
USB 2.0/3.0, RS485 connections are provided for PC control of multiple devices.
Operation possible using the front panel controls, dedicated Windows app or the built-in web interface
30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB.
Password protection for partial or full lock of system settings.
LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip.
2x24 character dot-matrix blue back-lit LCD display.
Gross weight: 5.25kg
Shipping Dimensions: 562mm x 325mm x 98mm
Power 110V /220V AC 50/60Hz <25W
DAC Chip: ES9018K2M : high performance with 127dB dynamic range and jitter elimination
ADC Chip: ES9842PRO : 128dB dynamic range, and -120dB THD N with jitter elimination - used in audiophile grade equipment and studio interfaces where ultra-high resolution is paramount
DSP Chip: TMS320C6722 capable of up to 1500 MFLOPS
Op Amps: Texas Instruments OPA1678 and OPA1679 offering ultra low THD for hi-fi applications

Please click here to visit www.dbmark.co.uk downloads page for all relevant software

Detailed specifications unavailable, please EMAIL the sales office for additional information.
