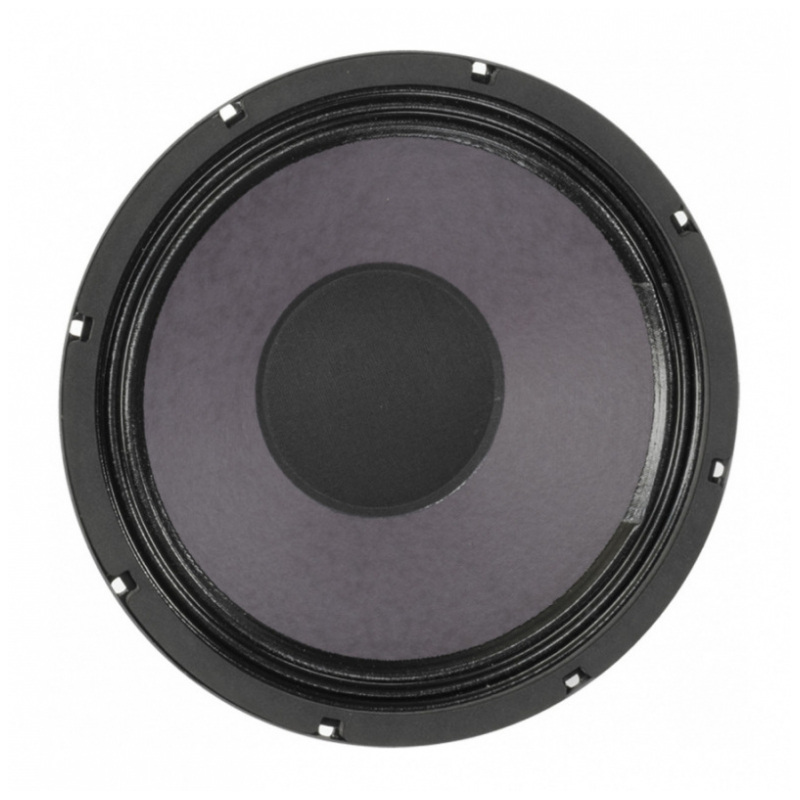

Meet the Eminence Ragin Cajun 10" Guitar Speaker - the secret sauce to giving your tunes a spicy kick! This bad boy brings a dose of Americana to your sound, rocking a loud, touch-sensitive vibe with a sweet bell-like top end. And boy, does it pack a punch - a 30 oz. ceramic magnet, 75 watts at 8 ohms, and a sensitivity of 100dB!
Switching out the stock speaker in a Vox Valvatronics VT40 was a game-changer for one user. The Ragin Cajun delivered a warm sound, waving goodbye to the jangly Brit vibes. Plus, it handles power like a champ - a clear upgrade from the Vox 'Original' sound.
If you're jamming with a Fender Frontman 25R, the Ragin Cajun is your ticket to tonal paradise. Quick installation- turned a practice amp into a band practice beast. Crystal-clear tones, loud as your neighbor's yappy dog - and construction quality that's rock-solid. Major thumbs up from the upgrade squad!
Another happy camper upgraded a Fender Frontman 25R. The stock speaker was a vibe killer at high volumes, but enter the Ragin Cajun, and it's like the amp did a 180. Cleans shine, gain gets bluesy, and volume? Prepare to be amazed - it's like your 25-watt amp hit the gym and came out sounding like a 50-watt legend. Club gigs? No sweat for the Cajun.
But hold up, the Ragin' Cajun isn't just a replacement speaker; it\'s a tone magician. Tossed into a 1973 Ampeg GT10, it became the touch-sensitive maestro, dancing to various music styles and amp vibes. Bad tone? Not on its watch. The verdict: the Cajun isn't just a speaker; it's a musical sidekick, making everything sound better.
- Nominal Basket Diameter 10", 254mm
- Nominal Impedance* 8 ohms
- Power Rating**
- Watts 75W
- Music Program N/A
- Resonance 84Hz
- Usable Frequency Range 70Hz - 5kHz
- Sensitivity*** 100dB
- Magnet Weight 30 oz.
- Gap Height 0.31", 7.92mm
- Voice Coil Diameter 1.5", 38.1mm
Thiele & Small Parameters
- Resonant Frequency (fs) 84Hz
- DC Resistance (Re) 7.3
- Coil Inductance (Le) 0.39mH
- Mechanical Q (Qms) 10.8
- Electromagnetic Q (Qes) 0.68
- Total Q (Qts) 0.64
- Compliance Equivalent Volume (Vas) 34.1 liters / 1.2 cu.ft.
- Peak Diaphragm Displacement Volume (Vd) 18cc
- Mechanical Compliance of Suspension (Cms) 0.18mm/N
- BL Product (BL) 11.5 T-M
- Diaphragm Mass Inc. Airload (MMs) 20 grams
- Efficiency Bandwidth Product (EBP) 156
- Maximum Linear Excursion (Xmax) 0.5mm
- Surface Area of Cone (Sd) 366.1 cm2
- Maximum Mechanical Limit (Xlim) N/A
Mounting Information
- Recommended Enclosure Volume
- Sealed Acceptable
- Vented Acceptable
- Driver Volume Displaced 66.9 cu.in. / 1.1 liters
- Overall Diameter 10.11", 256.8mm
- Baffle Hole Diameter 9.13", 231.8mm
- Front Sealing Gasket Fitted as standard
- Rear Sealing Gasket Fitted as standard
- Mounting Holes Diameter 0.23", 5.7mm
- Mounting Holes B.C.D. 9.6", 243.8mm
- Depth 4.3", 109mm
- Net Weight 6.4 lbs, 2.9 kg
- Shipping Weight 8.2 lbs, 3.7 kgs
Materials of Construction
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Ferrite magnet
- Core Details Non-vented core
- Basket Materials Pressed steel basket
- Cone Composition Paper Cone
- Cone Edge Composition Paper cone edge
- Dust Cap Composition Zurette dust cap
5+ IN STOCK
5+ IN STOCK| Other Eminence products similar to Eminence - Ragin Cajun 10" 8 ohm Guitar Speaker: |
|
If you find 'Eminence - Ragin Cajun 10 inch 8 ohm Guitar Speaker' at a lower price from an authorised UK dealer, tell us and we'll aim to match it. Request a price match. Terms & Conditions.
Eminence - Ragin Cajun 10" 8 ohm Guitar Speaker PDF data sheet (1 Mb)
View Eminence website for more information for Eminence RAGIN CAJUN
