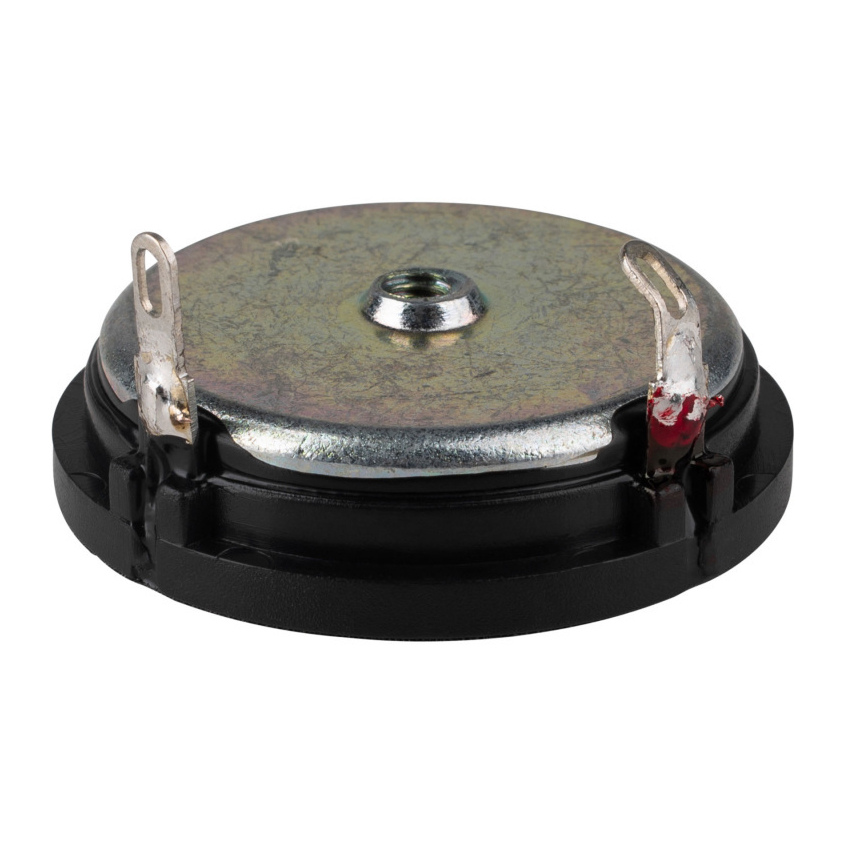

Eminence SD28 20W 4 Ohm Soft Dome Tweeter

Product Code: EMISD28 Brand: Eminence Model: SD28
Eminence SD28 20W 4 Ohm Soft Dome Tweeter
HOT DEAL:
£13.33
£13.33 ex VAT
SRP £16.84
Decrease Increase
Quantity Discounts
2-3£16.54 ea.
4-7£16.29 ea.
8+£15.95 ea.
8+
IN STOCK
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Eminence SD28 20W 4 Ohm Soft Dome Tweeter

The Eminence SD28 soft-dome tweeter offers unmatched performance to value in an ultra-compact design. With an overall diameter of less than 1.5 inches, this 4 ohm silk dome tweeter delivers smooth high frequency reproduction from 1.5 to 20 kHz. Perfect for car audio, ATV, RV, or any other application where space is limited.


SPECIFICATION:

  • Type N/A
  • Throat Size ", mm
  • Dispersion 60deg
  • Power Rating 20W (EIA)
  • Nominal impedance 4 ohms
  • Minimum impedance 3.5 ohms @ 4.4 kHz
  • Sensitivity 92.5 dB
  • Resonance 1.5 kHz
  • Usable Frequency Range 1500 Hz - 20 kHz
  • Low Rec. Crossover 1.5 kHz
  • Overall diameter 37.6mm
  • Baffle cutout diameter 33.6mm
  • Cut Out Rear mount,
  • Weight 0.1lbs, 0.05kg
  • Material N/A
