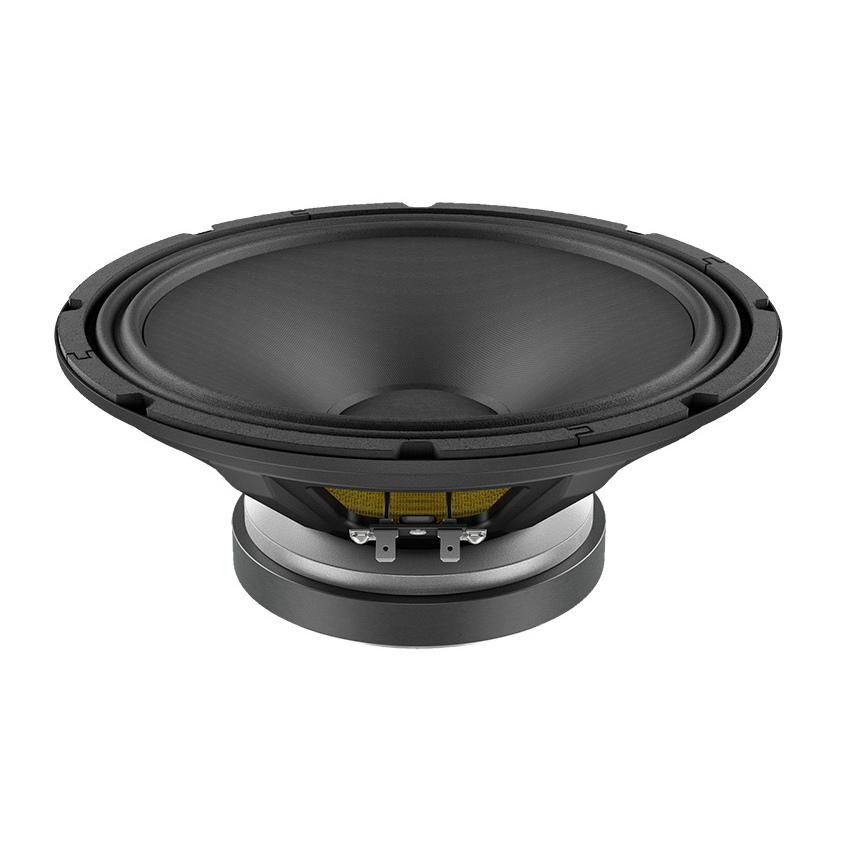

Lavoce WSF102.00 - 10" 175W 8 Ohm Loudspeaker **DEMO STOCK**
SPL: 96.5dB Fs: 65Hz Xmax: 5.3mm

Product Code: GRD2090 | Brand: Lavoce
Lavoce WSF102.00 - 10 inch 175W 8 Ohm Loudspeaker **DEMO STOCK**

Lavoce WSF102.00 - 10 inch 175W 8 Ohm Loudspeaker **DEMO STOCK**  Lavoce WSF102.00 - 10 inch 175W 8 Ohm Loudspeaker **DEMO STOCK**  Lavoce WSF102.00 - 10 inch 175W 8 Ohm Loudspeaker **DEMO STOCK**
£55.54
£46.28 ex VAT
Decrease
Login to see JAM Club pricing
Not a member? Join Now
1
LIMITED STOCK
£11.22 DELIVERY to mainland UK.
Lavoce WSF102.00 - 10" 175W 8 Ohm Loudspeaker **DEMO STOCK**

This component has seen light use for testing and/or prototyping. We frequently test and measure products to help select the best product for a specific application. Once the testing it complete, we make surplus products available at a discounted price. Full warranty still applies on all demo stock unless otherwise specified.
Packaging: Complete with original box, virtually as new.
Full Manufacturer's 12 Month Warranty.

Key features



- 2 INCH CCAW VOICE COIL
- 96,5 dB/SPL SENSITIVITY
- 350 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

Technical specifications


  • Nominal Diameter: 250 mm (10in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 5.9 Ohm
  • AES Power: 175 W
  • Program Power: 350 W
  • Sensitivity: 96.5 dB
  • Frequency Range: 60 - 4000 Hz
  • Voice Coil Material: CCAW
  • Voice Coil Former: Glass Fiber
  • Voice Coil Depth: 14.6 mm (0.57in)
  • Magnetic Gap Depth: 8 mm (0.31in)
  • Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
  • Surround Material: Polycotton
  • Chassis Material: Steel
  • Magnet Material: Ferrite
  • Magnet Dims: 140 x 60 x 17 mm
  • Driver Displacement Volume: 1.2 l (0.04ft3)
  • Recommended Enclosure: 25.7 l (0.91ft3)
  • Recommended Tuning: 70 Hz

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • DC Resistance (Re) - 5.2 Ohm
  • Resonance (Fs) - 65 Hz
  • Moving Mass - System (Mms) - 30.4 g
  • Compliance (Cms) - 0.196 mm/N
  • Force Factor (BL) - 11.62 Tm
  • Mechanical Q (Qms) - 5.73
  • Electrical Q (Qes) - 0.48
  • Total Q (Qts) - 0.45
  • Compliance Equivalent Volume (Vas) - 34.62 L
  • Voice Coil Inductance (Le) - 0.5 mH
  • Diaphragm Area (Sd) - 353 cm2
  • Reference Efficiency (Eta Zero) - 1.91 % %
  • Efficiency Bandwidth Product (EBP) - 135
  • Maximum Linear Excursion (Xmax) - 5.3 mm
  • Maximum Mechanical Excursion (Xmech) - 9.3 mm

Shipping Information


  • Net weight: 3.2 kg (7lb)
  • Multipack size (WxDxH): 300 x 300 x 148 mm (11.8 x 11.8 x 5.8in)
  • Multipack weight: 4.1 kg (9lb)
