This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

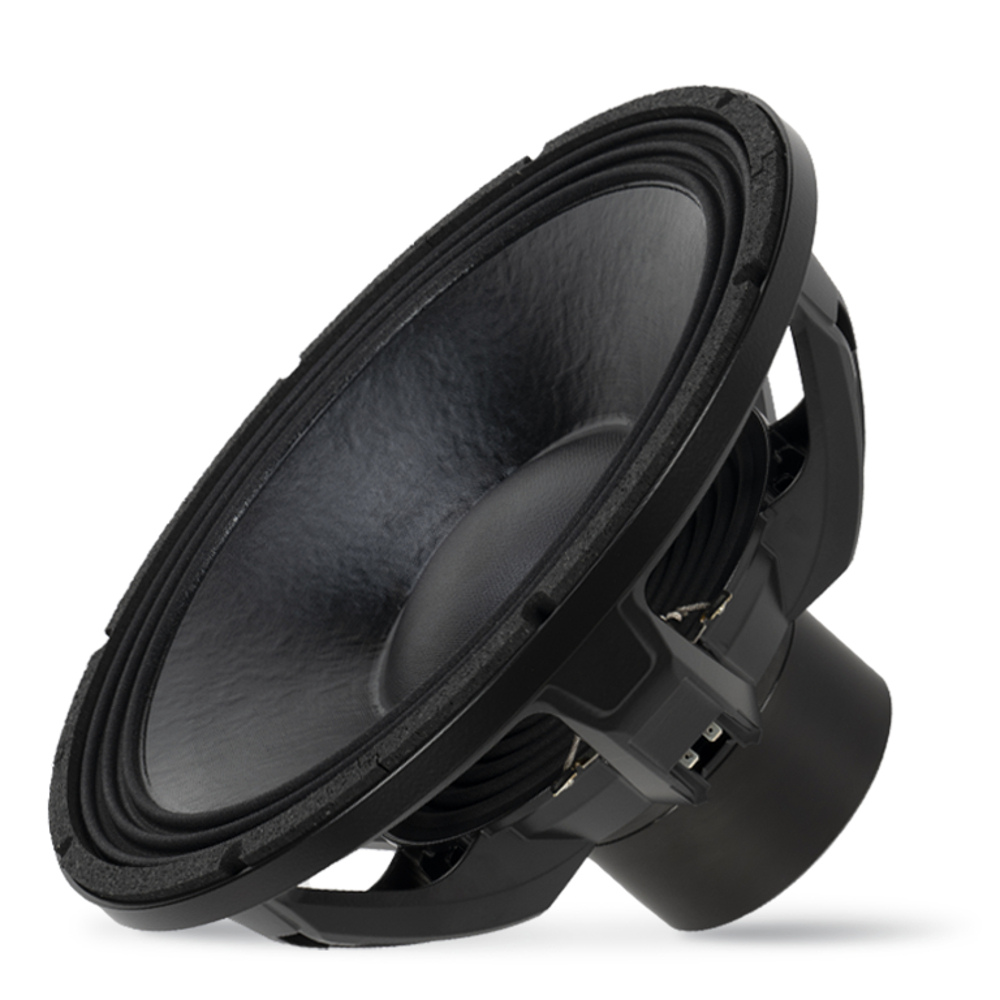

The LN19S400 is a 19-inch extended low-frequency transducer designed with high excursion piston capabilities, perfect for vented enclosures where power and low-frequency extension are priorities. One of the key highlights of the transducer is its ultralight CCAW (copper-clad aluminium wire) voice coil, which is configured in a 4.0-inch, 4-layer inside-outside voice coil with fiberglass former material. The ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) with high power and fast acceleration capabilities. Employing a cone assembly loaded with fibres and featuring a generous triple-roll surround, the LN19S400 is engineered to decrease flux modulations and enhance transient response. The Hyper-Vented dual-forced air system enhances voice coil ventilation, effectively minimizing power compression.
Features
- 4.0-inch Inside/Outside CCAW (copper-clad aluminium wire) voice coil
- 3000 Watt continuous program power handling
- 98.5 dB Sensitivity
- 25 Hz - 1 kHz Frequency range
- Hypervented magnetic structure for minimum power compression
- Triple roll surround and exponential cone geometry
- Single aluminum demodulation ring
General specifications
- Nominal Diameter 19 inch / 483 mm
- Rated Impedance 8 ohm
- Program Power (watt) 3000 W
- Power handling capacity 1500 W
- Sensitivity 98.5 dB
- Frequency range 25 - 1000 Hz
- Effective piston diameter 410 mm / 16.14 inch
- Max. Excursion Before Damage 59 mm / 2.32 inch
- Minimum Impedance (ohm) 6.2 ohm
- Voice Coil Diameter 4.0 inch / 102 mm
- Voice Coil Winding Material Aluminium
- Voice Coil Length 42 mm / 1.65 inch
- Number of layers 4
- Kind of layers inside/outside
- Top Plate Thickness 16 mm / 0.63 inch
- Cone Design Curved
- Surround Material Polycotton
- Surround Design Triple roll
- Magnets Neodymium
- Hypervented magnetic structure Yes
- Dual-force air ventilation Yes
- Demodulation Rings material Aluminium
- Number of Demodulation Rings 1
- Spider 4
- Demodulation Ring Yes
Thiele - small parameters
- Resonance frequency (Fs) 32 Hz
- DC resistance (Re) (ohm) 4.70 ohm
- Mechanical factor 4.00 Qms
- Electrical factor 0.27 Qes
- Total factor 0.26 Qts
- Bl factor (Bl) (T x m) 32.00 T x m
- Effective moving mass (Mms) 296.0 g
- Equivalent Cas air loaded (Vas) 204.0 litres
- Effective piston area (Sd) 0.132 m2
- Max. linear excursion (Xmax) 17 mm
- Voice coil inductance @ 1kHz (Le1k) 3.40 mH
- Half-space efficiency (Eff) 2.37%
Mounting information
- Overall diameter 480 mm / 18.9 inches
- Bolt circle diameter 460-462 mm / 18.11-18.19 inch
- Bolt hole diameter 7 mm / 0.28 inch
- Front mount baffle cut-out 446 mm / 17.56 inch
- Rear mount baffle cut-out 446 mm / 17.56 inch
- Volume occupied by the driver 10 litres / 0.39 ft3
Size / Weight
- Height 232 mm / 9.13 inches
- Diameter 480 mm / 18.9 inches
- Cut out diameter 446 mm / 17.56 inches
- Weight 10.2 kg / 22.49 lbs
Shipping information
- Package Height 290 mm / 11.42 inches
- Package Width 505 mm / 19.88 inches
- Package Depth 515 mm / 20.28 inches
- Package Weight 10.9 kg / 24.03 lbs
