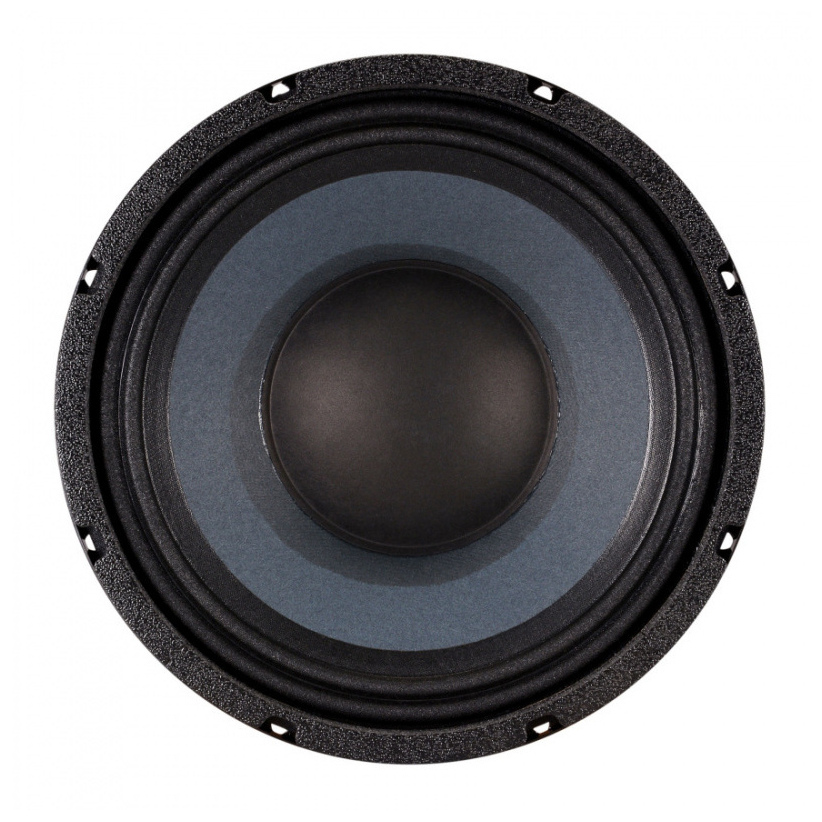

Eminence Delta 10B - 10" 350W 16 Ohm

SPL: 98.0 1W/1m Fs: 65 Hz Xmax: 3.5mm
Product Code: EMIDEL10B Brand: Eminence Model: DELTA-10B
Eminence Delta 10B - 10 inch 350W 16 Ohm
HOT DEAL:
£74.99
£74.99 ex VAT
SRP £86.16
Decrease Increase
Quantity Discounts
2-3£84.87 ea.
4-7£83.58 ea.
8+£81.85 ea.
Usually available in <br>3-4 weeks
Usually available in
3-4 weeks
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Eminence Delta 10B - 10" 350W 16 Ohm

Recommended for professional audio and bass guitar applications as a woofer/mid-bass or mid-range in vented monitors, satellites and multi-way enclosures.

Technical specifications


  • Nominal Diameter: 254 mm (10 in)
  • Overall Diameter: 256.3 mm (10.09 in)
  • Bolt Circle Diameter: 245.4 mm (9.66 in)
  • Mounting Holes Diameter: 6.4 mm (0.25 in)
  • Baffle Cutout Diameter: 233.2 mm (9.18 in)
  • Overall Depth: 108 mm (4.25 in)
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Impedance: 16 ohm
  • AES Power: 350 W
  • Program Power: 700 W
  • Sensitivity: 98 dB
  • Voice Coil Diameter: 64 mm (2.5 in)
  • Voice Coil Material: Copper voice coil
  • Voice Coil Former: Polyimide former
  • Magnetic Gap Depth: 9.5 mm (0.375 in)
  • Cone Material: Paper cone
  • Dust Cap Material: Solid composition paper dust cap
  • Surround Material: Cloth cone edge
  • Chassis Material: Pressed steel basket
  • Magnet Material: Ferrite magnet
  • Magnet Weight: 56 oz
  • Core Details: Vented core
  • Sealed Enclosure Size: 9.9-12.7 L
  • Vented Enclosure Size: 10.8-34 L


Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Resonance (Fs) - 65 Hz
  • DC Resistance (Re) - 11.6 Ohm
  • Voice Coil Inductance (Le) - 0.79 mH
  • Mechanical Q (Qms) - 8.34
  • Electrical Q (Qes) - 0.35
  • Total Q (Qts) - 0.33
  • Compliance Equivalent Volume (Vas) - 36 L
  • Peak Displacement Volume (Vd) - 62 cm3
  • Compliance (Cms) - 0.21 mm/N
  • Force Factor (BL) - 19.5 Tm
  • Moving Mass - System (Mms) - 28 g
  • Efficiency Bandwidth Product (EBP) - 186
  • Maximum Linear Excursion (Xmax) - 3.5 mm
  • Diaphragm Area (Sd) - 344.9 cm2
  • Maximum Mechanical Excursion (Xmech) - 9 mm

Shipping Information


  • Net Weight: 4.9 kg (10.8 lbs)
  • Shipping Weight: 5.44 kg (12 lbs)
