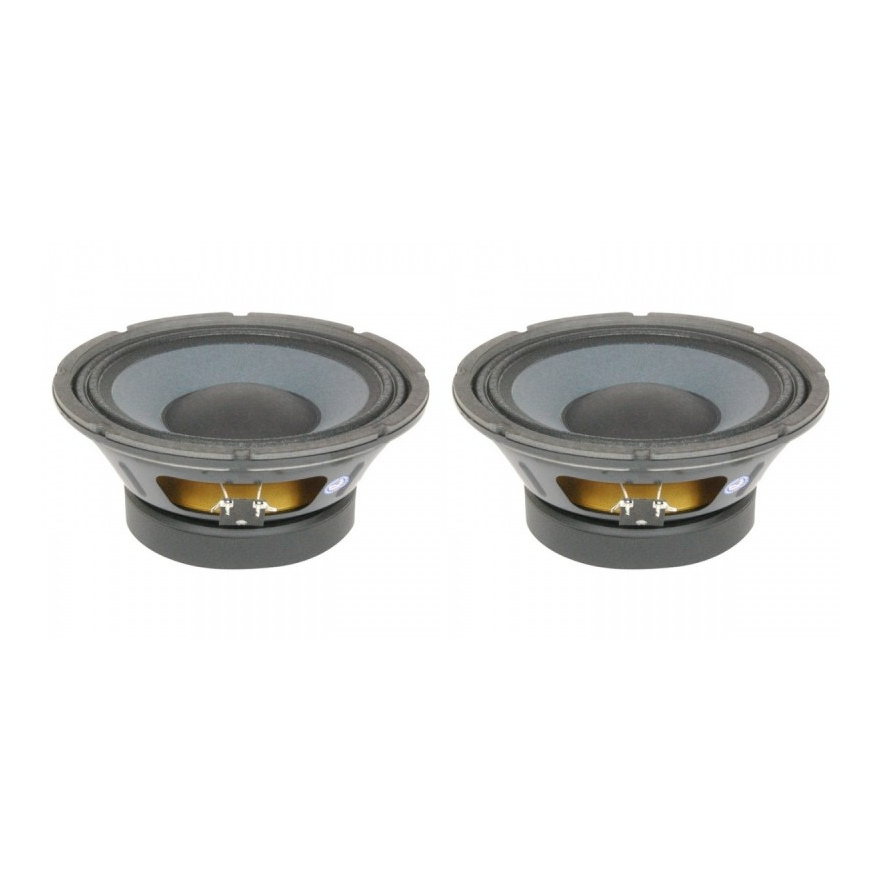

Eminence Delta 10B - 10" Speaker 350 W 16 Ohm Twin Pack

Eminence Delta 10B - 10" Speaker 350 W 16 Ohm Twin Pack

Recommended for professional audio and bass guitar applications as a woofer/mid-bass or mid-range in vented monitors, satellites and multi-way enclosures.

Specification

• Nominal Basket Diameter 10", 254mm
• Nominal Impedance* 16 ohms
• Power Rating**
• Watts 350W
• Music Program 700W
• Resonance 65Hz
• Usable Frequency Range 71Hz - 3.7kHz
• Sensitivity*** 98dB
• Magnet Weight 56 oz.
• Gap Height 0.37", 9.53mm
• Voice Coil Diameter 2.5", 63.5mm

Thiele & Small Parameters

• Resonant Frequency (fs) 65Hz
• DC Resistance (Re) 11.6
• Coil Inductance (Le) 0.79mH
• Mechanical Q (Qms) 8.34
• Electromagnetic Q (Qes) 0.35
• Total Q (Qts) 0.33
• Compliance Equivalent Volume (Vas) 36 liters / 1.27 cu.ft.
• Peak Diaphragm Displacement Volume (Vd) 62cc
• Mechanical Compliance of Suspension (Cms) 0.21mm/N
• BL Product (BL) 19.5 T-M
• Diaphragm Mass Inc. Airload (MMs) 28 grams
• Efficiency Bandwidth Product (EBP) 186
• Maximum Linear Excursion (Xmax) 1.8mm
• Surface Area of Cone (Sd) 344.9 cm2
• Maximum Mechanical Limit (Xlim) 9mm

Mounting Information

• Recommended Enclosure Volume
• Sealed 9.9-12.7 liters / 0.35-0.45 cu.ft.
• Vented 10.8-34 liters / 0.38-1.2 cu.ft.
• Driver Volume Displaced 86.5 cu.in. / 1.42 liters
• Overall Diameter 10.09", 256.2mm
• Baffle Hole Diameter 9.18", 233.17mm
• Front Sealing Gasket Fitted as standard
• Rear Sealing Gasket Fitted as standard
• Mounting Holes Diameter 0.25", 6.4mm
• Mounting Holes B.C.D. 9.66", 245.4mm
• Depth 4.25", 108mm
• Net Weight 10.8 lbs, 4.9 kg
• Shipping Weight 12 lbs, 5.4 kgs

Materials of Construction

• Coil Construction Copper voice coil
• Coil Former Polyimide former
• Magnet Composition Ferrite magnet
• Core Details Vented core
• Basket Materials Pressed steel basket
• Cone Composition Paper Cone
• Cone Edge Composition Cloth cone edge
• Dust Cap Composition Solid composition paper dust cap
