Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Beyma

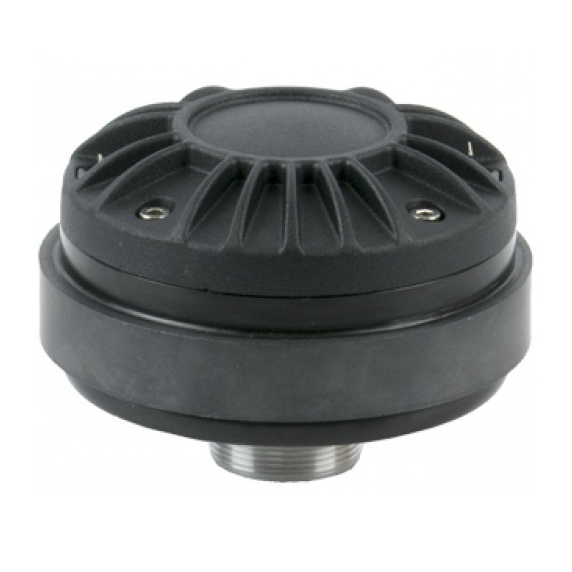

Beyma CD11Fe/S 70W 8 Ohm 1" Screw-in Compression Driver


Product Code: BMACD11FES | Brand: Beyma
Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver

Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver
£73.40
£61.17 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
4
LIMITED STOCK
£5.77 DELIVERY to mainland UK.
Beyma CD11Fe/S 70W 8 Ohm 1" Screw-in Compression Driver



Click here to request product information for this item
TECHNICAL SPECIFICATIONS:

  • Throat diameter 25.4 mm 1 in
  • LNominal impedance 8 Ohm
  • Minimum impedance 5.2 ohm
  • Re 4.4 ohm
  • Power capacity 70 W AES above 1.2 kHz
  • Program power 140 W above 1.2 kHz
  • Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-164
  • Frequency range 700-19000 Hz
  • Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)
  • Voice coil diameter 44.4 mm 1.75 in
  • Flux density 1.5 T
  • Diaphragm material PM4


CONSTRUCTIVE DETAILS:

  • External diameter 110 mm 4.3 in Depth 59 mm 2.3 in
  • Mounting 1 3/8" Screw Thread
  • Net weight 1.8 kg 4 lb
  • Total weight 1.9 kg 4.2 lb
  • Magnet Ferrite
Other Beyma products similar to Beyma CD11Fe/S 70W 8 Ohm 1" Screw-in Compression Driver:
Beyma CD1S 1" 8 Ohm 30W Screw On Compression Driver

£37.94 inc VAT
(£31.62 ex VAT)

UK & ROI
Delivery Info for Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver  to locations within the United Kingdom and Ireland
EUROPE
Delivery Info for Beyma CD11Fe/S 70W 8 Ohm 1 inch Screw-in Compression Driver  to locations in Europe
Our database has the following results for compatibility of this product with common speakers and components.

JBL SRX225 2414H-C | Tweeter | Alternative

Our database of parts includes a wide range of products, and in many cases offers cost effective alternatives for repair. Alternatives are loosely grouped into three types:

Original - Usually an exact match to the original product, and just the 'standard' part from the factory which gets rebadged by manufacturer with their own brand and part number. Occasionally, there are subtle tweaks made from the standard part, but its virtually impossible for us to determine this. If we have listed the part as Original, it means we are confident the performance is the same.
Aftermarket - Aftermarket parts often become available from factories in the far east once the original part is no longer manufactured. They are intended to be a close match, and provide a cost-effective alternative.
Equivalent - These are alternative options, which provide very similar performance, but are not the same as the original. In some cases the performance may actually be improved. We have used both our own experience, and feedback from customers in generating list of alternatives. Alternatives like this are useful when the original part is no longer made, there is no aftermarket option, so the only choice is to upgrade with the nearest current equivalent product.
