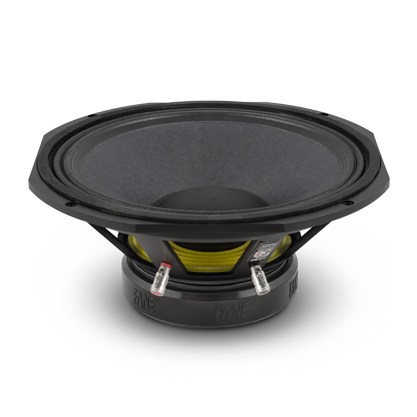

Fane Sovereign Pro 12-300 - 12" 300W 8 Ohm
The Sovereign Pro 12-300 is intended for use in two-way ported enclosures, such as the classic bass driver plus horn tweeter or compression driver format. The unit features die cast chassis with long throw motor system and high linearity suspension allowing solid bass reproduction at high-power levels. The driver exhibits smooth frequency response to give a balanced tonal characteristic when properly matched to appropriate high-frequency drivers. The Sovereign Pro 12-300 is designed for use in 25 to 80 litre ported enclosures and features a 2.5 inch voice coil, 300 Watt power handling and 97.5 dB sensitivity.
- 600 W Program Power.
- 97.5 dB Sensitivity (1W/1m).
- Highly versatile in 2-way ported enclosures.
- Long-throw motor system design with high linearity suspension.
- Solid bass and smooth mid-range performance with extended frequency response.
- UK manufactured cone with optimised pulp offering increased strength, durability and performance.
- Designed for use in 25-80 Litre ported enclosures.
- 3-inch Inside/ outside windings copper voice coil.
Electro Acoustic Specifications:
Thiele Small Parameters:
Mounting and Shipping Information:
Materials of Constructions:
- Nominal Chassis Diameter 12"
- Impedance: 8 Ohms
- Power Handling: 300W (EIA 426A)
- Peak Power (6dB Crest Factor): 1200W (EIA 426A)

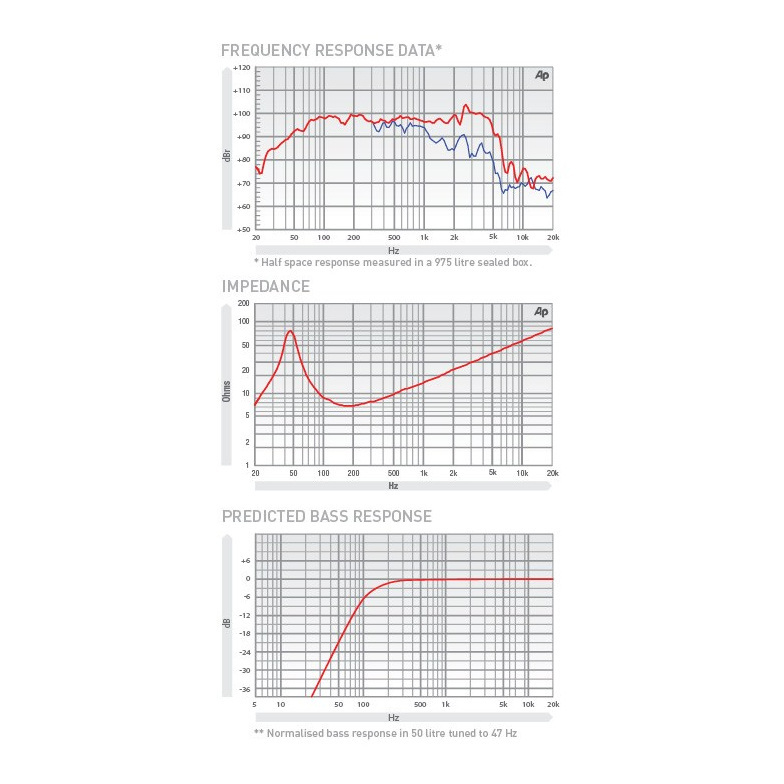

- Usable Frequency Range -6dB: 45 Hz - 4.5 kHz
- Sensitivity (1 w - 1 m): 97.5 dB
- Moving Mass inc. Air Load: 43 grams
- Minimum Impedance Zmin: 6.84 Ohms
- Effective Piston Diameter: 262 mm / 10.31"
- Peak Displacement Volume of Cone Vd: 0.24 litres
- Magnet Weight: 56 oz
- Magnetic Gap Depth: 10 mm / 0.39"
- Flux Density: 1.1 Tesla
- Coil Winding Height: 18 mm / 0.70"
- Voice Coil Diameter: 63.5 mm / 2.5"
Thiele Small Parameters:
- FS Hz: 46 Hz
- RE Ohms: 5.75 Ohms
- Qms: 5.2
- Qes: 0.375
- Qts: 0.35
- Vas Ltr: 114
- Vd litres: 0.24
- CMS (mm/N): 0.278
- BL T/m: 14.8
- Mms (grms): 43
- Xmax (mm) : 4.5
- Sd (cm2): 540
- Efficiency %: 2.89
- Le (1k Hz): 1.64 mH
Mounting and Shipping Information:
- Overall Diameter 330.2 mm / 13"
- Width Across Flats: 309.5 mm / 12.19"
- Flange Height: 7.8 mm / 0.305"
- Baffle Hole Diameter F/M: 281 mm / 11.03"
- Baffle Hole Diameter R/M: 257 mm / 10.13"
- Gasket Supplied: Front & Rear
- Fixing Holes: 4x 5.5 mm diam on 317.5 PCD
- Depth: 134 mm / 5.27"
- Weight: 5.2 kg
- Recommended Enclosure Volume: 25 - 80 litres
- Shipping Weight: 5.85 kg
- Packing Carton Dimensions: 165 x 330 x 330 mm
Materials of Constructions:
- Former Material: Glass Fibre
- Voice Coil: Copper "sandwich" inside and outside windings
- Magnet Material: Ferrite
- Chassis: Die-cast Aluminium
- Cone: Curvilinear Paper
- Surround / Edge Termination: Polyvinyl Damped Half Roll Linen
- Dust Dome: Solid Paper

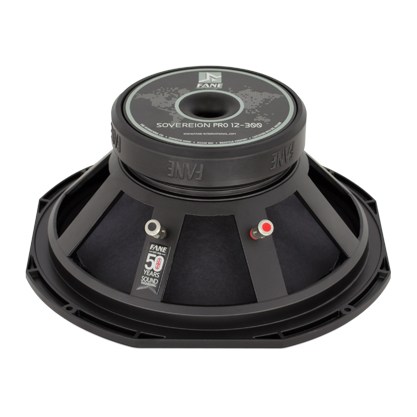

- Connectors: Push-button Spring Terminals
- Polarity: Positive Voltage at Red Terminal Causes Forward Motion of Cone
