Eminence Delta 10 - 10" 350W 8 Ohm **B STOCK**
SPL: 98.8 1W/1m Fs: 66 Hz Xmax: 3.5mm

Product Code: GRD2102 | Brand: Eminence | Model:
Eminence Delta 10 - 10 inch 350W 8 Ohm **B STOCK**

Eminence Delta 10 - 10 inch 350W 8 Ohm **B STOCK**  Eminence Delta 10 - 10 inch 350W 8 Ohm **B STOCK**  Eminence Delta 10 - 10 inch 350W 8 Ohm **B STOCK**  Eminence Delta 10 - 10 inch 350W 8 Ohm **B STOCK**
CLEARANCE:
£64.26
was £99.31
Decrease
Login to see JAM Club pricing
Not a member? Join Now
1
LIMITED STOCK
£11.22 DELIVERY to mainland UK.
Eminence Delta 10 - 10" 350W 8 Ohm **B STOCK**

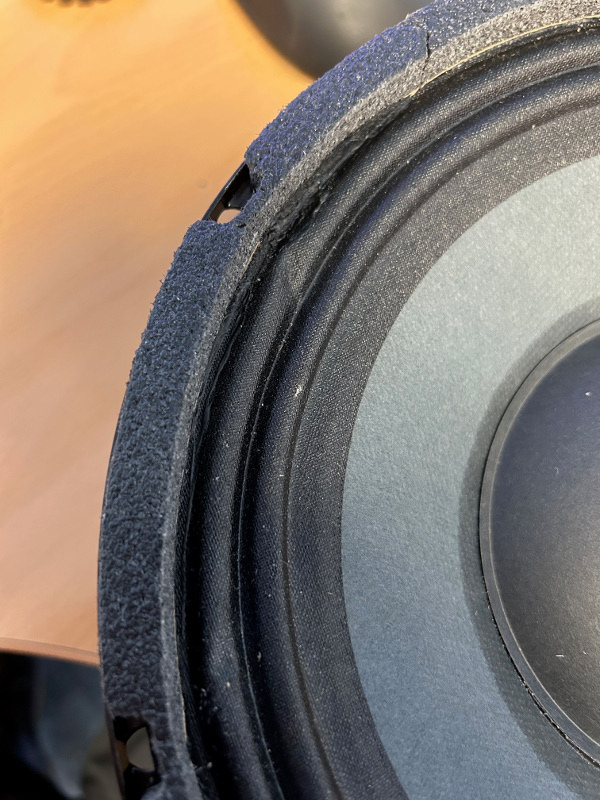

The driver has a slight deformation on the surround, that should not impact operation in any way. Full warranty applies.
Packaging: Complete with original box, virtually as new.
Full Manufacturer's 12 Month Warranty.
10" 350W 8 Ohm Loudspeaker Driver from Eminence. Performance optimised for midrange in three way systems, and bass-mid in two way systems.

Technical specifications


  • Nominal Diameter: 254 mm (10 in)
  • Overall Diameter: 256.3 mm (10.09 in)
  • Bolt Circle Diameter: 245.4 mm (9.66 in)
  • Mounting Holes Diameter: 6.4 mm (0.25 in)
  • Baffle Cutout Diameter: 233.2 mm (9.18 in)
  • Overall Depth: 108 mm (4.25 in)
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Impedance: 8 ohm
  • AES Power: 350 W
  • Program Power: 700 W
  • Sensitivity: 98.8 dB
  • Voice Coil Diameter: 64 mm (2.5 in)
  • Voice Coil Material: Aluminum voice coil
  • Voice Coil Former: Polyimide former
  • Magnetic Gap Depth: 9.5 mm (0.375 in)
  • Cone Material: Paper cone
  • Dust Cap Material: Solid composition paper dust cap
  • Surround Material: Cloth cone edge
  • Chassis Material: Pressed steel basket
  • Magnet Material: Ferrite magnet
  • Magnet Weight: 56 oz
  • Core Details: Vented core
  • Sealed Enclosure Size: N/a L
  • Vented Enclosure Size: 12.7-37.9 L


Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Resonance (Fs) - 66 Hz
  • DC Resistance (Re) - 5.42 Ohm
  • Voice Coil Inductance (Le) - 0.74 mH
  • Mechanical Q (Qms) - 6.53
  • Electrical Q (Qes) - 0.35
  • Total Q (Qts) - 0.33
  • Compliance Equivalent Volume (Vas) - 30.5 L
  • Peak Displacement Volume (Vd) - 121 cm3
  • Compliance (Cms) - 0.18 mm/N
  • Force Factor (BL) - 14.4 Tm
  • Moving Mass - System (Mms) - 32 g
  • Efficiency Bandwidth Product (EBP) - 189
  • Maximum Linear Excursion (Xmax) - 3.5 mm
  • Diaphragm Area (Sd) - 344.9 cm2
  • Maximum Mechanical Excursion (Xmech) - 9.4 mm

Shipping Information


  • Net Weight: 4.9 kg (10.8 lbs)
  • Shipping Weight: 5.44 kg (12 lbs)
