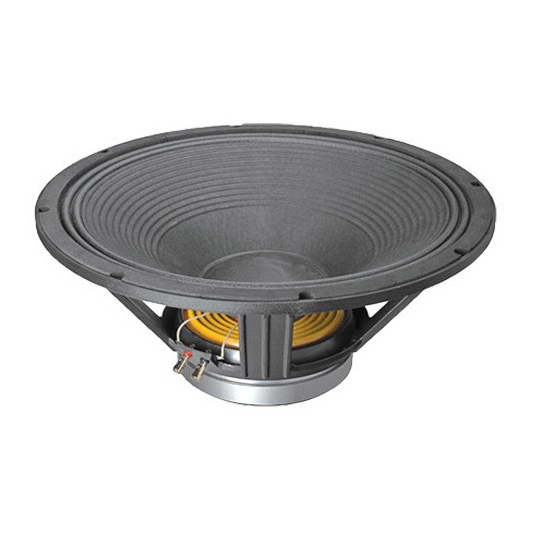

JAM Systems 21XLF1600 - 21" 1600W 8 Ohm
Main features:
- Aluminium die-cast frame with improved voice coil ventilation
- Removable self-centering ferrite magnet system
- Inside-outside copper voice coil
- Ventilated voice coil gap
- Double aluminium demodulation ring
- Glass fibre reinforced weather protected cone
- Double silicon spider
This product appears to be unavailable. Please contact us if you require this product, and we will make further enquiries or look for an equivalent model..
Specifications:
Thiele-Small parameters:
Mounting information
- Nominal diameter, inches (mm) 21(530)
- Nominal impedance, Ohm 8
- Rated power (AES), W 1600
- Frequency range, Hz 25-1000
- Sensitivity (1W / 1m), dB 97.5
- Minimum impedance, Ohm 6.7@130Hz
- Bl product, Tm 30.5
- Voice coil inductance, mH (1kHz) 1.55
- Moving mass Mms, g 348
- Voice coil Diameter, inches (mm) 4.5 (115)
- Winding material copper
- Former material glass fiber
- Winding depth, mm 30
- Magnetic system
- Magnetic gap depth, mm 12
- Flux density, T 1,05
Thiele-Small parameters:
- Fs, Hz 26.9
- Vas, l 388
- Qts 0.32
- Qes 0.33
- Qms 6.8
- Re, Оhm 5.4
- Sd, сm2 1662
- Xmax, mm 12
- n, % 2.2
Mounting information
- Overall diameter, mm 545
- Baffle cutout diameter, mm 494
- Bolt hole diameter, mm 8
- Bolt circle diameter, mm 520
- Height, mm 240
- Net weight, kg 16.2
