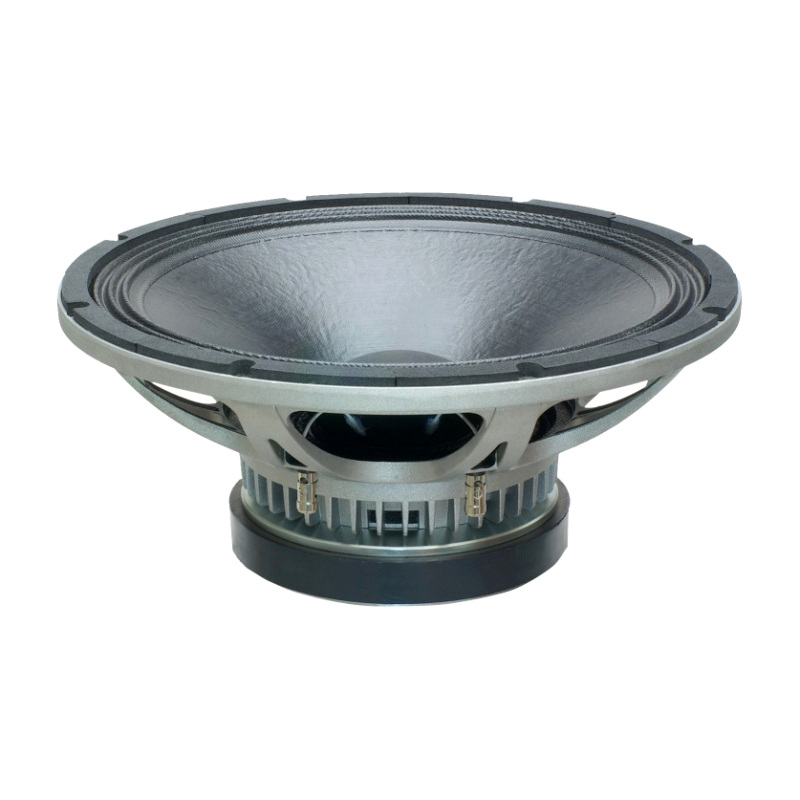

Oberton 15MB35 - 15" 700W 8 Ohm (Ferrite)
15MB35 loudspeaker combines good linearity and efficiency with high power handling capabilities, with use of 88 mm aluminium voice coil and silicone spider. It features aluminium die cast frame, vented ferrite magnet structure with two demodulating rings. 15MB35 is suitable for application in a wide variety of enclosure types and particularly as LF driver in 2- or 3- way boxes. New 3.5" voice coil reduces power compression at high power handling compared with classic 3" voice coil.
Key Features
- 100 db 1W / 1m average sensitivity
- 88 mm high temperature aluminium voice coil
- 1400 W AES program power
- Vented ferrite magnet assembly
- Two aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
- Water protected cone ( front side)
This is NOT a stock item, and will be ordered/manufactured on request. Please call for a date.
Specifications
- Nominal Diameter - 15"/385 inch/mm
- Impedance - 8 Ohm
- Minimum Impedance - 5.97 Ohm
- Power Capacity AES ¹ - 700 W
- Program Power ² - 1400 W

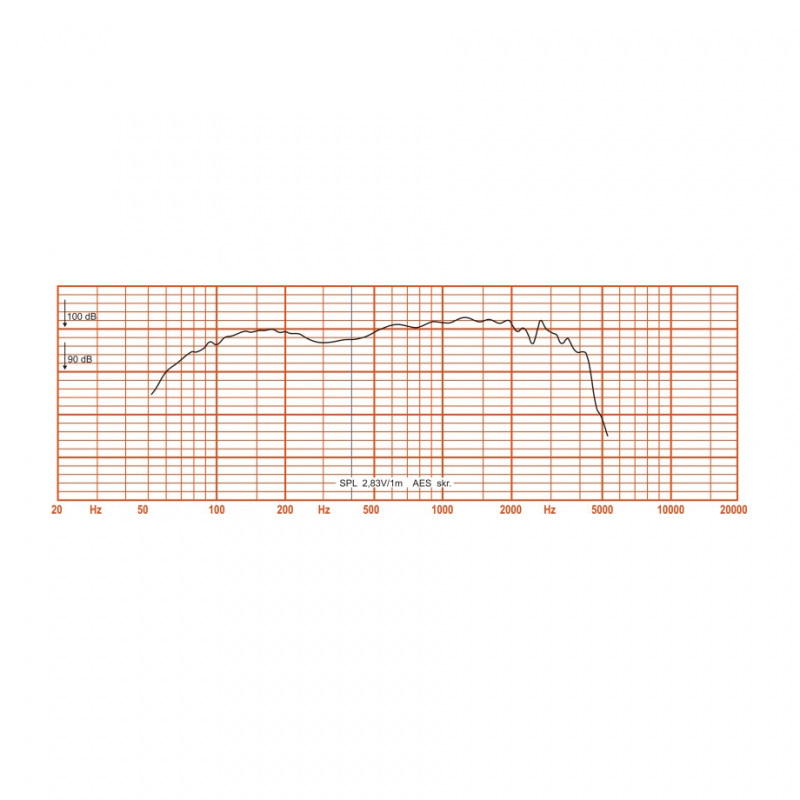

- Sensitivity - (200-2000 Hz)100 dB/W/m
- Frequency Range - 45 - 3500 Hz
- Voice Coil Diameter - 88 mm
- Voice Coil Material - Aluminium
- Voice Coil Former - Glassfiber
- Voice Coil Winding Depth - 19 mm
- Magnet Gap Depth - 11 mm
- Cone Material - Paper with Kevlar + glass fibers
- Basket - Die cast aluminium
- Magnet - Ferrite
- Flux Density - 1.15 T
Thiele-Small Parameters
- Resonance Frequency - 47.70 Hz
- Mechanical Efficiency Factor (Qms) - 8.38
- Electrical Efficiency Factor (Qes) - 0.35
- Total Q (Qts) - 0.336
- Equivalent Air Volume (Vas ) - 115.1 litres
- Diaphragm mass ind. airload (Mms) - 92.95 grams
- Voice Coil Resistance Re - 5.06 Ohms
- Effective Diagram Area (Sd) - 829.6 cm2
- Peak Linear Displacement of Diaphragm (Xmax)* - ±6.75 mm
- Mechanical Compliance of Suspension (Cms) - 0.12 mm/N
- BL Product (BL) - 20.07 T.m
- V.C. Inductance at 1 kHz (Le) - 0.637 mH

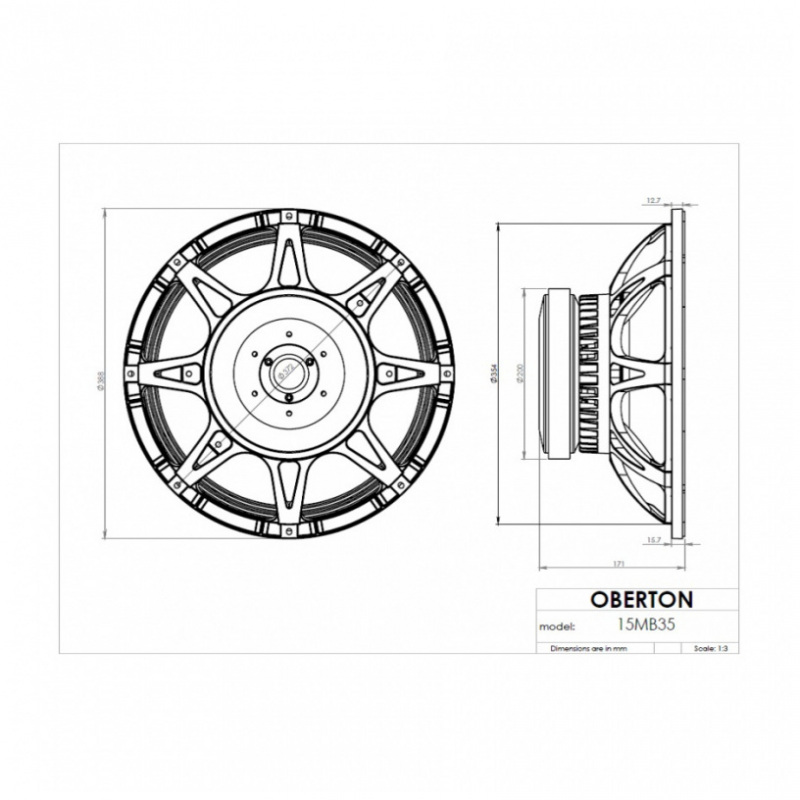

Mounting Information
- Overall Diameter - 388 mm
- Baffle Hole Diameter - 354 mm
- Number of Mounting Holes - 8 with dia. 7mm
- Bolt Circle Diameter - 370/372 mm
- Overall Depth - 171 mm
- Net Weight - 9.2 kg
