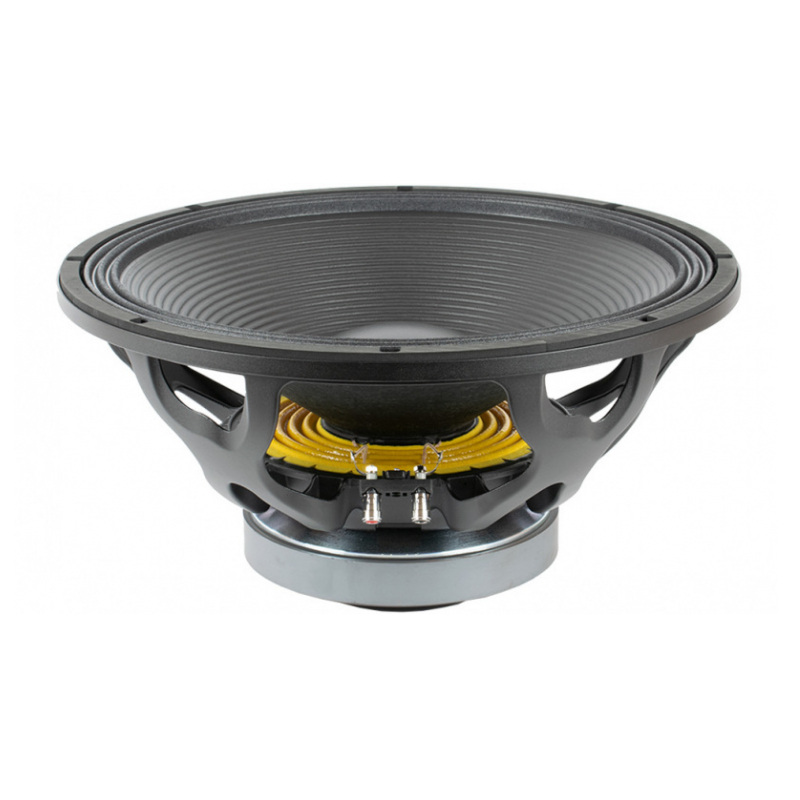

Beyma 18QLEX1600Fe 18" 1600W 8 Ohm

SPL: 97.0dB Fs: 30Hz Xmax: 13.0mm

Product Code: BMA18QLEX1600FE Brand: Beyma Model: 18QLEX1600Fe

£302.78
£252.32 ex VAT

Quantity Discounts

2-3£293.70 ea.

4-7£287.64 ea.

8+£281.59 ea.

Ordered on Request
(approx 2 months)

Request stock Info

FREE DELIVERY

for mainland UK

Beyma 18QLEX1600Fe 18" 1600W 8 Ohm

KEY FEATURES

High power handling and low distortion 18" subwoofer
High force factor design for top performance applications
Malt Cross Technology Cooling System
Low power compression losses
High sensitivity: 97 dB (1W / 1m)
FEA optimized ceramic magnetic circuit
Aluminium demodulating ring
Ultra low air noise
Optimized linear behaviour
Exclusive NCR membrane (Neck Coupling Reinforcement)
Waterproof cone with treatment for both sides
Double silicone spider
4" QUATTRO in/out copper voice coil
Extended controlled displacement: Xmax �± 13 mm
60 mm peak-to-peak excursion before damage
Optimized for direct radiation and band-pass subwoofer applications

This is NOT a stock item, we can usually order this in and have stock within 40-44 working days. If you require this item urgently, please contact a member of staff to confirm availability.

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ohm
Power capacity 1600 W AES
Nominal diameter 460 mm 18 in
Sensitivity 96 dB 1 W @ 1 m @ ZN
Minimum impedance 6.3 ohm
Frequency range 30-1000 Hz
Program power 3200 W
Recommended enclosure volume 125 l
Voice coil diameter 101.6 mm 4 in
BL factor 36.4 N/A
Moving mass 0.323 kg
Winding length 32 mm
Air gap height 15 mm
Xdamage pp 60 mm

PARAMETERS THIELE & SMALL

Fs 30 Hz
Re 5.3 ohm
Qms 6.5
Qes 0.24
Qts 0.23
Vas 195 l
Cms 88 �μm / N
Rms 9.3 kg/s
Efficiency % 2.1
Sd 0.1255 m²
Xmax 13 mm
Vd 1631 cm³
Le @1 kHz 3.9 mH

CONSTRUCTION DETAILS

Depth 233 mm 9.2 in
Net weight 14.6 kg 32.1 lb
Total weight 15.9 kg 35.0 lb
Magnet Ferrite
