Technical specifications

• Throat Diameter: 25.4 mm (1 in)
• Impedance: 8 Ohm
• Minimum Impedance: 6.0 Ohm
• AES Power: 15 W
• Program Power: 30 W
• Sensitivity: 107 dB
• Frequency Range: 1500 - 18000 Hz
• Voice Coil Material: CCAW
• Voice Coil Former: Kapton
• Voice Coil Inductance: 0.03 mH
• Diaphragm Material: Polyester
• Surround Material: Polyester
• Magnet Material: Ferrite
• Magnet Diameter: 85 mm (3.3 in)
• Flux Density: 1.5 T
• Driver Displacement Volume: 0.2 l (0.007 ft³)
• Recommended Crossover: 2.5 kHz

Shipping Information

• Multipack weight: 11.5 kg (25.2lb)
• Multipack size W x D x H: 498 x 412 x 98 mm (19.6 x 16.2 x 3.9in)
• Net weight: 0.8 kg (1.7lb)
• Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.

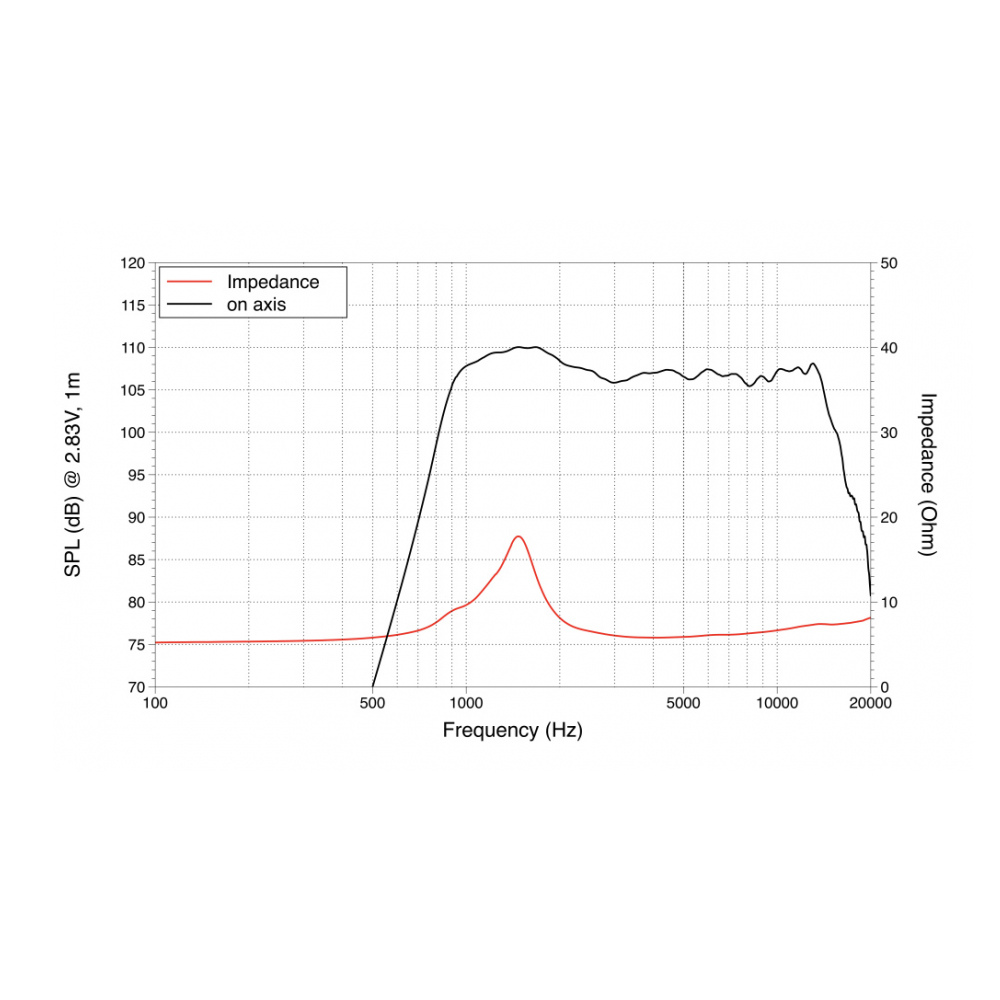

3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
