This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

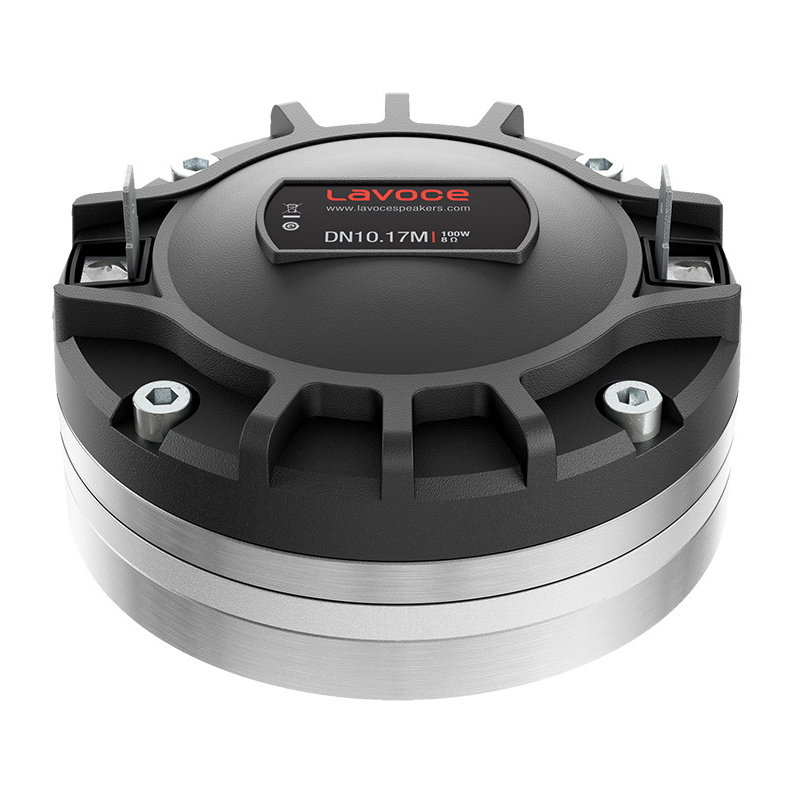

Lavoce DN10.17M 1" Compression Driver 50W 8 Ohm
Key features
- 1.7 INCH EDGEWOUND CCA VOICE COIL
- 110 dB/SPL SENSITIVITY
- 100 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1200 - 18000 Hz FREQUENCY RANGE
- POLYESTER DIAPHRAGM
Technical specifications
- Throat Diameter: 25.4 mm (1 in)
- Impedance: 8 Ohm
- Minimum Impedance: 7.3 Ohm
- AES Power: 50 W
- Program Power: 100 W
- Sensitivity: 110 dB
- Frequency Range: 1200 - 18000 Hz
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Fiber Glass
- Voice Coil Inductance: 0.09 mH
- Diaphragm Material: Polyester
- Surround Material: Polyester. vented
- Magnet Material: Neodymium
- Magnet Diameter: 85 mm (3.3 in)
- Flux Density: 1.9 T
- Driver Displacement Volume: 0.2 l (0.008 ft3)
- Recommended Crossover: 1.6 kHz
Shipping Information
- Multipack weight: 9.1 kg (19.9lb)
- Multipack size W x D x H: 412x 376 x 94 mm (16.2 x 14.8 x 3.7in)
- Net weight: 0.9 kg (1.9lb)
- Multipack Quantity: 12
NOTES
1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
