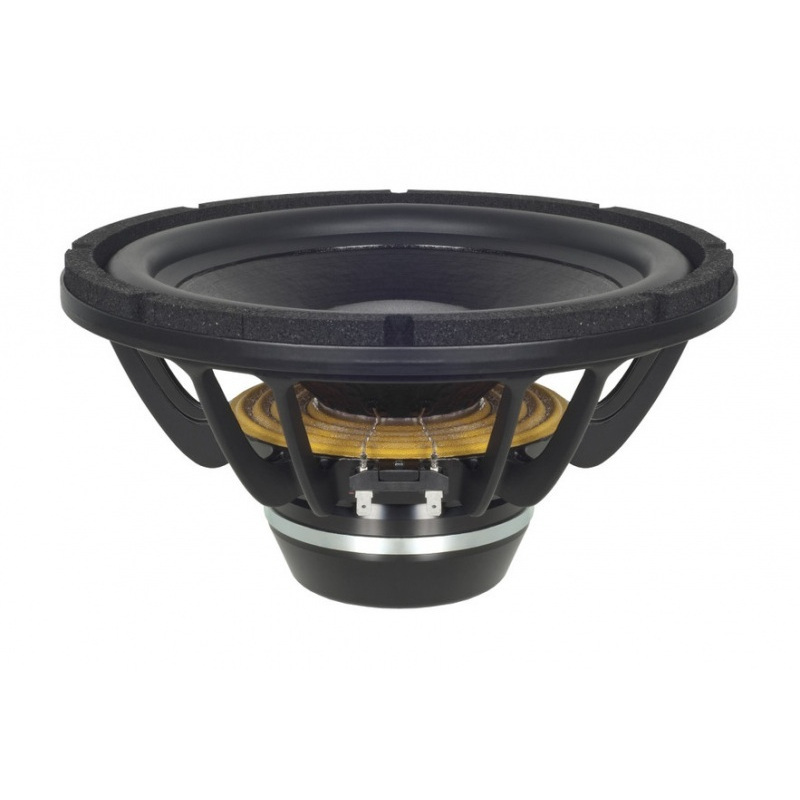

B&C 12BG76 12" 1000W 8 Ohms With Faston Spade Terminals
- 1000 W continuous program power capacity
- 76 mm (3 in) copper voice coil
- 45 - 1000 Hz response
- 92 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
SPECIFICATIONS:
Thiele Small Parameters:
Mounting & Shipping Info:
- Nominal Diameter 320 mm (12.0 in)
- Nominal Impedance 8 ohms
- Minimum Impedance 6.5 ohms
- Nominal Power Handling 500 W
- Continuous Power Handling 1000 W
- Sensitivity 92.0 dB
- Frequency Range 45 - 1000 Hz
- Voice Coil Diameter 76 mm (3.0 in)
- Winding Material Copper
- Former Material Glass Fibre
- Winding Depth 25.0 mm (0.98 in)
- Magnetic Gap Depth 11.5 mm (0.45 in)
- Flux Density 1.25 T
Thiele Small Parameters:
- Resonance Frequency 44 Hz
- Re 5.4 ohms
- Qes 0.44
- Qms 5.9
- Qts 0.41
- Vas 32.0 dm3 (1.13 ft3)
- Sd 522.0 cm2 (80.91 in2)
- η₀ 0.65%
- Xmax 9.5 mm
- Xvar 14.0 mm
- Mms 148.0 g
- Bl 22.7 Txm
- Le 1.1 mH
- EBP 100 Hz
Mounting & Shipping Info:
- Overall Diameter 315 mm (12.4 in)
- Bolt Circle Diameter 298 mm (11.73 in)
- Baffle Cutout Diameter 284.0 mm (11.18 in)
- Depth 159 mm (6.26 in)
- Flange and Gasket Thickness 14 mm (0.55 in)
- Air Volume Occupied by Driver 2.0 dm3 (0.07 ft3)
- Net Weight 5.0 kg (11.02 lb)
- Shipping Units 1
- Shipping Weight 5.9 kg (13.01 lb)
- Shipping Box 360x360x200 mm (14.17x14.17x7.87 in)
