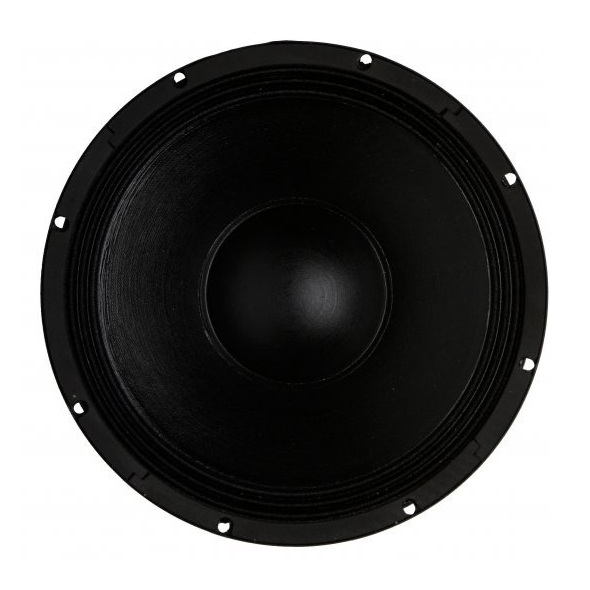

B&C 12CL64 12" 250W 4 Ohm
- 500 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 50 - 3000 Hz response
- 98 dB sensitivity
Specifications
- Nominal diameter 320 mm (12.0 in)
- Nominal impedance 4 ohms
- Nominal power handling 250 W
- Continuous power handling 500 W
- Sensitivity (1W/1m) 98.0 dB
- Frequency range 50 - 3000 Hz
- Voice coil diameter 64 mm (2.5 in)
- Winding material Copper
- Former material Glass Fibre
- Winding depth 13 mm (0.51 in)
- Magnetic gap depth 8 mm (0.31 in)
- Flux density 1.15 T
Design
- Surround shape Double Roll
- Cone shape Exponential
- Magnet material Neodymium Inside Slug
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment WP Waterproof Front Side
- Recommended enclosure 40.0 dm3 (1.41 ft3)
- Recommended tuning 64 Hz
Mounting and Shipping Info
- Overall diameter 313 mm (12.32 in)
- Bolt circle diameter 299 mm (11.77 in)
- Baffle cutout diameter 282.0 mm (11.1 in)
- Depth 133 mm (5.24 in)
- Flange and gasket thickness 9 mm (0.35 in)
- Air volume occupied by driver 2.0 dm3 (0.07 ft3)
- Net weight 1.9 kg (4.2 lb)
- Shipping weight 2.4 kg (5.3 lb)
- Shipping box 340x340x170 mm (13.4x13.4x6.7 in)
