B&C 12NBX100 12" 1000W 4 Ohm
With Faston Spade Terminals

Product Code: BAC12NBX100C | Brand: B & C | Model: 12NBX100
B&C 12NBX100 12 inch 1000W 4 Ohm

B&C 12NBX100 12 inch 1000W 4 Ohm B&C 12NBX100 12 inch 1000W 4 Ohm B&C 12NBX100 12 inch 1000W 4 Ohm
HOT DEAL:
£247.00
was £275.08
2-3 £244.99 ea.4-7 £238.99 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 months
Usually available in
3-5 months
FREE DELIVERY for mainland UK
B&C 12NBX100 12" 1000W 4 Ohm

  • 2000 W continuous program power capacity
  • 100 mm (4 in) copper voice coil

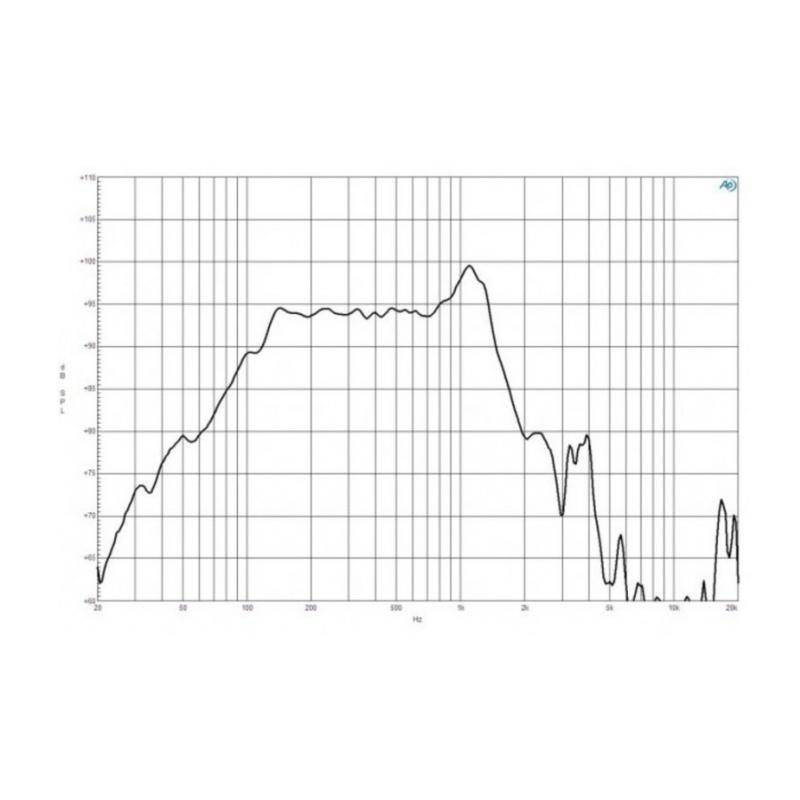

  • 40 - 1500 Hz response
  • 94 dB sensitivity
  • FEA optimized Neodymium magnet assembly
  • Aluminium demodulating ring allows a very low distortion figure
  • Double silicone spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
Specifications:

  • Nominal diameter 320 mm (12.0 in)
  • Nominal impedance 4 ohms
  • Minimum impedance 4.5 ohms
  • Nominal power handling 1000 W
  • Continuous power handling 2000 W
  • Sensitivity (1W/1m) 94.0 dB
  • Frequency range 40 - 1500 Hz
  • Voice coil diameter 100 mm (4.0 in)
  • Winding material Copper
  • Former material Glass Fibre
  • Winding depth 25 mm (1.0 in)
  • Magnetic gap depth 11 mm (0.43 in)
  • Flux density 1.1 T


Design:

  • Surround shape Triple Roll
  • Cone shape Exponential
  • Magnet material Neodymium Ring
  • Spider Double Silicone
  • Pole design T-Pole
  • Woofer cone treatment TWP Waterproof Both Sides
  • Recommended enclosure 40.0 dm3 (1.41 ft3)
  • Recommended tuning 50 Hz


Parameters:

  • Fs 40 Hz
  • Re 3.6 ohms
  • Qes 0.23
  • Qms 7.05
  • Qts 0.22
  • Vas 46.5 dm3 (1.8 ft3)
  • Sd 531.0 cm2 (82.0 in2)
  • Reference efficiency 1.27 %
  • Xmax 10.0 mm
  • Xvar 10.0 mm
  • Mms 133 g
  • Bl 23.04 Txm
  • Le 1.35 mH
  • EBP 173 Hz


Mounting And Shipping Info:

  • Overall diameter 320 mm (12.6 in)
  • Bolt circle diameter 300 mm (11.8 in)
  • Baffle cutout diameter 280.0 mm (11.0 in)
  • Depth 143 mm (5.63 in)
  • Flange and gasket thickness 12 mm (0.47 in)
  • Air volume occupied by driver 4.0 dm3 (0.14 ft3)
  • Net weight 8.0 kg (17.6 lb)
  • Shipping weight 8.6 kg (18.9 lb)
  • Shipping box 340x340x170 mm (13.4x13.4x6.7 in)
  • Recone Kit RCK12NBX1008
