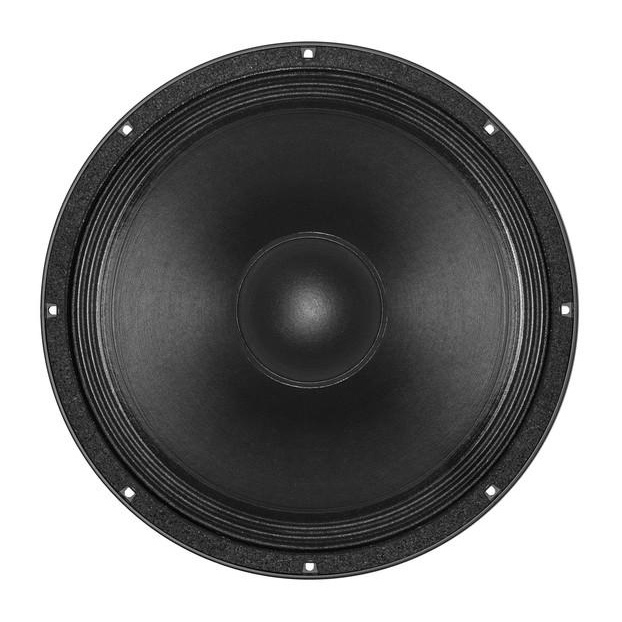

B & C 15FW88 - 15" 700W 8 Ohm Loudspeaker
The FW88 series is perfectly balanced for the loudspeaker systems of today. A performance-oriented range of ferrite woofers with 3.5" (88mm) voice coil and high flux ferrite magnet, incorporated into a compact but powerful motor package. The results are unexpected low frequency output and midrange extension to meet with almost any driver for two way applications. Do more, with less, with the FW88 series.
1400 W continuous program power capacity
88 mm (3.5 in) aluminium voice coil
49 - 3000 Hz response
98.1 dB sensitivity
Ventilated voice coil gap for reduced power compression
Double silicone spider with optimized compliance
Aluminum demodulating ring allows a very low distortion figure
Technical specifications
- Nominal Diameter: 380 mm (15.0 )
- Overall Diameter: 393 mm (15.47 )
- Bolt Circle Diameter: 371 mm (14.61 )
- Baffle Cutout Diameter: 357.0 mm (14.06 )
- Overall Depth: 174 mm (6.85 )
- Flange/Gasket Thickness: 14 mm (0.55 )
- Impedance: 8 ohm
- Minimum Impedance: 6.4 ohm
- Program Power: 1400 W
- Power: 700 W
- Sensitivity: 98.0 dB
- Frequency Range: 49 Hz
- Voice Coil Diameter: 88 mm (3.45 )
- Voice Coil Material: Aluminium
- Voice Coil Former: Glass Fibre
- Voice Coil Depth: 21.5 mm (0.85 )
- Magnetic Gap Depth: 11.0 mm (0.43 )
- Cone Shape: Exponential
- Cone Treatment: WP Waterproof Front Side
- Surround Type: Triple Roll
- Spider: Double Silicone
- Magnet Material: Ferrite
- Pole Design: T-Pole
- Flux Density: 1.04 T
- Driver Displacement Volume: 3.5 L
- Recommended Enclosure: 130.0
- Recommended Tuning: 45
Thiele and small parameters
- Resonance (Fs) - 49 Hz
- DC Resistance (Re) - 5.2 Ohm
- Electrical Q (Qes) - 0.45
- Mechanical Q (Qms) - 9.3
- Total Q (Qts) - 0.43
- Compliance Equivalent Volume (Vas) - 103.7 L
- Diaphragm Area (Sd) - 855.0 cm2
- Reference Efficiency (Eta Zero) - 2.63 %
- Maximum Linear Excursion (Xmax) - 8.0 mm
- Xvar (Xvar) - 9.5
- Moving Mass - System (Mms) - 106.8 g
- Force Factor (BL) - 19.27 Tm
- Voice Coil Inductance (Le) - 0.81 mH
- Efficiency Bandwidth Product (EBP) - 108
Shipping Information
- Net Weight: 9.0 kg
- Shipping Weight: 10.3 kg
- Shipping Box: 425x425x224
- Multipack Quantity: 1
