B & C

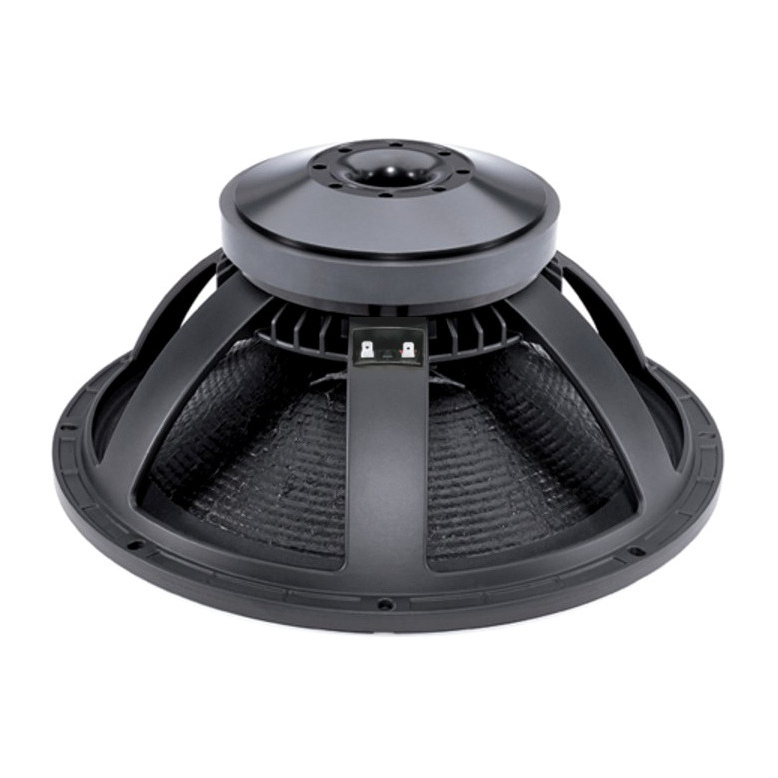

B&C 18TBX100 - 18" 1200W 4 Ohm Loudspeaker
With Faston Spade Terminals

Product Code: BAC18TBX100C | Brand: B & C | Model: 18TBX100
B&C 18TBX100 - 18 inch 1200W 4 Ohm Loudspeaker

B&C 18TBX100 - 18 inch 1200W 4 Ohm Loudspeaker B&C 18TBX100 - 18 inch 1200W 4 Ohm Loudspeaker B&C 18TBX100 - 18 inch 1200W 4 Ohm Loudspeaker
HOT DEAL:
£239.00
was £266.00
2-3 £233.00 ea.4-7 £222.00 ea.8+ £220.00 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
B&C 18TBX100 - 18" 1200W 4 Ohm Loudspeaker

  • 2400 W continuous program power capacity
  • 100 mm (4 in) copper voice coil
  • 35 - 1000 Hz response
  • 97 dB sensitivity
  • Aluminium demodulating ring allows a very low distortion figure
  • Double silicone spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression

Specifications


  • Nominal diameter 460 mm (18.0 in)
  • Nominal impedance 4 %u03A9
  • Minimum impedance 3.1 %u03A9
  • Nominal power handling * 1200 W
  • Continuous power handling * 2400 W
  • Sensitivity (1W/1m) * 94.0 dB
  • Frequency range 35 - 1000 Hz
  • Voice coil diameter 100 mm (4.0 in)
  • Winding material Copper
  • Former material Glass Fibre
  • Winding depth 25 mm (1.0 in)
  • Magnetic gap depth 12 mm (0.5 in)
  • Flux density 1.1 T

Design


  • Surround shape Triple Roll
  • Cone shape Radial
  • Magnet material Ferrite
  • Spider Double Silicone
  • Pole design T-Pole
  • Woofer cone treatment TWP Waterproof Both Sides
  • Recommended enclosure 200.0 dm3 (7.06 ft3)
  • Recommended tuning 34 Hz

Parameters


  • Fs 34 Hz
  • Re 3.1 %u03A9
  • Qes 0.37
  • Qms 7.2
  • Qts 0.35
  • Vas 212.0 dm3 (7.5 ft3)
  • Sd 1210.0 cm2 (187.6 in2)
  • %u03B7%u2080 2.2 %
  • Xmax 9.0 mm
  • Xvar 11.0 mm
  • Mms 209 g
  • Bl 25.5 Txm
  • Le 1.6 mH
  • EBP 91 Hz

Mounting and Shipping Info


  • Overall diameter 460 mm (18.0 in)
  • Bolt circle diameter 440 mm (17.3 in)
  • Baffle cutout diameter 422.0 mm (16.6 in)
  • Depth 209 mm (8.2 in)
  • Flange and gasket thickness 16 mm (0.62 in)
  • Air volume occupied by driver 10.5 dm3 (0.37 ft3)
  • Net weight 13.0 kg (28.6 lb)
  • Shipping units 1
  • Shipping weight 14.4 kg (31.7 lb)
  • Shipping box 500x500x250 mm (19.7x19.7x9.8 in)
