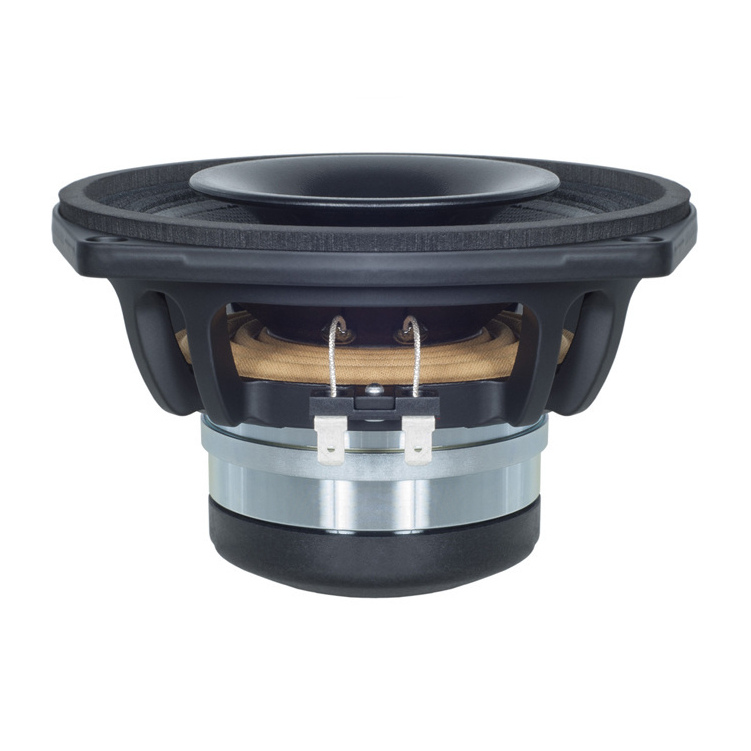

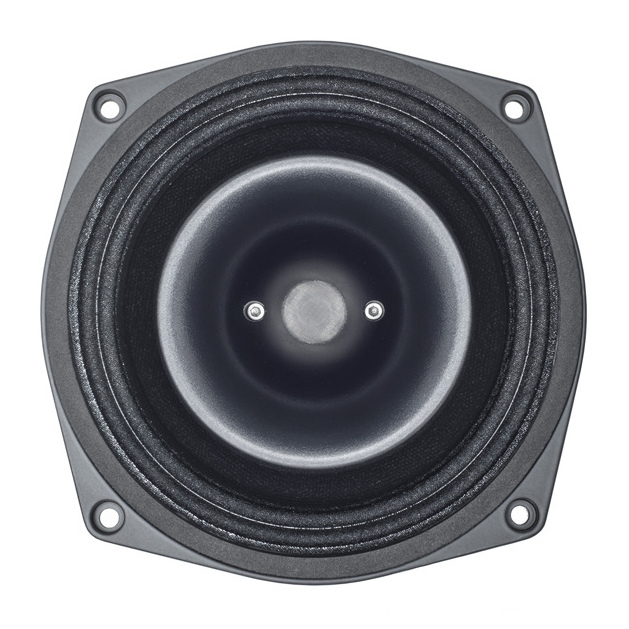

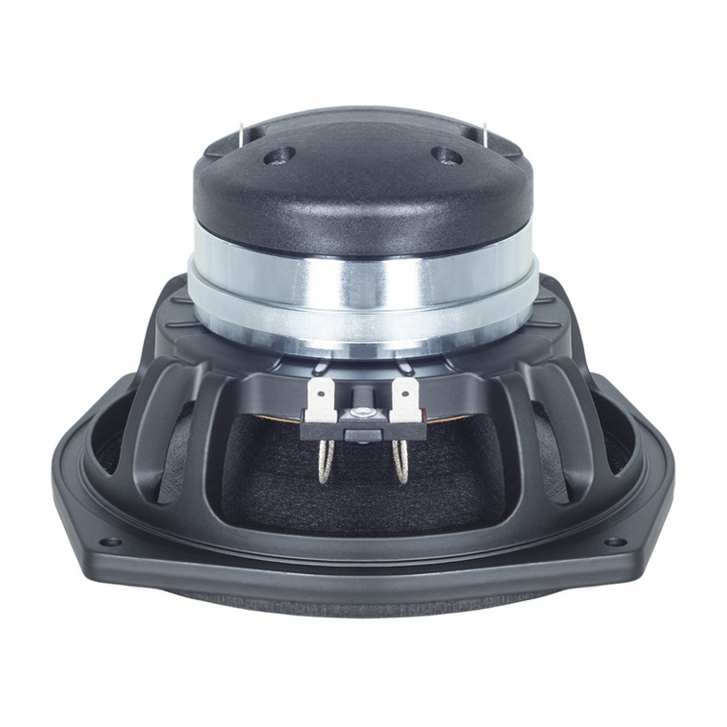

B&C 6HCX51 6.5" 150W 8 Ohm

With Faston Spade Terminals
Product Code: BAC6HCX51A Brand: B & C Model: 6HCX51
B&C 6HCX51 6.5 inch 150W 8 Ohm
£145.04
£145.04 ex VAT
Decrease Increase
Quantity Discounts
2-3£144.46 ea.
4-7£141.48 ea.
8+£138.50 ea.
Non Stock Item - Ordered on request
Ordered on Request
(approx 2 months)
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
B&C 6HCX51 6.5" 150W 8 Ohm

  • 300 W continuous program power capacity
  • 70° nominal coverage
  • 90 - 18000 Hz response
  • 92 dB sensitivity
  • Single Neodymium magnet assembly
  • 20.1 mm (0.79”) HF unit exit diameter

This is NOT a stock item, we can usually order this in and have stock within 40-44 working days. If you require this item urgently, please contact a member of staff to confirm availability.
Specifications:

  • Nominal diameter 170 mm (6.5 in)
  • Nominal impedance 8 ohms
  • Minimum impedance lf 6.0 ohms
  • Minimum impedance hf 7.5 ohms
  • Frequency range 90 - 18000 Hz
  • Dispersion angle 70 degrees (conical)
  • Magnet material Neodymium Ring


Specifications LF Unit:

  • LF Sensitivity 92.0 dB
  • LF Nominal Power Handling 150 W
  • LF Continuous Power Handling 300 W
  • LF Voice Coil Diameter 51 mm
  • LF Winding Material Copper


Specifications HF Unit:

  • HF Sensitivity 105.0 dB
  • HF Nominal Power Handling 25 W
  • HF Continuous Power Handling 50 W
  • HF Voice Coil Diameter 36 mm
  • HF Winding Material Aluminium
  • Diaphragm material Polyester
  • Recommended crossover 2.2 kHz


Parameters:

  • Fs 89 Hz
  • Re 5.2 ohms
  • Qes 0.4
  • Qms 7.5
  • Qts 0.38
  • Vas 5.0 dm3
  • Sd 132.0 cm2
  • Reference efficiency 0.8 %
  • Xmax 5.0 mm
  • Xvar 5.5 mm
  • Mms 16 g
  • Bl 10.9 Txm
  • Le 0.8 mH
  • EBP 222 Hz


Mounting And Shipping Info:

  • Overall diameter 187 mm
  • Bolt circle diameter 172 mm
  • Baffle cutout diameter 146 mm
  • Depth 104 mm
  • Flange and gasket thickness 11 mm
  • Net weight 1.55 kg
  • Shipping weight 1.85 kg
  • Shipping box 266x259x155 mm
  • Recone kit lf RCK06HCX518
  • Replacement diaphragm hf MMD0128
