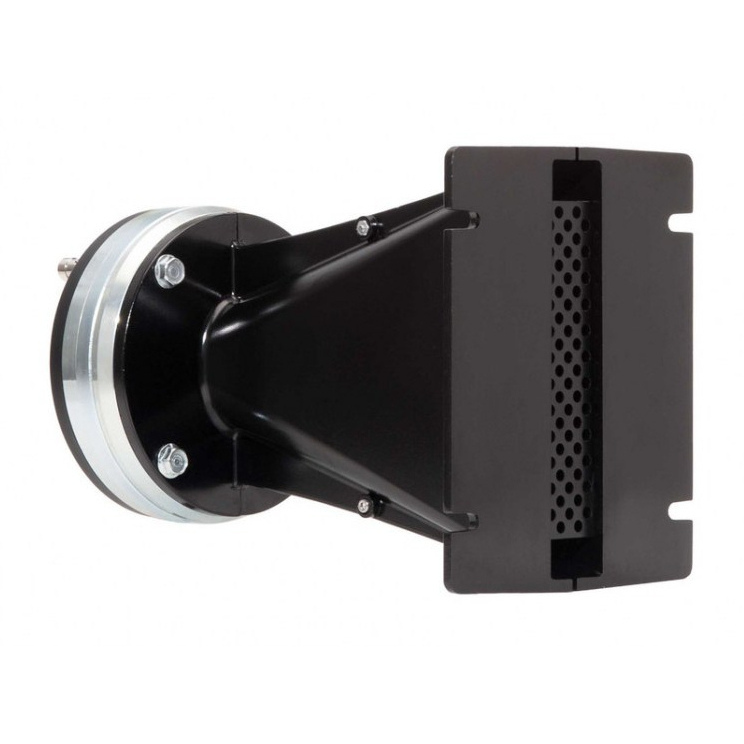

B&C WGX880TN Line Array Driver With Wave Guide
Click here to request product information for this item
Specifications:
Mounting And Shipping Info:
- Horizontal coverage 120 degrees Max
- Active radiating factor 93.7 %
- Recommended crossover 0.8 kHz
- Waveguide material Cast Aluminium
- Nominal impedance 8 ohms
- Minimum impedance 8.1 ohms
- Nominal power handling 110 W
- Continuous power handling 220 W
- Sensitivity (1W/1m) 108.0 dB
- Frequency range 500 - 17 kHz
- Voice coil diameter 75 mm (3.0 in)
- Winding material CCAW
- Diaphragm material Titanium
- Flux density 1.85 T
- Magnet material Neodymium Ring
Mounting And Shipping Info:
- Waveguide baffle cutout 153x25 mm (6x1 in)
- Driver diameter 124 mm (4.9 in)
- Dimensions 163x130x235 mm (6.4x5.1x9.3 in)
- Net weight 3.1 kg (6.83 lb)
- Shipping units 1
- Shipping weight 3.2 kg (7.05 lb)
- Shipping box 245x140x175 mm (9.6x5.5x6.9 in)
