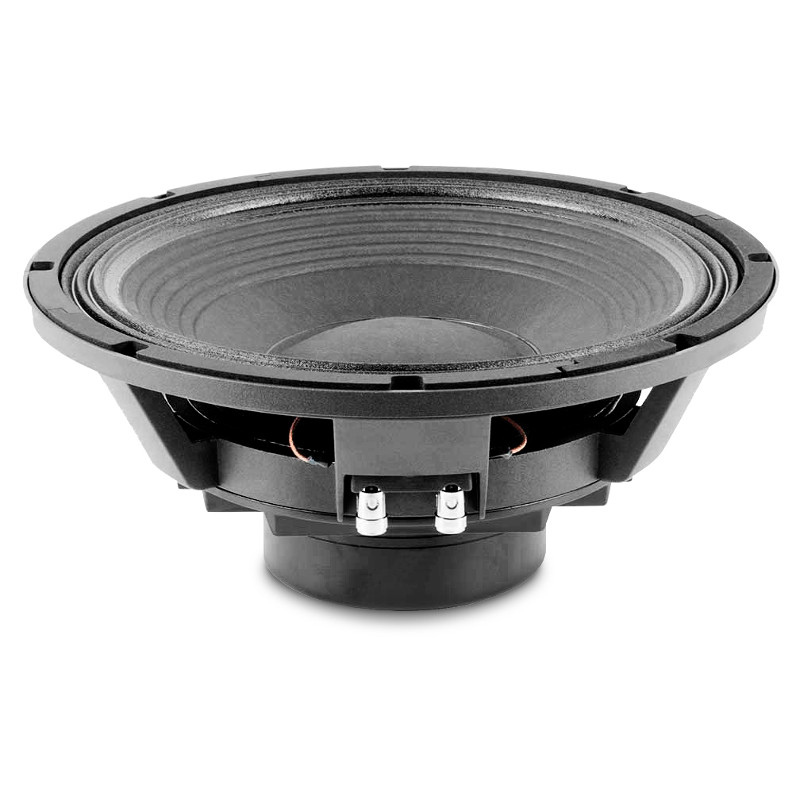

Beyma 12P80Nd/V2 - 12" 700W 8 Ohm
Features
- 700 WAES power handling capacity
- High sensitivity: 100 dB
- Wide usable frequency range and low harmonic distortion
- Low resonant frequency: 47Hz
- Extended controlled displacement: Xmax ± 7.5 mm
- Extended mechanical displacement capability: Xdamage ± 52 mm
- Low power compression losses
- CONEX spider
- Designed with MMSS technology
Technical Specifications
- Nominal diameter - 300 mm 12 in
- Rated impedance - 8 ohms
- Minimum impedance - 5.2 ohms
- Power capacity* - 700 WAES
- Program power - 1400 W
- Sensitivity - 100 dB 1W / 1m @ ZN
- Frequency range - 50 - 4000 Hz
- Voice coil diameter - 101.6 mm 4 in
- Bl factor - 23.7 N/A
- Moving mass - 0.074 kg
- Voice coil length - 20 mm
- Air gap height - 12 mm
- Xdamage (peak to peak) - 52 mm
Thiele Small Parameters
- Resonant frequency, fs - 47 Hz
- D.C. Voice coil resistance, Re - 5 ohms
- Mechanical Quality Factor, Qms - 5.2
- Electrical Quality Factor, Qes - 0,20
- Total Quality Factor, Qts - 0.19
- Equivalent Air Volume to Cms, Vas - 65 l
- Mechanical Compliance, Cms - 152 mu!m / N
- Mechanical Resistance, Rms - 4,2 kg / s
- Efficiency, %u03B70 - 3.4 %
- Effective Surface Area, Sd - 0,055 m2
- Maximum Displacement, Xmax *** - 7,5 mm
- Displacement Volume, Vd - 412,5 cm3
- Voice Coil Inductance, Le @ 1 kHz - 0.9 mH
Mounting Information
- Overall diameter - 312 mm 12.28 in
- Bolt circle diameter - 298 mm 11.73 in
- Baffle cutout diameter: -
- - Front mount - 283 mm 11.12 in
- Depth - 130 mm 5.12 in
- Net weight - 5.6 kg 12.32 lb
- Shipping weight - 6.3 kg 13.86 lb
