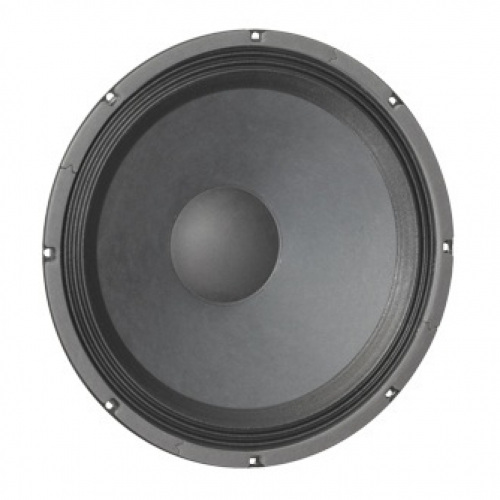

Eminence Kappa 15 - 15" 450W 4 Ohm Loudspeaker
SPL: 98.1 1W/1m Fs: 36 Hz Xmax: 2.4mm

Product Code: EMIKAP15C | Brand: Eminence | Model: KAPPA-15C
Eminence Kappa 15 - 15 inch 450W 4 Ohm Loudspeaker

Eminence Kappa 15 - 15 inch 450W 4 Ohm Loudspeaker Eminence Kappa 15 - 15 inch 450W 4 Ohm Loudspeaker Eminence Kappa 15 - 15 inch 450W 4 Ohm Loudspeaker
£144.71
£120.59 ex VAT
2-3 £142.54 ea.4-7 £140.37 ea.8+ £137.47 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
Eminence Kappa 15 - 450W 15" Driver 4 ohm

Impedance: 4 ohms
Resonance: 36Hz
Usable frequency range: 30Hz-2.5Khz
Shipping Weight: 8.8Kg

Specifications:

  • Nominal Basket Diameter 15", 381mm
  • Nominal Impedance* 4 ohms
  • Power Rating - Watts 450W, Music Program 900W
  • Resonance 31Hz
  • Usable Frequency Range 63Hz - 2.8kHz
  • Sensitivity*** 98.1dB
  • Magnet Weight 80 oz.
  • Gap Height 0.37", 9.53mm
  • Voice Coil Diameter 3", 76.2mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 31Hz
  • DC Resistance (Re) 3.68
  • Coil Inductance (Le) 0.88mH
  • Mechanical Q (Qms) 10.14
  • Electromagnetic Q (Qes) 0.25
  • Total Q (Qts) 0.25
  • Compliance Equivalent Volume (Vas) 329.9 liters / 11.7 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 206cc
  • Mechanical Compliance of Suspension (Cms) 0.35mm/N
  • BL Product (BL) 14.7 T-M
  • Diaphragm Mass Inc. Airload (MMs) 77 grams
  • Efficiency Bandwidth Product (EBP) 124
  • Maximum Linear Excursion (Xmax) 2.4mm
  • Surface Area of Cone (Sd) 856.3 cm2
  • Maximum Mechanical Limit (Xlim) 11.6mm


Mounting Information:

  • Recommended Enclosure Volume: Sealed N/a, Vented 40-79 liters / 1.4-2.8 cu.ft.
  • Driver Volume Displaced 239 cu.in. / 3.92 liters
  • Overall Diameter 15.16", 384.9mm
  • Baffle Hole Diameter 13.87", 352.3mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.25", 6.4mm
  • Mounting Holes B.C.D. 14.56", 369.9mm
  • Depth 156mm, 6.13"
  • Net Weight 17.6 lbs, 8 kg
  • Shipping Weight 19.8 lbs, 9 kgs


Materials of Construction:

  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap


Detailed specifications unavailable, please EMAIL the sales office for additional information.
