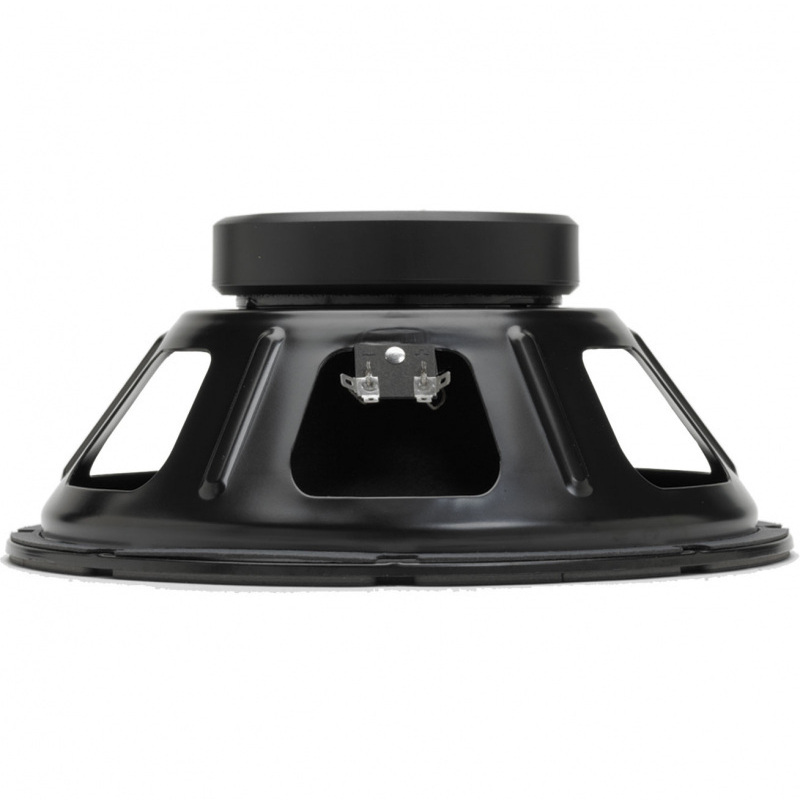

Eminence Legend GB128 8 Ohm
50W 12" Driver

Product Code: EMILEGGB12 | Brand: Eminence | Model: LEGEND GB128
Eminence Legend GB128 8 Ohm

Eminence Legend GB128 8 Ohm Eminence Legend GB128 8 Ohm Eminence Legend GB128 8 Ohm Eminence Legend GB128 8 Ohm
£107.52
£89.60 ex VAT
2-3 £105.91 ea.4-7 £104.29 ea.8+ £102.14 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
Eminence Legend GB128 50W 12" Driver

The Eminence Legend GB128 guitar speaker helps clean up your act. Cleaner British voiced tone with a full low end, warm, throaty mids and a very open top end. Turn up the volume and turn back the clock. This has a Private Jack flavour but with improved definition; thick and smooth with lots of crunch. Good for Classic Rock, Blues and Country.

Specifications:

  • Nominal Basket Diameter: 12", 305mm
  • Nominal Impedance*: 8 ohms
  • Power Rating, Watts: 50W, Music Program: N/A
  • Resonance: 86Hz
  • Usable Frequency Range: 80Hz - 5.1kHz
  • Sensitivity: 101.3dB
  • Magnet Weight: 38 oz.
  • Gap Height : 0.312", 7.92mm
  • Voice Coil Diameter: 1.75", 44mm


Thiele & Small Parameters

  • Resonant Frequency (fs):86Hz
  • DC Resistance (Re): 6.37 Ohms
  • Coil Inductance (Le): 0.64mH
  • Mechanical Q (Qms): 19.54
  • Electromagnetic Q (Qes): 0.67
  • Total Q (Qts): 0.65
  • Compliance Equivalent Volume (Vas): 43.9 liters / 1.55 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd): 40.5cc
  • Mechanical Compliance of Suspension (Cms): 0.12mm/N
  • BL Product (BL): 12 T-M
  • Diaphragm Mass Inc. Airload (MMs): 28 grams
  • Efficiency Bandwidth Product (EBP): 128
  • Maximum Linear Excursion (Xmax): 0.8mm
  • Surface Area of Cone (Sd): 506.7 cm2
  • Maximum Mechanical Limit (Xlim): N/A


Mounting Information:

  • Recommended Enclosure Volume: Sealed - Acceptable, Vented - Acceptable
  • Driver Volume Displaced: 0.071 cu.ft / 2 liters
  • Overall Diameter: 12.03", 305.6mm
  • Baffle Hole Diameter:11.07", 281.2mm
  • Front Sealing Gasket: Fitted as standard
  • Rear Sealing Gasket: Fitted as standard
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 11.59", 294.4mm
  • Depth: 5.1", 129.5mm
  • Net Weight:8.1 lbs, 3.67 kg
  • Shipping Weight: 10.1 lbs, 4.58 kgs


Materials of Construction:

  • Coil Construction: Copper voice coil
  • Coil Former: Paper former
  • Magnet Composition: Ferrite magnet
  • Core Details: Non-vented core
  • Basket Materials: Pressed steel basket
  • Cone Composition: Paper Cone
  • Cone Edge Composition: Paper cone edge
  • Dust Cap Composition: Zurette dust cap



Detailed specifications unavailable, please EMAIL the sales office for additional information.
