Eminence - Ragin Cajun
Patriot Series - 75W 10" 8 ohm - American Rock - Blues and Country

Product Code: EMIPATRAGIN | Brand: Eminence

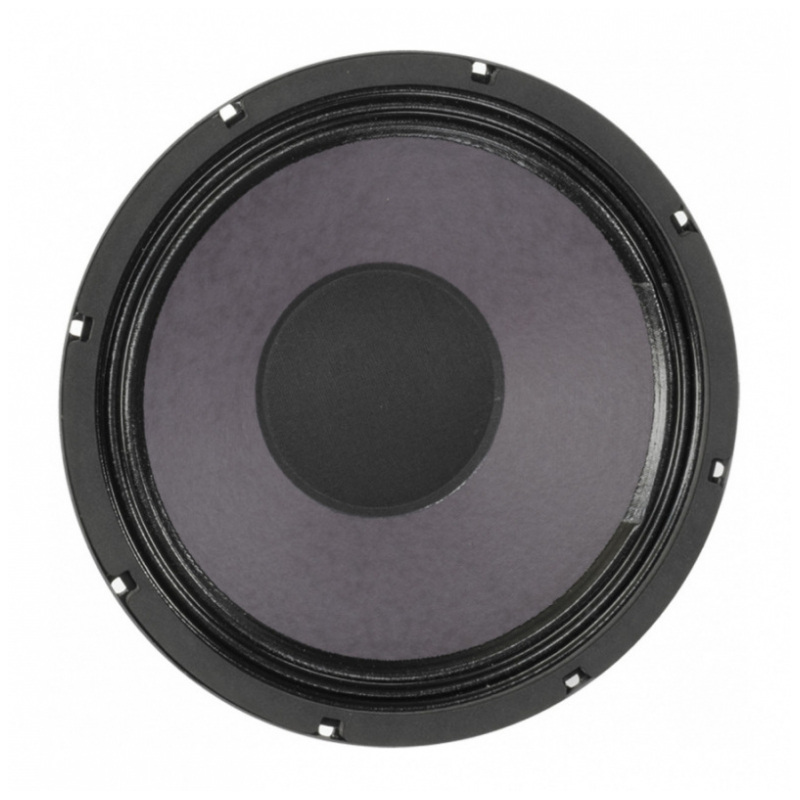

Eminence - Ragin Cajun

Eminence - Ragin Cajun Eminence - Ragin Cajun Eminence - Ragin Cajun Eminence - Ragin Cajun
£105.73
£88.11 ex VAT
2-3 £104.15 ea.4-7 £102.56 ea.8+ £100.45 ea.
Login to see JAM Club pricing
Not a member? Join Now
£9.92 DELIVERY to mainland UK.
Eminence - Ragin Cajun

Meet the Eminence Ragin Cajun 10" Guitar Speaker - the secret sauce to giving your tunes a spicy kick! This bad boy brings a dose of Americana to your sound, rocking a loud, touch-sensitive vibe with a sweet bell-like top end. And boy, does it pack a punch - a 30 oz. ceramic magnet, 75 watts at 8 ohms, and a sensitivity of 100dB!

Switching out the stock speaker in a Vox Valvatronics VT40 was a game-changer for one user. The Ragin Cajun delivered a warm sound, waving goodbye to the jangly Brit vibes. Plus, it handles power like a champ - a clear upgrade from the Vox 'Original' sound.

If you're jamming with a Fender Frontman 25R, the Ragin Cajun is your ticket to tonal paradise. Quick installation- turned a practice amp into a band practice beast. Crystal-clear tones, loud as your neighbor's yappy dog - and construction quality that's rock-solid. Major thumbs up from the upgrade squad!

Another happy camper upgraded a Fender Frontman 25R. The stock speaker was a vibe killer at high volumes, but enter the Ragin Cajun, and it's like the amp did a 180. Cleans shine, gain gets bluesy, and volume? Prepare to be amazed - it's like your 25-watt amp hit the gym and came out sounding like a 50-watt legend. Club gigs? No sweat for the Cajun.

But hold up, the Ragin' Cajun isn't just a replacement speaker; it\'s a tone magician. Tossed into a 1973 Ampeg GT10, it became the touch-sensitive maestro, dancing to various music styles and amp vibes. Bad tone? Not on its watch. The verdict: the Cajun isn't just a speaker; it's a musical sidekick, making everything sound better.

  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance* 8 ohms
  • Power Rating**
  • Watts 75W
  • Music Program N/A
  • Resonance 84Hz
  • Usable Frequency Range 70Hz - 5kHz
  • Sensitivity*** 100dB
  • Magnet Weight 30 oz.
  • Gap Height 0.31", 7.92mm
  • Voice Coil Diameter 1.5", 38.1mm

Thiele & Small Parameters


  • Resonant Frequency (fs) 84Hz
  • DC Resistance (Re) 7.3
  • Coil Inductance (Le) 0.39mH
  • Mechanical Q (Qms) 10.8
  • Electromagnetic Q (Qes) 0.68
  • Total Q (Qts) 0.64
  • Compliance Equivalent Volume (Vas) 34.1 liters / 1.2 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 18cc
  • Mechanical Compliance of Suspension (Cms) 0.18mm/N
  • BL Product (BL) 11.5 T-M
  • Diaphragm Mass Inc. Airload (MMs) 20 grams
  • Efficiency Bandwidth Product (EBP) 156
  • Maximum Linear Excursion (Xmax) 0.5mm
  • Surface Area of Cone (Sd) 366.1 cm2
  • Maximum Mechanical Limit (Xlim) N/A

Mounting Information


  • Recommended Enclosure Volume
  • Sealed Acceptable
  • Vented Acceptable
  • Driver Volume Displaced 66.9 cu.in. / 1.1 liters
  • Overall Diameter 10.11", 256.8mm
  • Baffle Hole Diameter 9.13", 231.8mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 4.3", 109mm
  • Net Weight 6.4 lbs, 2.9 kg
  • Shipping Weight 8.2 lbs, 3.7 kgs

Materials of Construction


  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Non-vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Paper cone edge
  • Dust Cap Composition Zurette dust cap
