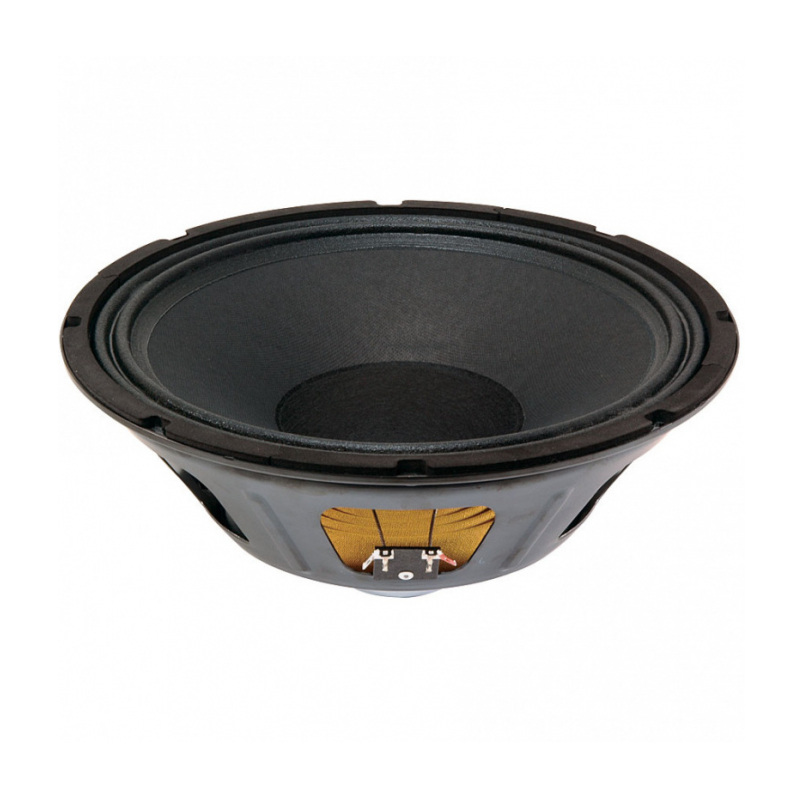

Eminence Basslite S2012 12" Bass Speaker
Specification:
- Nominal Basket Diameter 12", 304.8mm
- Nominal Impedance* 8 ohms
- Power Rating: Watts 150W, Music Program 300W
- Resonance 48Hz
- Usable Frequency Range 49Hz - 4.5kHz
- Sensitivity*** 99dB
- Magnet Weight 4 oz.
- Gap Height 0.28", 7.2mm
- Voice Coil Diameter 2", 50.8mm
Thiele & Small Parameters:
- Resonant Frequency (fs) 48Hz
- DC Resistance (Re) 5.1
- Coil Inductance (Le) 0.43mH
- Mechanical Q (Qms) 5.5
- Electromagnetic Q (Qes) 0.53
- Total Q (Qts) 0.48
- Compliance Equivalent Volume (Vas) 91 liters / 3.2 cu.ft.
- Peak Diaphragm Displacement Volume (Vd) 270cc
- Mechanical Compliance of Suspension (Cms) 0.24mm/N
- BL Product (BL) 11.7 T-M
- Diaphragm Mass Inc. Airload (MMs) 46 grams
- Efficiency Bandwidth Product (EBP) 91
- Maximum Linear Excursion (Xmax) 5.2mm
- Surface Area of Cone (Sd) 519.5 cm2
- Maximum Mechanical Limit (Xlim) 9.8mm
Mounting Information:
- Recommended Enclosure Volume, Sealed: Acceptable, Vented: Acceptable
- Driver Volume Displaced 102.2 cu.in. / 1.67 liters
- Overall Diameter 12.03", 305.5mm
- Baffle Hole Diameter 10.95", 278.1mm
- Front Sealing Gasket Fitted as standard
- Rear Sealing Gasket N/A
- Mounting Holes Diameter 0.25", 6.4mm
- Mounting Holes B.C.D. 11.59", 294.3mm
- Depth 5.1", 130mm
- Net Weight 4.1 lbs, 1.9 kg
- Shipping Weight 5.8 lbs, 2.6 kgs
Materials of Construction:
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Neodymium magnet
- Core Details Non-vented core
-
Basket Materials Pressed steel basket
- Cone Composition Paper Cone
- Cone Edge Composition Cloth cone edge
- Dust Cap Composition Solid composition felt dust cap
Detailed specifications unavailable, please EMAIL the sales office for additional information.
