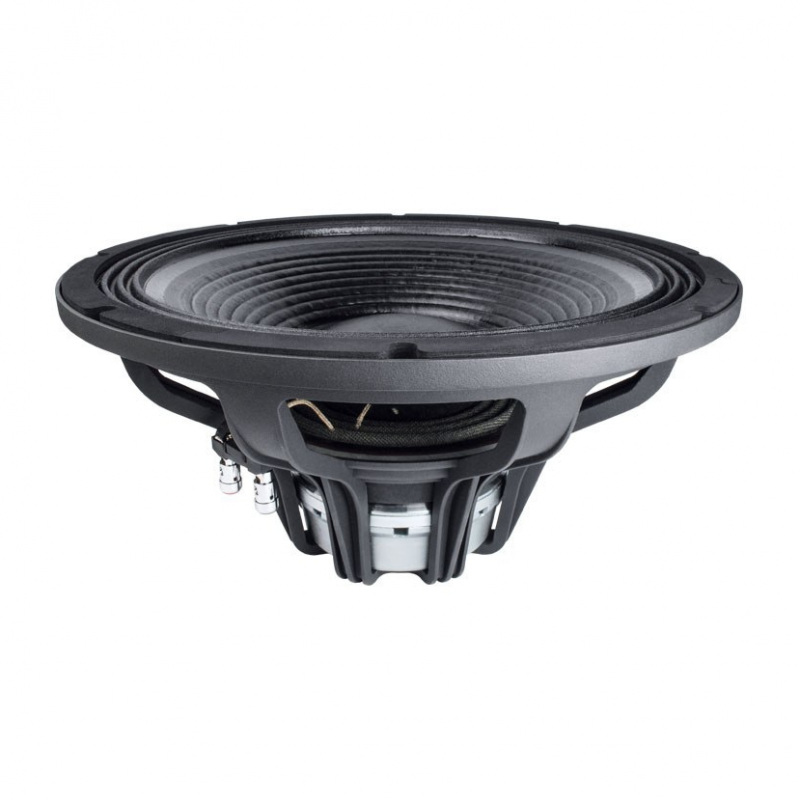

Faital Pro 15XL1200 15" 1400W 8 Ohm Loudspeaker
NOMINAL SPECIFICATIONS
- Nominal Diameter 380 mm (15 in)
- Overall Diameter 393 mm (15.47 in)
- Bolt Circle Diameter 374 mm (14.72 in)
- Baffle Cutout Diameter 354 mm (13.94 in)
- Depth 194.3 mm (7.65 in)
- Flange and Gasket Thickness 13.7 mm (0.54 in)
- Net Weight 7.3 Kg (16.1 lb)
- Shipping Box
- (Single Carton Box) 430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in)
- Shipping Weight 8.6 Kg (19.0 lb)
Technical specifications
- Nominal Diameter: 380 mm (15in)
- Overall Diameter: 393 mm (15.47in)
- Bolt Circle Diameter: 374 mm (14.72in)
- Baffle Cutout Diameter: 354 mm (13.94in)
- Overall Depth: 194.3 mm (7.65in)
- Flange/Gasket Thickness: 13.7 mm (0.54in)
- Impedance: 8 ohm
- Minimum Impedance: 6.4 ohm
- AES Power: 1400 W
- Program Power: 2800 W
- Sensitivity: 95 dB
- Frequency Range: 40:2000 Hz
- Voice Coil Diameter: 100 mm (4in)
- Voice Coil Material: Cu
- Voice Coil Former: Glass Fiber
- Voice Coil Depth: 28.9 mm (1.14in)
- Magnetic Gap Depth: 12 mm (0.47in)
- Surround Type: Triple
- Spider Profile: 2x non-adjacent symmetrical variable height waves
- Chassis Material: Aluminum
- Magnet Material: Neodymium Ring
- Demodulating Ring: Aluminum Ring
- Flux Density: 1.1 T
- Driver Displacement Volume: 4.1 L (0.145ft^3)
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Resonance (Fs) - 40 Hz
- DC Resistance (Re) - 5 Ohm
- Electrical Q (Qes) - 0.41
- Mechanical Q (Qms) - 10.9
- Total Q (Qts) - 0.40
- Compliance Equivalent Volume (Vas) - 86.9 L
- Diaphragm Area (Sd) - 841 cm2
- Maximum Linear Excursion (Xmax) - 12.45 mm
- Maximum Mechanical Excursion (Xdamage) - 24 mm
- Moving Mass - System (Mms) - 180.0 g
- Force Factor (BL) - 23.6 Tm
- Voice Coil Inductance (Le) - 1.34 mH
- Moving Mass - Diaphragm (Mmd) - 152.4 g
- Compliance (Cms) - 0.09 mm/N
- Mechanical Resistance (Rms) - 4.2 Kg/s
- Reference Efficiency (Eta Zero) - 1.33 %
- Efficiency Bandwidth Product (EBP) - 98
Shipping Information
- Net Weight: 7.3 kg (16.1lb)
- Shipping Weight: 8.6 kg (19.0lb)
- Shipping Box: 430 x 427 x 236 mm
Notes
1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
