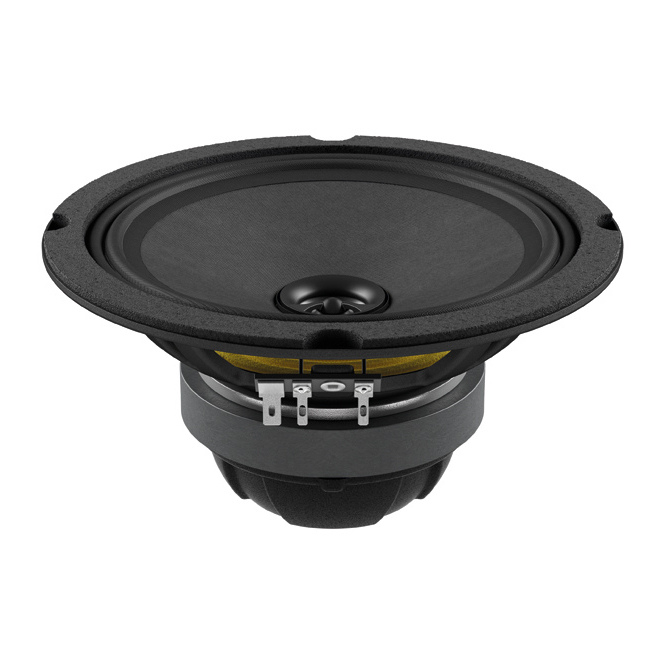

Lavoce CSF061.21 6.5" Coaxial Driver 50W 8 Ohm

Technical specifications

• Nominal Diameter: 165 - 20 mm (6.5 - 0.7 in)
• Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power: 50 W
• Program Power: 100 W
• Sensitivity: 92.5 dB
• Frequency Range: 90 - 22000 Hz
• Voice Coil Material: Copper
• Voice Coil Former: Polyimide
• Voice Coil Depth: 8 mm (0.31 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Cone Material: Water Resistant Treated Paper - PEI
• Surround Material: Polycotton
• Chassis Material: Steel
• Magnet Material: Ferrite - Neodymium
• Magnet Dims: 90 x 40 x 13 mm
• Driver Displacement Volume: 8 l (0.28 ft³)
• Recommended Enclosure: 6.2 l (0.22 ft³)
• Recommended Tuning: Sealed Hz

Shipping Information

• Net weight: 0.9 kg (2.0lb)
• Multipack size (WxDxH): 380 x 353 x 216 mm (14.9 x 13.9 x 8.5in)
• Multipack weight: 9.7

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60� x 40� horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
