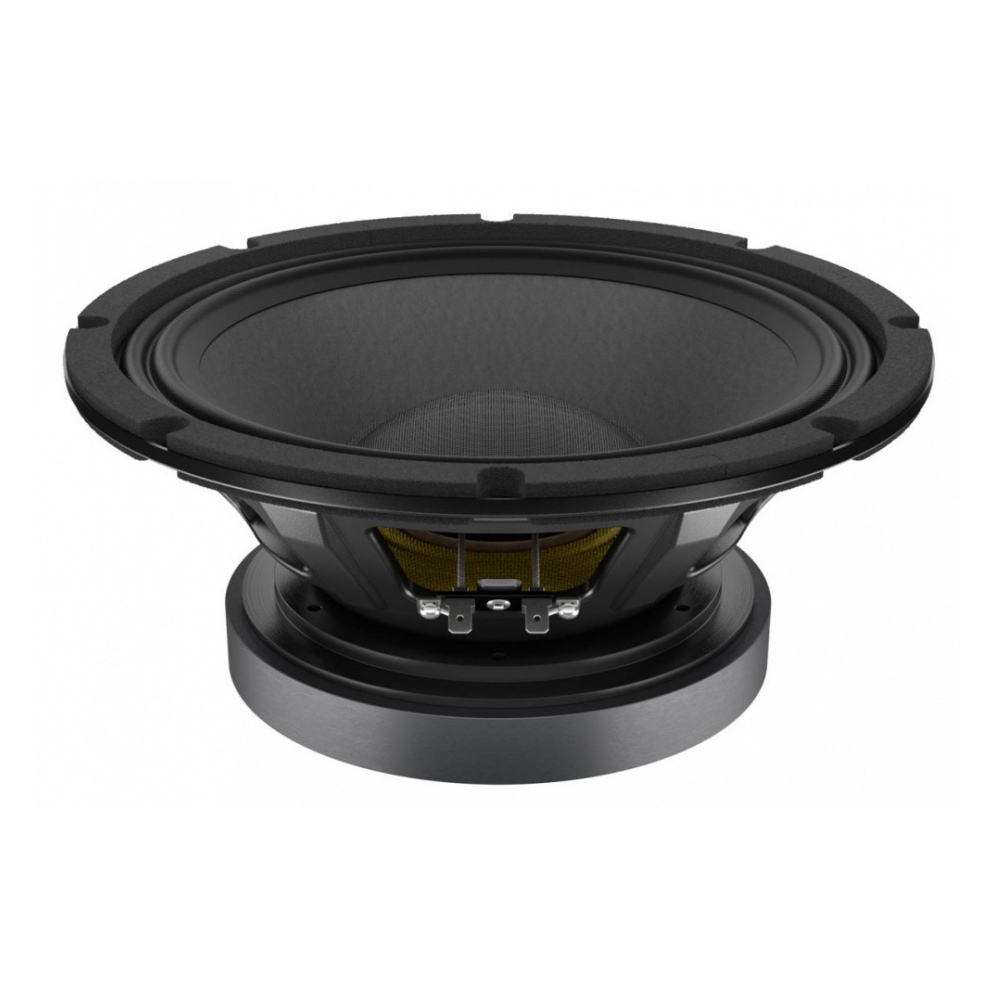

Lavoce CSF102.50K 10" Co-axial Driver 300W / 60W 8 Ohm
Key features
- 2.5 Inch LF Edgewound CCA voice coil
- 1.7 Inch HF Edgewound CCA Voice Coil
- 97 dB/SPL Sensitivity
- 600 Watt Program power handling
- FEM Optimized common motor, phaseplug and diaphragm
- 65 - 20000 Hz Frequency range
- 70° Nominal coverage
- Polyimide HF diaphragm
- Double aluminium demodulating rings
- Compact and lightweight design
Technical specifications
- Nominal Diameter: 250 mm (10 in.)
- Impedance: 8 Ohm
- Minimum Impedance: 7.6 Ohm
- AES Power: 60 W
- Program Power: 120 W
- Sensitivity: 105 dB
- Frequency Range: 1000 - 20000 Hz
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Depth: 16.6 mm (0.65 in.)
- Magnetic Gap Depth: 8 mm (0.31 in.)
- Surround Material: Polyimide
- Chassis Material: Steel
- Magnet Material: Ferrite
- Magnet Dims: 175 x 85 x 22 mm
- Flux Density: 1.75 T
- Driver Displacement Volume: 1.9
GENERAL SPECIFICATIONS - HF
- l (0.067 ft3)
- Recommended Crossover: 1600 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Maximum Linear Excursion (Xmax) - 6.25 mm
- Maximum Mechanical Excursion (Xmech) - 10.25 mm
Shipping Information
- Net weight: 4.9 kg (10.9lb.)
- Multipack size (1) W x D x H: 304 x 281 x 176 mm (12 x 11.1 x 6.9in.)
- Multipack weight: 5.7 kg (12.5lb.)
