Lavoce FSN041.00 - 4" 40W 8 Ohm Loudspeaker
Key features
- 1 INCH COPPER VOICE COIL
- 91 dB/SPL SENSITIVITY
- 80 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- COPPER RING FOR EXTENDED FREQUENCY RESPONSE
- RESONANCE FREE AND HEAVY DUTY STEEL BASKET DESIGN
- RUBBER SURROUND MATERIAL
Technical specifications
- Nominal Diameter: 100 mm (4in)
- Impedance: 8 Ohm
- Minimum Impedance: 7 Ohm
- AES Power: 40 W
- Program Power: 80 W
- Sensitivity: 91 dB

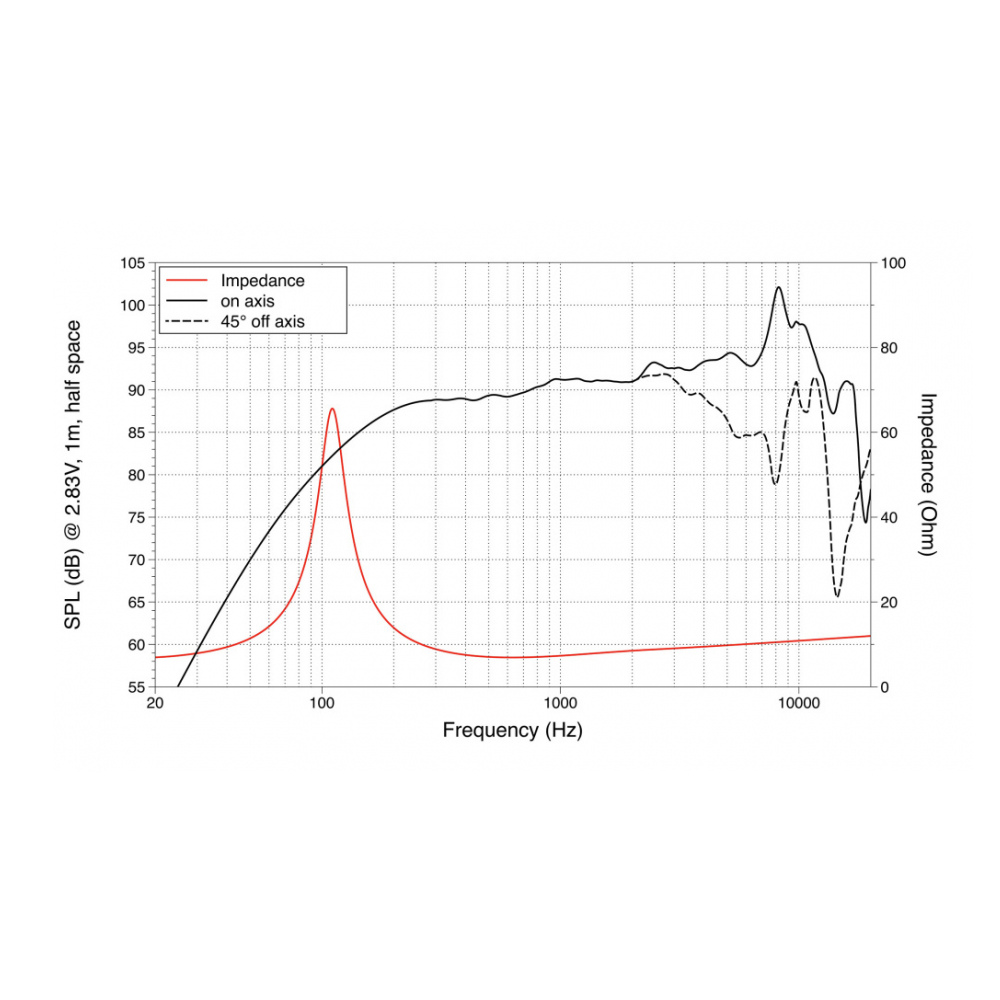

- Frequency Range: 110 -18000 Hz
- Voice Coil Material: Copper
- Voice Coil Former: Polyimide
- Voice Coil Depth: 6.4 mm (0.25in)
- Magnetic Gap Depth: 4 mm (0.16in)
- Cone Material: Water Resistant Treated Paper
- Surround Material: Rubber
- Chassis Material: Steel
- Magnet Material: Neodymium
- Magnet Dims: 65 x 32 x 14 mm
- Driver Displacement Volume: 0.09 l (0.003ft3)
- Recommended Enclosure: 3.37 l (0.119ft3)
- Recommended Tuning: 110 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- DC Resistance (Re) - 8 Ohm
- Resonance (Fs) - 111 Hz
- Moving Mass - System (Mms) - 4.56 g
- Compliance (Cms) - 0.454 mm/N
- Force Factor (BL) - 6.9 Tm
- Mechanical Q (Qms) - 3.97
- Electrical Q (Qes) - 0.4
- Total Q (Qts) - 0.37
- Compliance Equivalent Volume (Vas) - 1.88 L
- Voice Coil Inductance (Le) - 0.028 mH
- Diaphragm Area (Sd) - 54.11 cm2
- Reference Efficiency (Eta Zero) - 0.61 % %
- Efficiency Bandwidth Product (EBP) - 18
- Maximum Linear Excursion (Xmax) - 2.2 mm
- Maximum Mechanical Excursion (Xmech) - 3.2 mm
Shipping Information
- Net weight: 0.39 kg (0.87lb)
- Multipack size (WxDxH): 415 x 370 x 160 mm (16.3 x 14.6 x 6.3in)
- Multipack weight: 9.6 kg (21.5lb)
- Multipack Quantity: 18
