Lavoce :: Lavoce Loudspeaker Drivers :: Lavoce 13.5 Inch :: Lavoce WAN143.00
Lavoce

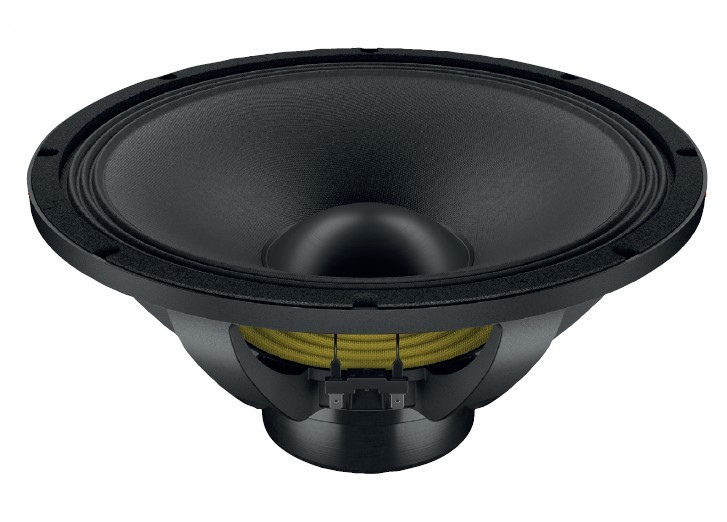

Lavoce WAN143.00 13.5" Speaker Driver 500W 8 Ohm

Product Code: LAVWAN14300AF Brand: Lavoce Model: WAN143.00
Lavoce WAN143.00 13.5 inch Speaker Driver 500W 8 Ohm

This is a new product, which is not yet available.
Preliminary information for reference only.
Specifications may change.
Lavoce WAN143.00 13.5" Speaker Driver 500W 8 Ohm

Key features


3 inch copper voice coil
98 db/spl sensitivity
1000 watt program power handling
Fem optimized motor and suspensions
Optimized cooling system
Triple roll surround

Technical specifications


  • Nominal Diameter: 340 mm (13.5 in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 6.3 Ohm
  • AES Power: 500 W
  • Program Power: 1000 W
  • Sensitivity: 98 dB
  • Frequency Range: 45 - 3000 Hz
  • Voice Coil Diameter: 75 mm (3 in)
  • Voice Coil Material: Copper
  • Voice Coil Former: Glass Fiber
  • Voice Coil Depth: 20.3 mm (0.8 in)
  • Magnetic Gap Depth: 10.5 mm (0.41 in)
  • Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
  • Surround Material: Polycotton
  • Chassis Material: Aluminium
  • Magnet Material: Neodymium
  • Magnet Dims: 75.4 x 10 mm
  • Driver Displacement Volume: 3.2 l (0.11 ft3)
  • Recommended Enclosure: 58.6 l (2.1 ft3)
  • Recommended Tuning: 50 Hz

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Maximum Linear Excursion (Xmax) - 7.5 mm
  • Maximum Mechanical Excursion (Xmech) - 13.4 mm

Shipping Information


  • Net weight: 5.1 kg (11.2lb)
  • Multipack size (WxDxH): 397 x 397 x 210 mm (15.6 x 15.6 x 8.3in)
  • Multipack weight: 6.3 kg (13.9lb)
