P-Audio's truly outstanding E-series drivers represent excellent value for money - and we're so confident in them, we're prepared to back them up with a three year warranty for all of our UK mainland sales. The E-18LF is a high power loudspeaker designed for high impact, live performance bass applications. With a lower limit of 40Hz, the E-18LF is the ideal driver for your touring subwoofer.
If you need your bottom end to reach even lower, check out the 800W E18-ELF, a driver with extra-low output specifically designed for bass-heavy recorded music playback. If you're working with a mix of live music and playback of prerecorded material, there's the E18-600S, one of our most popular all-round bass drivers - and for the box builder on a budget who doesn't need to be able to crank quite so many Watts, you'll struggle to beat the E18-400S - one of the most pocket-friendly professional-standard audio drivers we've ever been able to offer, with a performance that's hard to believe for the price. If none of this cuts it for you though, and you really don't think that an 18 is enough - you'll probably want to take a look at P-Audio's range of earth-shattering, high power 21" drivers...

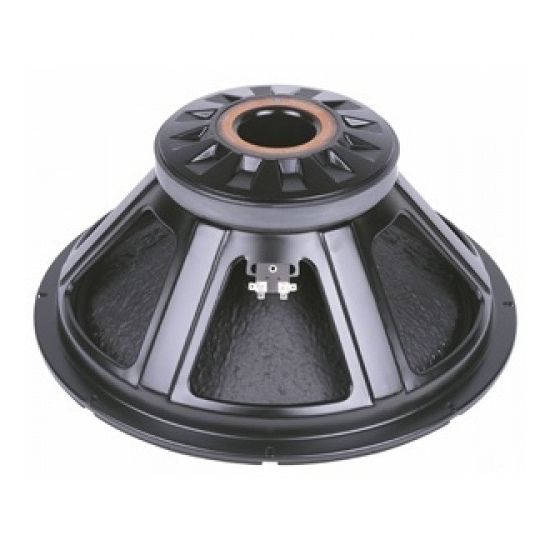

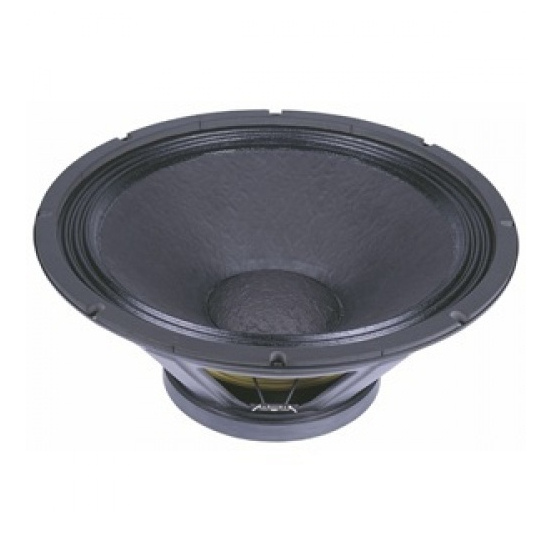

The P Audio E Series II represents a new dimension in loudspeaker performance and value. The dream of high acoustic output and high performance can be realized through innovative engineering and manufacturing methods. The E-18LF is an 18 inch (460mm) diameter low frequency sub woofer that features very high power handling and reliability. The E-18LF uses a rigid stamped steel chassis mated to a large format Ferrite based permanent magnetic system. The operating bandwidth of 40Hz to 125Hz makes this loudspeaker ideal for portable sound reinforcement and installed public address systems where high impact bass and sub bass are specified.
The large format 4 inch (101.6mm) diameter voice coil design provides both high power handling and high reliability for high input program material. The high conductivity copper wire is coupled to the narrow magnetic gap magnet structure to provide optimized performance parameters that combine both excellent bandwidth and excellent efficiency.
The E-18LF is designed for applications such as mobile DJ, dance club, medium format touring systems and general purpose sub woofers. If extended sub bass is specified P Audio also offers the E-18ELF with a rated bandwidth of 30Hz to 100Hz. Because efficiency bandwidth products require a relationship between efficiency and low frequency response the E-18LF offers superior 1 watt at 1 meter sensitivity as compared to the E-18ELF.
General Specifications
- Nominal Impedance 8 Ohm
- Power 800 Watt (rms)
- SPL 1W@1M average sensitivity 97 dB

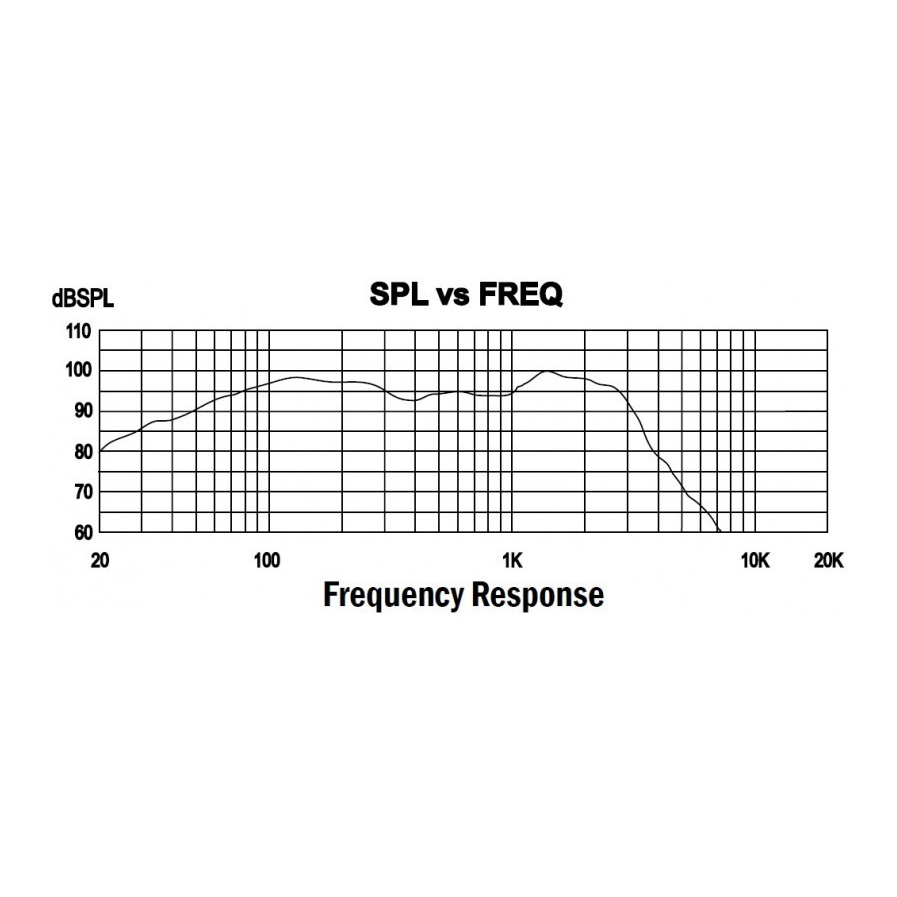

- Frequency Response 40Hz - 125Hz

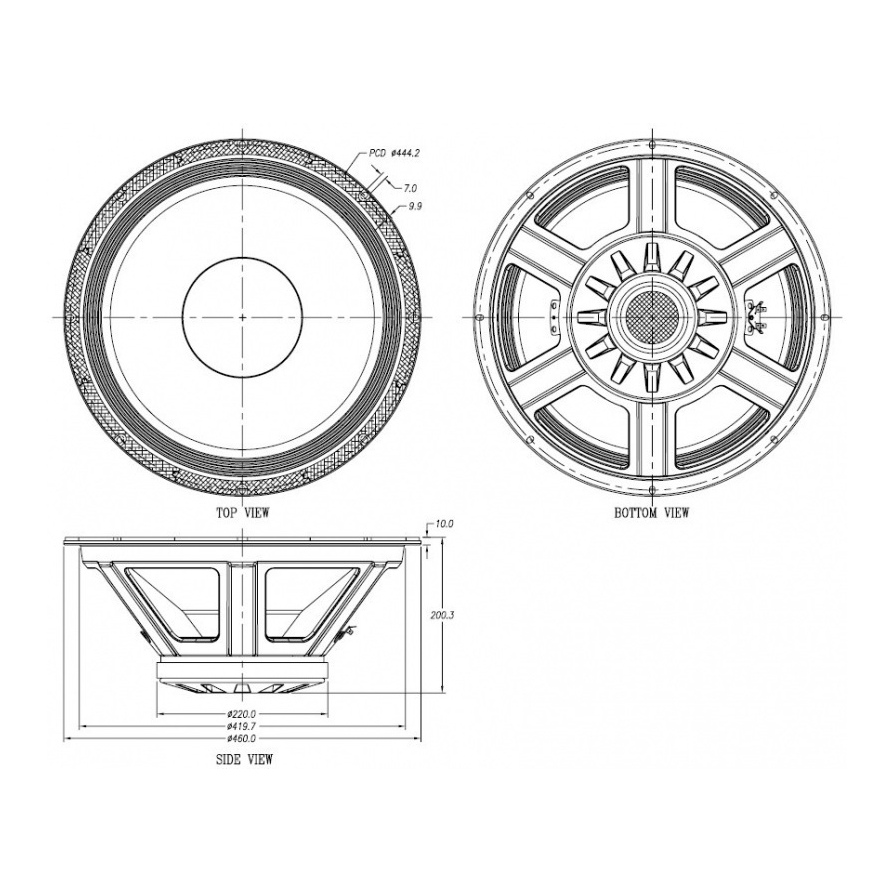

- Dimension Dia x H (cm) 46 x 20
- Net Weight 10.6 kg (23.3 lbs)
- Shipping Weight 12.6 kg (27.7 lbs)
- Packing Dimension H x W x D (cm) 49.5 x 49.5 x 24.5 (2.1cu.ft)
- 19.5" x 19.5" x 9.7"
Physical Specifications
- Magnet type Ferrite
- Voice Coil Diameter 101.6 mm (4 inch)
Thiele/small Parameters
- Resonance Frequency Fs 35.3 Hz
- DC. Resistance Re 6.0 Ohm
- Coil Inductance Le 0.82 mH
- Mechanical Q Factor Qms 7.44
- Electrical Q Factor Qes 0.54
- Total Q Factor Qts 0.5
- BL Product BL 22.69 Tm
- Effective Moving Mass Mms 203.75 g
- Equivalent Cas Air-Load Vas 182.7 Liters
- Effective Piston Area Sd 0.1134 Sqm
- Half-Space Efficiency Eff 1.42 %
- Airgap Height Hag 8.0 mm
- Voice Coil Height Hvc 20.0 mm
- Voice Coil Overhang Xmax 6.0 mm
