RCF CD850 1.4 110W AES 1.4" Bolt On Compression Driver 8 Ohm
THIS ITEM IS END-OF-LINE AND DUE TO BE PHASED OUT
Once our stock has been depleted we will not be able to order more.

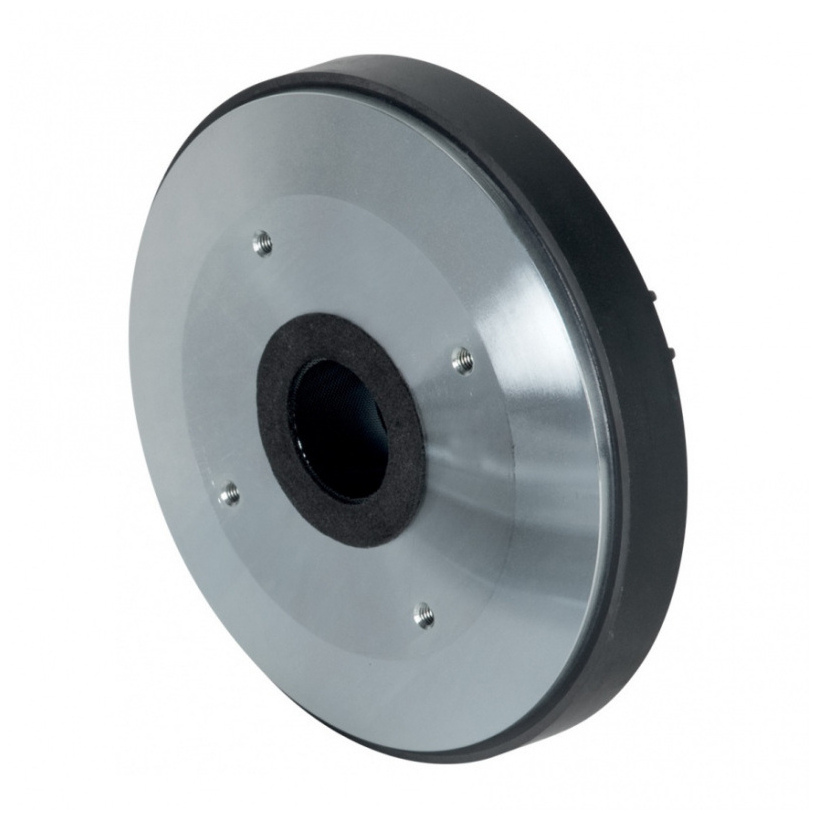

The CD850 1.4 is a high performance 3.0-inch diaphragm compression driver with a 1.4 inch exit throat featuring several state of the art technologies.
The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.
Features:
- 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Ceramic Magnet Assembly
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
This product currently has limited availability, the stock amount showing is all that is available. If you try to order a quantity greater than what is showing in stock we will not be able to fulfill your order.
General Specifications:
- Exit Throat Diameter: 35.5 / 1.4 mm/inch
- Rated Impedance: 8 Ω
- Power handling capacity continuous program*: 220 W AES
- Power handling capacity AES**: 110 W AES
- Sensitivity: 109 dB
- Frequency Range: 500 Hz - 20000 Hz
- Diaphragm Material: Pure titanium
- Suspension Material: Polyester
- Suspension Design: Flat Minimum
- Impedance: (at 3.5kHz) 8.5 Ω
- Voice Coil Diameter: 74.4 / 3.0 mm/inch
- Voice Coil Material: Edgewound aluminium
- Voice Coil Former Design: Straight kapton
- Number of layers: 1 - outside
- BL Factor: 12.3 T · m
- Flux Density: 1.9 T
- Phase Plug Design: 3 slots
- Phase Plug Material: Composite
- Magnetics: Ceramic
- Voice Coil Demodulation: Copper ring
Mounting information :
- Overall diameter: 180 / 7.1 mm/inch
- Overall height: 62 / 2.4 mm/inch
- Mounting 4 × 5 mm holes at 90°: 101.6 / 4.0 mm/inch
- Net weight: 5 / 11 kg/lbs
Shipping information :
- Shipping weight: 5.5 / 12.1 kg/lbs
* Continuous above 1.2 kHz
** AES above 1 kHz
