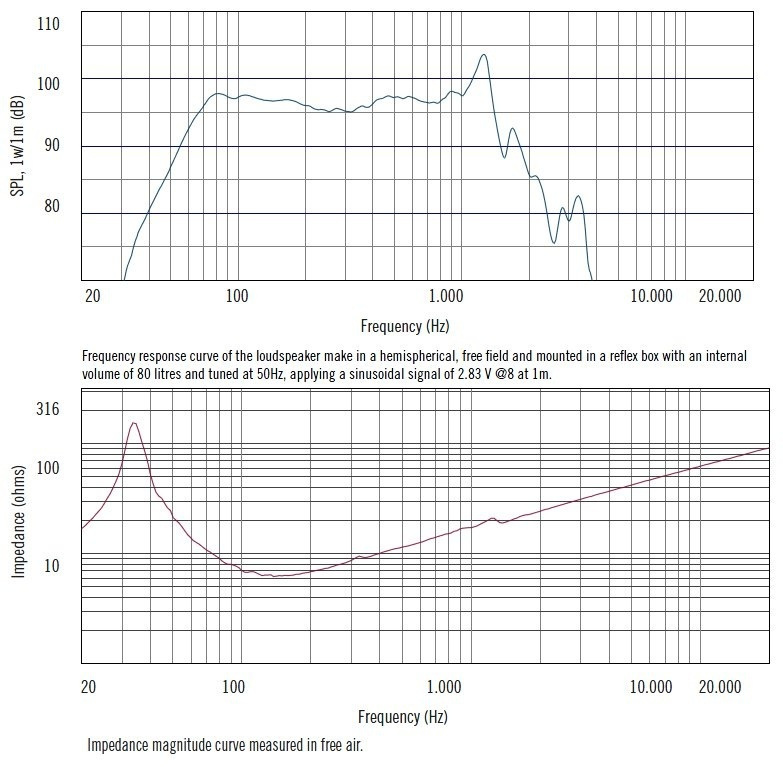

Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range.
The LF15X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features:
- 4-inch, fiberglass inside/outside copper voice coil
- 3000W continuous program power handling
- 96.5 dB Sensitivity
- 30 Hz - 1.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
This is NOT a stock item, we can usually order this in and have stock within 50-54 working days. If you require this item urgently, please contact a member of staff to confirm availability.
General Specifications:
- Nominal Diameter: 380 mm / 15 inch
- Rated Impedance: 8 O
- Program Power: 3000 W AES
- Power handling capacity: 1500 W AES
- Sensitivity: 96.5 dB
- Frequency Range: 30 Hz - 1500 Hz
- Effective Piston Diameter: 340 mm / 13.4 inch
- Max Excursion Before Damage (peak to peak): 50 mm / 1.97 inch
- Minimum Impedance: 6.3 O
- Voice Coil Diameter: 100 mm / 4 inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 30 mm / 1.18 inch
- Number of layers: 2
- Kind of layer: inside / outside
- Top Plate Thickness: 15 mm / 0.6 inch
- Cone Material: No pressed pulp
- Cone Design: Straight
- Surround Material: Polycotton
- Surround Design: Triple roll
Thiele/Small Parameters:
- Resonance frequency: 34 Hz
- DC resistance: 5.5 O
- Mechanical factor: 7.6
- Electrical factor: 0.30
- Total factor: 0.29
- BL Factor: 26.5 T ยท m
- Effective Moving Mass: 170 g
- Equivalent Cas air load: 146 liters
- Effettive piston area: 0.091 m2
- Max. linear excursion (mathematical): 11.5 mm
- Voice coil inductance @ 1kHz: 2.5 mH
- Half-space efficiency: 1.90%
Mounting information:
- Overall Diameter: 393 mm / 15.5 inch
- Bolt Circle Diameter: 371-376 mm / 14.6-14.8 inch
- Bolt Hole Diameter: 6.5 mm / 0.3 inch
- Front Mount Baffle Cut-out: 354 mm / 13.9 inch
- Rear Mount Baffle Cut-out: 354 mm / 13.9 inch
- Depth: 145 mm / 5.7 inch
- Volume occupied by the driver: 4.3 litres / 0.15 ft3
- Net Weight: 12.6 kg / 27.7 lbs
Shipping information:
- Shipping weight: 13.6 kg / 29.9 lbs
