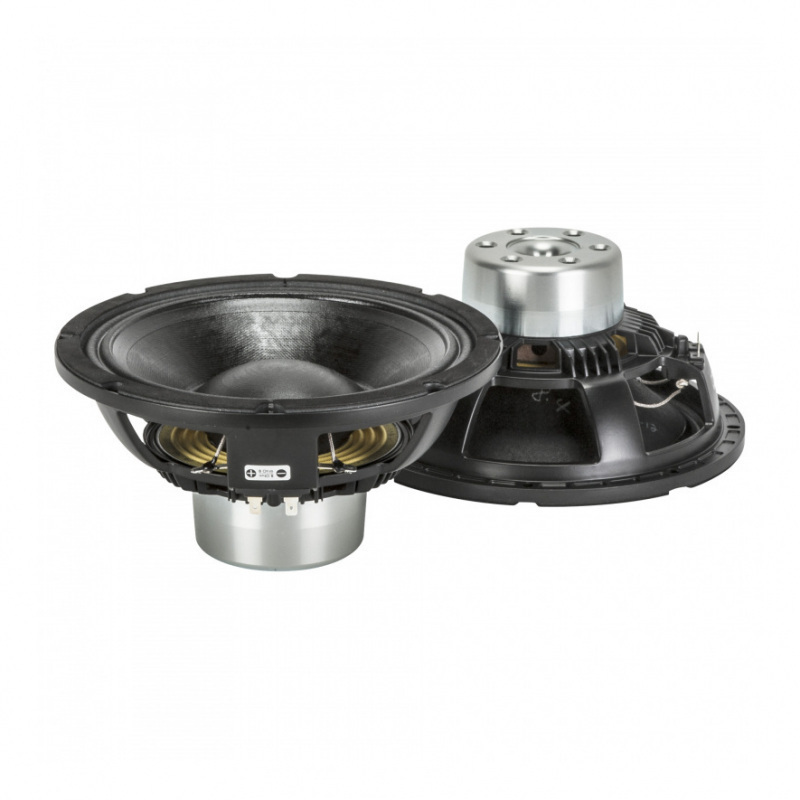

RCF MB10N305 - 10" 500W 8 Ohm
The MB10N305 is a hypervented neo, high linearity mid-bass.
The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Applications:
The MB10N305 is ideal where is required high power handling, high efficiency and perfect linearity.
Is the ideal 10" mid-bass woofer for reference high fidelity, high performance midbass application in compact 2 way system.
Main Features:
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz – 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
General Specifications
- Nominal Diameter: 260 mm / 10 inch
- Rated Impedance: 8 Ohms
- Program Power: 1000 W AES
- Power handling capacity: 500 W AES
- Sensitivity: 97.5 dB
- Frequency Range: 55 Hz - 3500 Hz
- Effective Piston Diameter: 210mm / 8.27inch
- Max Excursion Before Damage (peak to peak): 34 mm / 1.34 inch
- Minimum Impedance: 6.9 Ohms
- Voice Coil Diameter: 76 mm / 3.0 inch
- Voice Coil Material: Aluminium
- Voice Coil Winding Depth: 14 mm / 0.55 inch
- Number of layers: 1
- Kind of layer: inside / outside
- Top Plate Thickness: 10 mm / 0.39 inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M-roll
Thiele/Small Parameters
- Resonance frequency: 60 Hz
- DC resistance: 5.6 Ohms
- Mechanical factor: 4.0
- Electrical factor: 0.24
- Total factor: 0.23
- BL Factor: 18.5 T · m
- Effective Moving Mass: 36.5 g
- Equivalent Cas air load: 31 litres
- Effective piston area: 0.035 m²
- Max. linear excursion (mathematical): 5.0 mm
- Voice - coil inductance @ 1kHz: 0.9 mH
- Half-space efficiency: 2.90%
Mounting information
- Overall Diameter: 260 mm / 10.24 inch
- Bolt Circle Diameter: 241-246 mm / 9.5-9.6 inch
- Bolt Hole Diameter: 5.5 mm / 0.21 inch
- Front Mount Baffle Cut-out: 234 mm / 9.21 inch
- Rear Mount Baffle Cut-out: 234mm / 9.21inch
- Depth: 116 mm / 4.56 inch
- Volume occupied by the driver: 1.4 litres / 0.046 ft³
- Net Weight: 3.2 kg / 7.05 lbs
Shipping information
- Shipping weight: 4.0 kg / 8.76 lbs
