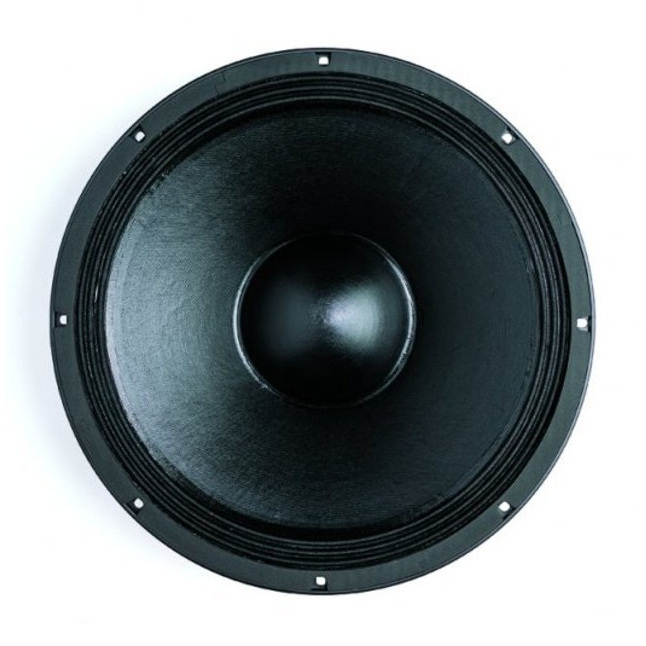

B&C 15NA100 15" 800W 8 Ohm Neodymium Loudspeaker Driver Push Fit
- 1600 W continuous program power capacity
- 100 mm (4 in) aluminium voice coil
- 45 - 2000 Hz response
- 98 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal diameter 380 mm (15.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 6.6 Ω
- Nominal power handling 800 W
- Continuous power handling 1600 W
- Sensitivity (1W/1m) 98.0 dB
- Frequency range 45 - 2000 Hz
- Voice coil diameter 100 mm (4.0 in)
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 23 mm (0.9 in)
- Magnetic gap depth 11 mm (0.43 in)
- Flux density 1.2 T
Design
- Surround shape Triple Roll
- Cone shape Exponential
- Magnet material Neodymium Inside Slug
- Spider Double Silicone
- Pole design T-Pole
- Woofer cone treatment WP Waterproof Front Side
- Recommended enclosure 80.0 dm3 (2.82 ft3)
- Recommended tuning 50 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Fs 47 Hz
- Re 5.1 Ω
- Qes 0.29
- Qms 6.1
- Qts 0.28
- Vas 88.0 dm3 (3.1 ft3)
- Sd 855.0 cm2 (132.5 in2)
- η₀ 2.9 %
- Xmax 10.0 mm
- Xvar 9.0 mm
- Mms 136 g
- Bl 26.3 Txm
- Le 1.2 mH
- EBP 162 Hz
Mounting and Shipping Info
- Overall diameter 393 mm (15.5 in)
- Bolt circle diameter 374 mm (14.7 in)
- Baffle cutout diameter 354.0 mm (13.9 in)
- Depth 180 mm (7.09 in)
- Flange and gasket thickness 16 mm (0.62 in)
- Air volume occupied by driver 6.0 dm3 (0.21 ft3)
- Net weight 9.3 kg (20.5 lb)
- Shipping units 1
- Shipping weight 10.8 kg (23.2 lb)
- Shipping box 500x500x250 mm (19.7x19.7x9.8 in)
