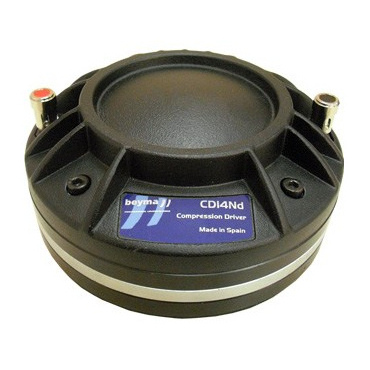

Beyma CD14Nd 80W 8 Ohm 1.4" Bolt On Neodymium Compression Driver
TECHNICAL SPECIFICATIONS:
CONSTRUCTIVE DETAILS:
- Throat diameter 36 mm 1.4 in
- Nominal impedance 8 Ohm
- Minimum impedance 7.6 ohm @ 3.5 kHz
- Re 5.3 ohm
- Power capacity 60 W AES above 800 Hz
- Program power 120 W above 800 Hz
- Sensitivity 108 dB 1W / 1m @ ZN coupled to TD-385
- Frequency range 600-17000 Hz
- Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
- Voice coil diameter 63.5 mm 2.5 in
- Flux density 1.7 T
- BL factor 10 N / A
- Diaphragm material PM4
CONSTRUCTIVE DETAILS:
- External diameter 120 mm 4.72 in
- Depth 49 mm 1.93 in
- Mounting Four M6 threaded holes. 90 degrees apart on 101.6 mm (4 in) diameter circle.
- Mounting hardware is supplied
- Net weight 1.9 kg 4.18 lb
- Total weight 2.1 kg 4.63 lb
- Magnet Neodymium
Detailed specifications unavailable, please EMAIL the sales office for additional information.
