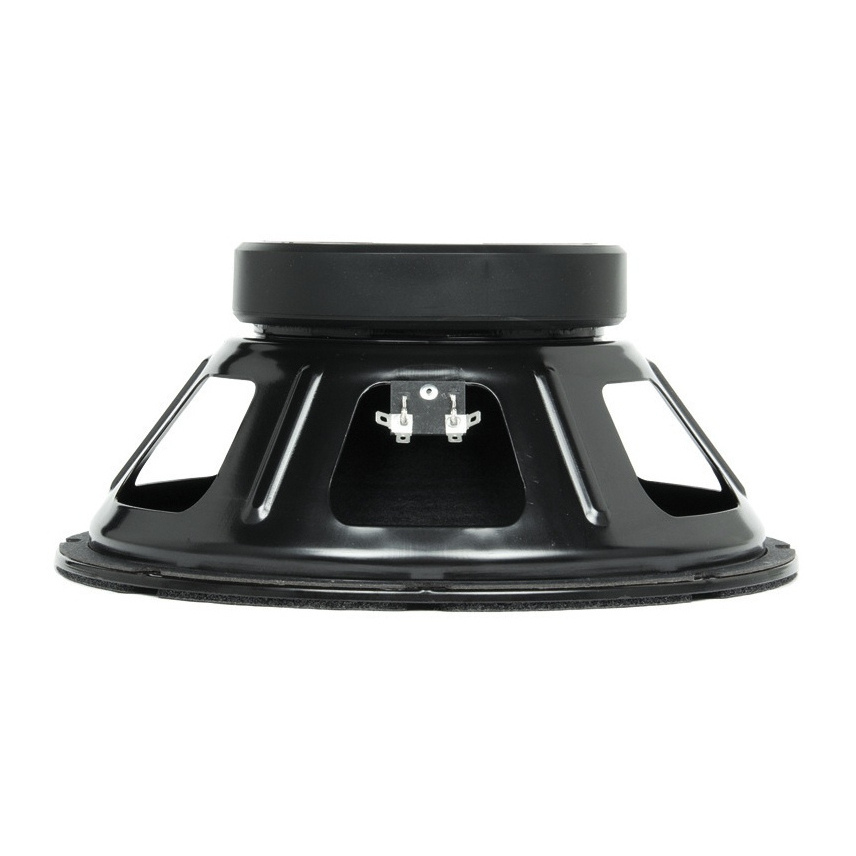

Eminence - The Tonker 150W 12" 8 Ohm Guitar Speaker

150W 12" 8 ohm - Red Coat Series - A very fat clean and warm tone through the mid range, alongside a smooth top end.
Product Code: EMIREDTONK Brand: Eminence Model: THE TONKER
Eminence - The Tonker 150W 12 inch 8 Ohm Guitar Speaker
£93.84
£93.84 ex VAT
Decrease Increase
Quantity Discounts
2-3£92.43 ea.
4-7£91.02 ea.
8+£89.15 ea.
2
IN STOCK
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Eminence - The Tonker 150W 12" 8 Ohm Guitar Speaker

Impedance: 8 ohms

Usable frequency range: 70Hz - 5.5kHz

Shipping Weight: 5.2Kg



A hard hitting 12" speaker with British flavour and a good harmonic balance. The Eminence Tonker guitar speaker brings the pub to any club. A very fat, clean and warm tone through the mid-range, smooth top end. Carries the day, from English Rock to Tele Twang.

Specifications:

  • Nominal Basket Diameter: 12", 304.8mm
  • Nominal Impedance*:8 ohms
  • Power Rating, Watts: 150W
  • Music Program N/A
  • Resonance: 89Hz
  • Usable Frequency Range: 70Hz - 5.5kHz
  • Sensitivity: 102dB
  • Magnet Weight: 59 oz.
  • Gap Height: 0.31", 7.92mm
  • Voice Coil Diameter: 2", 50.8mm


Thiele & Small Parameters:

  • Resonant Frequency (fs): 89Hz
  • DC Resistance (Re): 7.36 Ohms
  • Coil Inductance (Le): 0.47mH
  • Mechanical Q (Qms): 10.02
  • Electromagnetic Q (Qes):0.49
  • Total Q (Qts): 0.47
  • Compliance Equivalent Volume (Vas): 34.1 liters / 1.2 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd): 42cc
  • Mechanical Compliance of Suspension (Cms): 0.09mm/N
  • BL Product (BL): 17.4 T-M
  • Diaphragm Mass Inc. Airload (MMs): 36 grams
  • Efficiency Bandwidth Product (EBP): 181
  • Maximum Linear Excursion (Xmax): 0.8mm
  • Surface Area of Cone (Sd): 519.5 cm2
  • Maximum Mechanical Limit (Xlim): N/A


Mounting Information:

  • Recommended Enclosure Volume: Sealed, Acceptable; Vented - Acceptable
  • Driver Volume Displaced: 137.3 cu.in. / 2.25 liters
  • Overall Diameter: 12.02", 305.3mm
  • Baffle Hole Diameter: 10.97", 278.6mm
  • Front Sealing Gasket: Fitted as standard
  • Rear Sealing Gasket: Fitted as standard
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 11.63", 295.4mm
  • Depth: 5.2", 132mm
  • Net Weight: 11.1 lbs, 5 kg
  • Shipping Weight: 13.2 lbs, 6 kgs


Materials of Construction:

  • Coil Construction: Copper voice coil
  • Coil Former: Polyimide former
  • Magnet Composition: Ferrite magnet
  • Core Details: Non-vented core
  • Basket Material: Pressed steel basket
  • Cone Composition: Paper Cone
  • Cone Edge Composition: Paper cone edge
  • Dust Cap Composition: Zurette dust cap
