Technical specifications

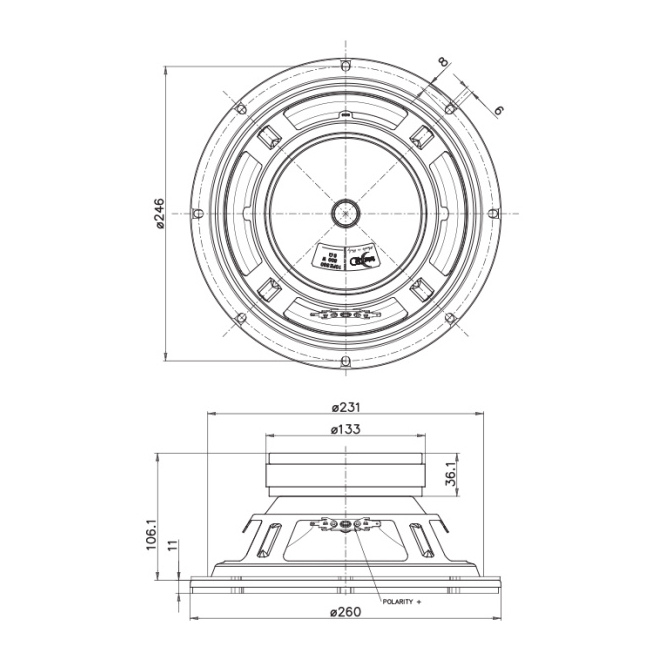

• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 260 mm (10.24 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 233 mm (9.17 in)
• Overall Depth: 110 mm (4.33 in)
• Flange/Gasket Thickness: 7 mm (0.28 in)
• Impedance: 8 ohm
• Minimum Impedance: 6.1 ohm
• AES Power: 250 W
• Program Power: 500 W
• Sensitivity: 92 dB
• Frequency Range: 35:4000 kHz
• Voice Coil Diameter: 52 mm (2.05 in)
• Voice Coil Material: Al
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 19.3 mm (0.76 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Surround Type: Half Roll
• Spider Profile: 1x variable height waves
• Chassis Material: Steel
• Magnet Material: Ferrite Ring
• Demodulating Ring: No
• Flux Density: 1.1 T
• Driver Displacement Volume: 1.4 L (0.049 ft^3)

Thiele and small parameters

• Resonance (Fs) - 35 Hz
• DC Resistance (Re) - 5.3 Ohm
• Electrical Q (Qes) - 0.43
• Mechanical Q (Qms) - 6.7
• Total Q (Qts) - 0.40
• Compliance Equivalent Volume (Vas) - 72.4 L
• Diaphragm Area (Sd) - 382 cm²
• Maximum Linear Excursion (Xmax) - 8.32 mm
• Maximum Mechanical Excursion (Xdamage) - 13.6 mm
• Moving Mass - System (Mms) - 58.2 g
• Force Factor (BL) - 12.6 Tm
• Voice Coil Inductance (Le) - 1.1 mH
• Moving Mass - Diaphragm (Mmd) - 49.8 g
• Compliance (Cms) - 0.36 mm/N
• Mechanical Resistance (Rms) - 1.9 Kg/s
• Reference Efficiency (Eta Zero) - 0.70 %
• Efficiency Bandwidth Product (EBP) - 82

Shipping Information

• Net Weight: 3.47 kg (7.7 lb)
• Shipping Weight: 4.0 kg (8.8 lb)
• Shipping Box: 282 x 280 x 155 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
