Technical specifications

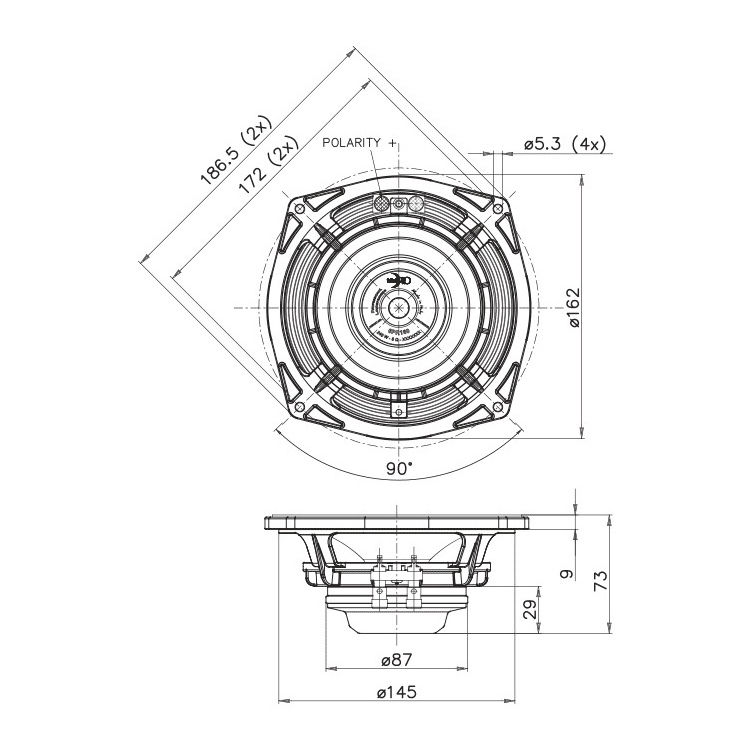

• Nominal Diameter: 160 mm (6in)
• Overall Diameter: 186.5/162 mm (7.34/6.37in)
• Bolt Circle Diameter: 172 mm (6.77in)
• Baffle Cutout Diameter: 147 mm (5.79in)
• Overall Depth: 73 mm (2.87in)
• Flange/Gasket Thickness: 9 mm (0.35in)
• Impedance: 8 ohm
• Minimum Impedance: 7 ohm
• AES Power: 120 W
• Program Power: 240 W
• Sensitivity: 95 dB

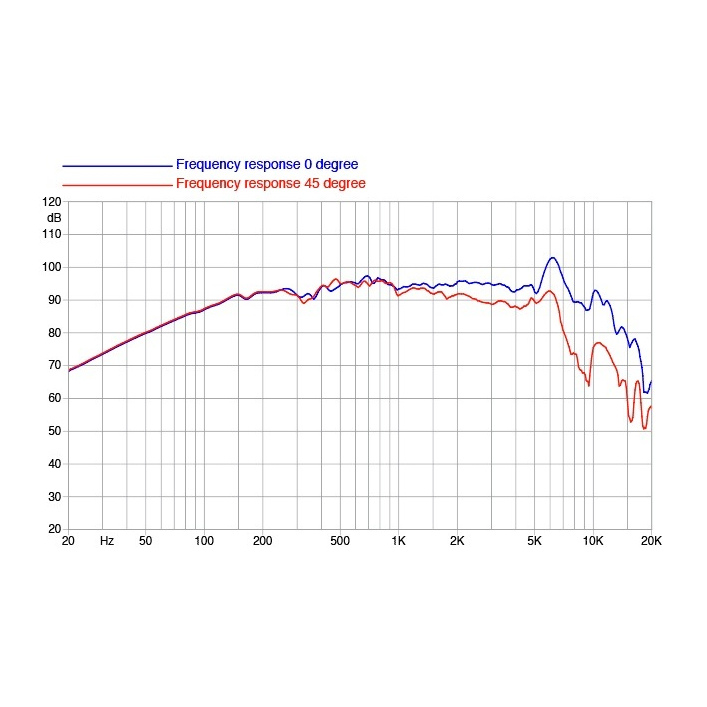

• Frequency Range: 80:8000 Hz
• Voice Coil Diameter: 37 mm (1.46in)
• Voice Coil Material: Al
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 12 mm (0.47in)
• Magnetic Gap Depth: 6 mm (0.24in)
• Surround Type: Triple
• Spider Profile: 1x constant height waves
• Chassis Material: Aluminum
• Magnet Material: Neodymium Ring
• Demodulating Ring: Aluminum Ring
• Flux Density: 1.6 T
• Driver Displacement Volume: 0.37 L (0.013ft^3)

Thiele and small parameters

• Resonance (Fs) - 90 Hz
• DC Resistance (Re) - 5.9 Ohm
• Electrical Q (Qes) - 0.35
• Mechanical Q (Qms) - 6.6
• Total Q (Qts) - 0.33
• Compliance Equivalent Volume (Vas) - 5.9 L
• Diaphragm Area (Sd) - 130 cm²
• Maximum Linear Excursion (Xmax) - 5.00 mm
• Maximum Mechanical Excursion (Xdamage) - 11.6 mm
• Moving Mass - System (Mms) - 12.5 g
• Force Factor (BL) - 11 Tm
• Voice Coil Inductance (Le) - 0.28 mH
• Moving Mass - Diaphragm (Mmd) - 10.8 g
• Compliance (Cms) - 0.25 mm/N
• Mechanical Resistance (Rms) - 1.1 Kg/s
• Reference Efficiency (Eta Zero) - 1.21 %
• Efficiency Bandwidth Product (EBP) - 261

Shipping Information

• Net Weight: 1 kg (2.2lb)
• Shipping Weight: 1.1 kg (2.4lb)
• Shipping Box: 190 x 185 x 103 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
