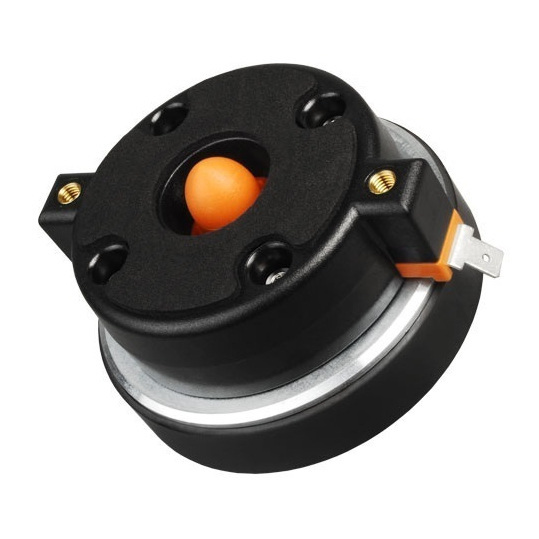

Faital Pro HF100 1" Compression Driver 30W 8 Ohm
Nominal Specifications
- Throat Diameter - 25.4 mm (1 in)
- Overall Diameter - 108 mm (4.02 in)
- 180° Mounting Holes Diameter (2xM6) - 76 mm (2.99 in)
- Depth - 55 mm (2.17 in)
- Net Weight - 830 g (1.8 lb)
- Shipping Box - 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in)
- Shipping Weight - 862 g (1.90 lb)
Technical specifications
- Throat Diameter: 25.4 Inches (1 in)
- Exit Angle: 9 °
- Overall Diameter: 108 mm (4.02 in)
- Mounting Holes Diameter: 76 mm (180° 2xM6)
- Overall Depth: 55 mm (2.17 in)
- Impedance: 8 ohm
- Minimum Impedance: 7 ohm
- AES Power: 30 W
- Program Power: 60 W
- DC Resistance: 6 ohm
- Sensitivity: 108 dB
- Frequency Range: 1.5:20 kHz
- Voice Coil Diameter: 25 mm (0.98 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 1.7 mm (0.07 in)
- Magnetic Gap Depth: 2 mm (0.08 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Dome
- Phase Plug Design: Radial
- Magnet Material: Ferrite Ring
- Flux Density: 1.7 T
- Driver Displacement Volume: 0.25 L (0.009 ft^3)
- Minimum Crossover Frequency: 2 kHz
Shipping Information
- Net Weight: 830 kg (1.8 lb)
- Shipping Weight: 862 kg (1.90 lb)
- Shipping Box: 147 x 130 x 82 mm
