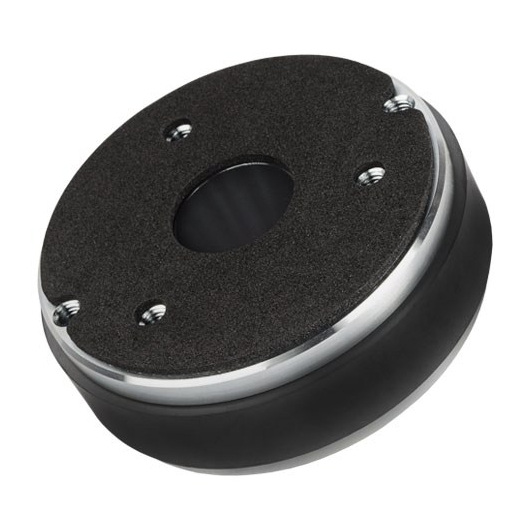

Faital Pro HF111 40W 8 Ohm 1" Bolt On Compression Driver
Click here to request product information for this item
Technical specifications
- Throat Diameter: 25.4 Inches (1 in)
- Exit Angle: 18 °
- Overall Diameter: 90 mm (3.54 in)
- Mounting Holes Diameter: 76 mm (180° 2xM5)
- Overall Depth: 47 mm (1.85 in)
- Impedance: 8 ohm
- Minimum Impedance: 6.6 ohm
- AES Power: 40 W
- Program Power: 80 W
- DC Resistance: 5.5 ohm
- Sensitivity: 107 dB
- Frequency Range: 2:20 kHz
- Voice Coil Diameter: 37 mm (1.46 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 2.2 mm (0.09 in)
- Magnetic Gap Depth: 2.4 mm (0.09 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Dome
- Phase Plug Design: Annular
- Magnet Material: Ferrite Ring
- Flux Density: 1.6 T
- Driver Displacement Volume: 0.225 L (0.008 ft^3)
- Minimum Crossover Frequency: 2 kHz
Shipping Information
- Net Weight: 1.3 kg (2.9 lb)
- Shipping Weight: 1.3 kg (2.9 lb)
- Shipping Box: 147 x 130 x 82 mm
| Other Faital Pro products similar to Faital Pro HF111 40W 8 Ohm 1" Bolt On Compression Driver: |
|
||
|
|
Faital Pro HF111 40W 8 Ohm 1" Bolt On Compression Driver PDF data sheet (155 kb)
View Faital Pro website for more information for Faital Pro HF111
