Faital Pro HF1460 1.4" Compression Driver 120 W 8 Ohm
Nominal Specifications
- Throat Diameter - 35.8 mm (1.4 in)
- Overall Diameter - 120 mm (4.7 in)
- 90° Mounting Holes Diameter (4xM6) - 102 mm (4.02 in)
- Depth - 65 mm (2.6 in)
- Net Weight - 2.0 kg (4.5 lb)
- Shipping Box(Single carton box) - 185 x 170 x 102 mm (7.3 x 6.7 x 4.0 in)
- Shipping Weight - 2.1 kg (4.6 lb)
Technical specifications
- Throat Diameter: 35.8 Inches (1.4 in)
- Exit Angle: Cylindrical °
- Overall Diameter: 120 mm (4.7 in)
- Mounting Holes Diameter: 102 mm (90° 4xM6)
- Overall Depth: 65 mm (2.6 in)
- Impedance: 8 ohm
- Minimum Impedance: 7 ohm
- AES Power: 120 W
- Program Power: 240 W
- DC Resistance: 5.6 ohm
- Sensitivity: 109 dB

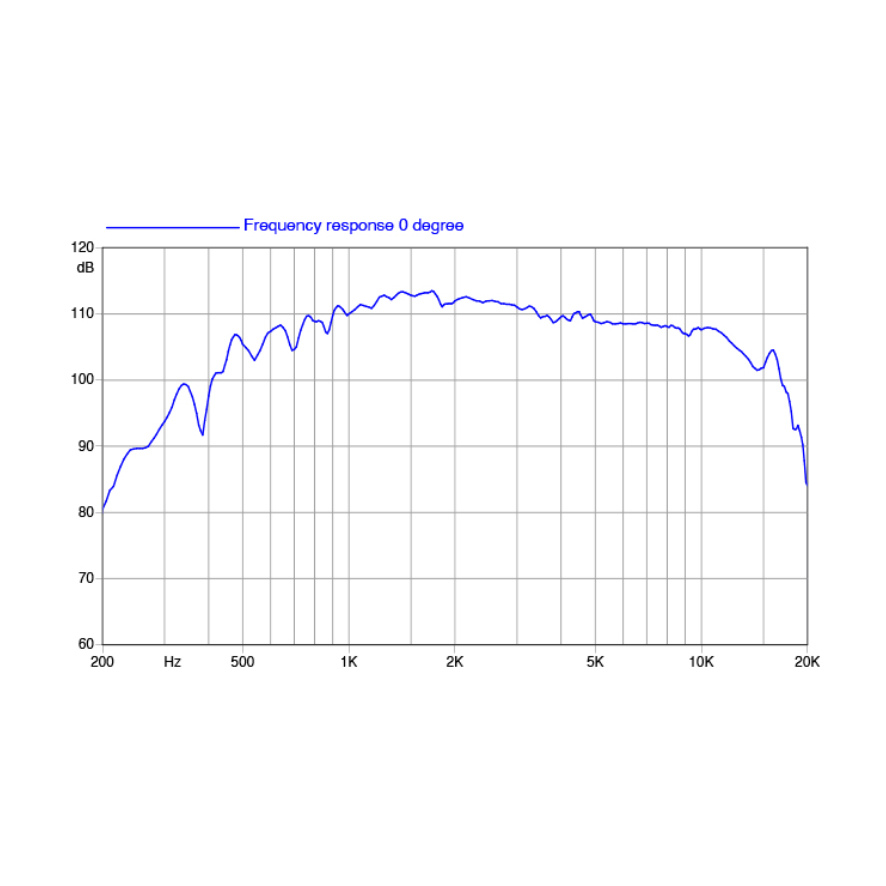

- Frequency Range: 0.6:18 kHz
- Voice Coil Diameter: 86 mm (3.4 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 3.4 mm (0.13 in)
- Magnetic Gap Depth: 4 mm (0.16 in)
- Diaphragm Material: Carbon
- Diaphragm Shape: Dome
- Phase Plug Design: Annular
- Magnet Material: Neodymium Ring
- Flux Density: 2.2 T
- Driver Displacement Volume: 0.65 L (0.023 ft^3)
- Minimum Crossover Frequency: 1 kHz
Shipping Information
- Net Weight: 2.0 kg (4.5 lb)
- Shipping Weight: 2.1 kg (4.6 lb)
- Shipping Box: 185 x 170 x 102 mm
