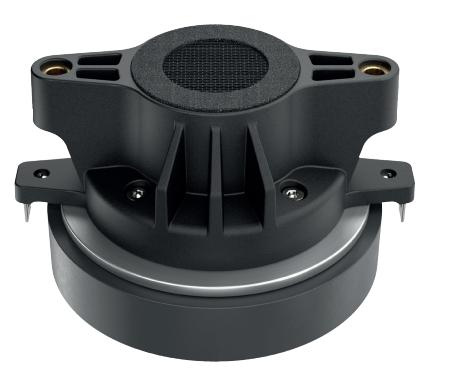

Lavoce DF10.103M 1" Compression Driver 25W 8 Ohm

Technical specifications

• Throat Diameter: 25.4 mm (1 in)
• Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power: 25 W
• Program Power: 50 W
• Sensitivity: 109 dB
• Frequency Range: 1200 - 20000 Hz
• Voice Coil Diameter: 25.4 mm (1 in)
• Voice Coil Material: CCAW
• Voice Coil Former: Kapton
• Voice Coil Inductance: 0.035 mH
• Diaphragm Material: Polyester
• Surround Material: Polyester
• Magnet Material: Ferrite
• Magnet Diameter: 85 mm (3.35 in)
• Flux Density: 1.75 T
• Driver Displacement Volume: 0.2 l (0.007 ft³)
• Recommended Crossover: 1.9 kHz

Shipping Information

• Multipack weight: 16.8 kg (37lb)
• Multipack size W x D x H: 411 x 375 x 188 mm (16.2 x 14.8 x 7.4in)
• Net weight: 0.82 kg (1.8lb)
• Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
