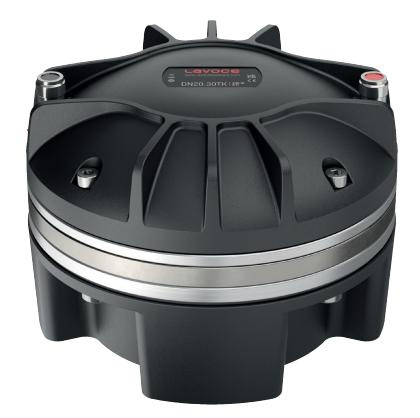

Lavoce DN20.30TK 2" Compression Driver 110W 8 Ohm

Technical specifications

• Throat Diameter: 50 mm (2 in)
• Impedance: 8 Ohm
• Minimum Impedance: 8 Ohm
• AES Power: 110 W
• Program Power: 220 W
• Sensitivity: 108 dB
• Frequency Range: 500 - 20000 Hz
• Voice Coil Diameter: 75 mm (3 in)
• Voice Coil Material: Edgewound CCA
• Voice Coil Former: Kapton
• Voice Coil Inductance: 0.09 mH
• Diaphragm Material: Titanium
• Surround Material: Polyimide
• Magnet Material: Neodymium
• Magnet Diameter: 120 mm (4.7 in)
• Flux Density: 2 T
• Driver Displacement Volume: 0.8 l (0.028 ft³)
• Recommended Crossover: 0.8 kHz

Shipping Information

• Multipack weight: 18.4 kg (40.6lb)
• Multipack size W x D x H: 327 x 285 x 251 mm (12.9 x 11.2 x 9.9in)
• Net weight: 2.1 kg (4.6lb)
• Multipack Quantity: 4

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
