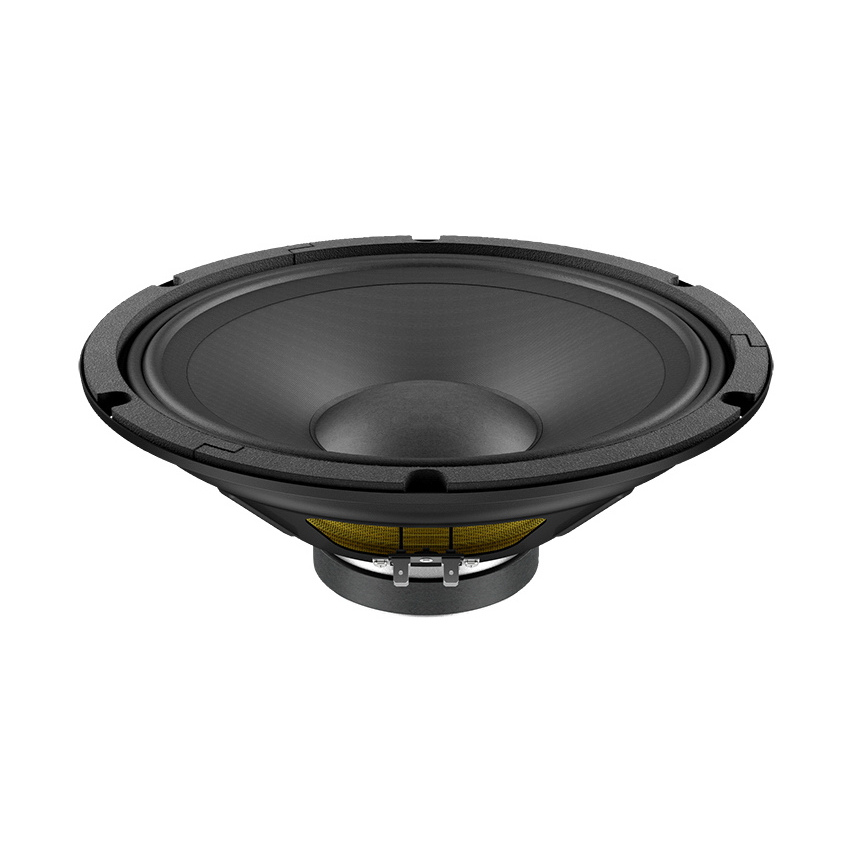

Lavoce LBASS12-15 12" Speaker Driver 100W 8 Ohm

Technical specifications

• Nominal Diameter: 300 mm (12in)
• Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power: 100 W
• Program Power: 200 W
• Sensitivity: 96 dB
• Frequency Range: 40 - 4000 Hz
• Voice Coil Material: Copper
• Voice Coil Former: Glass fiber
• Voice Coil Depth: 13.3 mm (0.52in)
• Magnetic Gap Depth: 8 mm (0.31in)
• Cone Material: Water Proof Treated Paper
• Surround Material: Polycotton
• Chassis Material: Steel
• Magnet Material: Ferrite
• Magnet Dims: 110 x 45 x 17 mm
• Driver Displacement Volume: 1.7 l (0.06ft³)

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.

• DC Resistance (Re) - 5.4 Ohm
• Resonance (Fs) - 38 Hz
• Moving Mass - System (Mms) - 44.3 g
• Compliance (Cms) - 0.39 mm/N
• Force Factor (BL) - 10.0 Tm
• Mechanical Q (Qms) - 3.4
• Electrical Q (Qes) - 0.56
• Total Q (Qts) - 0.48
• Compliance Equivalent Volume (Vas) - 160 L
• Voice Coil Inductance (Le) - 0.7 mH
• Diaphragm Area (Sd) - 535 cm²
• Reference Efficiency (Eta Zero) - 1.5% %
• Maximum Linear Excursion (Xmax) - 4.7 mm
• Maximum Mechanical Excursion (Xmech) - 8.7 mm

Shipping Information

• Net weight: 2.4 kg (5.2lb)
• Multipack size (WxDxH): 356 x 356 x 162 mm (14 x 14 6.4in)
• Multipack weight: 3.5 kg (7.7lb)
